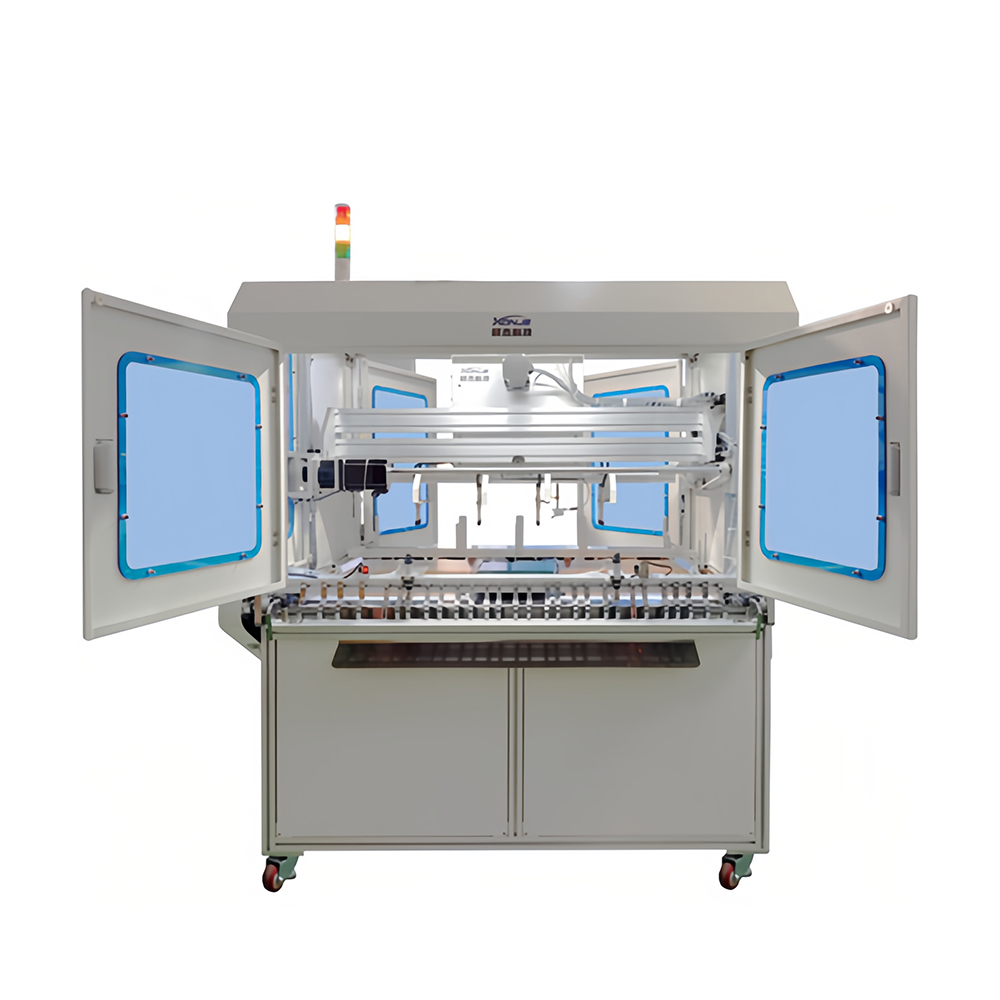

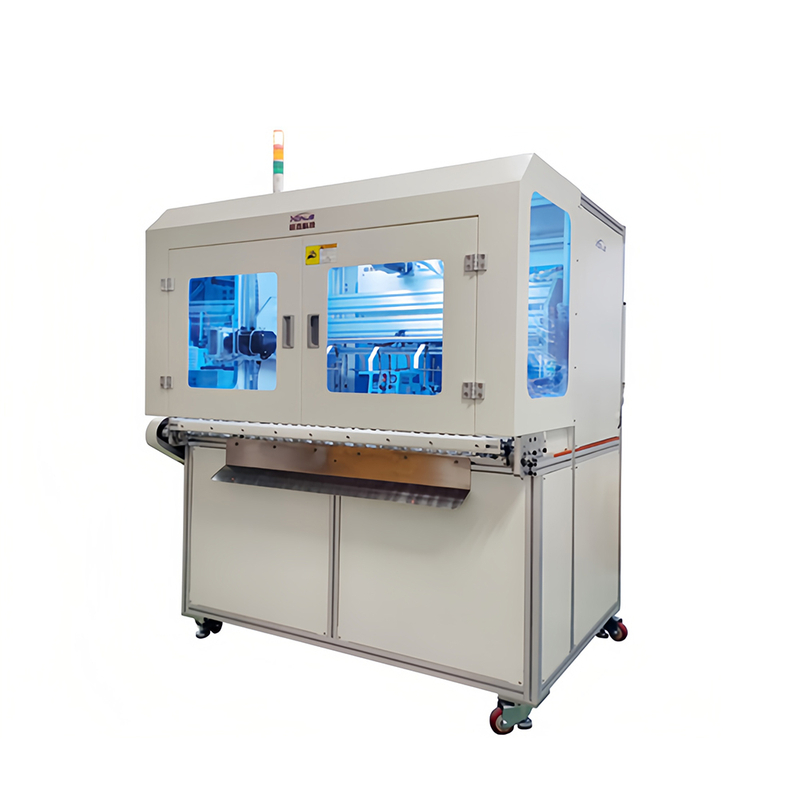

Product Features:
1. Suitable for: LED light strips with light beads, LED light strip panels with lenses crossing V-grooves;
2. Flexible design, adjustable width limit for knife holder and light strip, meeting the requirements of light strip splitting with different lengths, widths, and light bead spacing;
3. The knife holder adopts seamless docking, and the conveyor wheel is wrapped with soft rubber, which will not scratch the lamp beads and products;
4. Folded plate type mechanism design, with good effect in treating rough edges of the split plate;
5. The electrical control part adopts a color human-machine interface and PLC control, with powerful functions;
6. Adopting light curtain sensors and acrylic covers to ensure safety;
7. Floor standing structure with four door design for easy maintenance and loading;
8. The automatic line equipment rack adopts a square welded rack, with sheet metal parts sealed and steel paint painted on the surface;
9. Data monitoring system: startup time monitoring, production capacity monitoring, equipment fault information, and automatic troubleshooting system.
Product Parameter:
Parameter | Specification |
Splitting method | Folded plate type |
Splitting length | 300–1200 mm (customizable) |
Minimum analysis width | 5 mm |
Splitting speed | 1–3 s/pcs |
Plate thickness | 0.6–3.5 mm |
Working air pressure | 0.5–0.7 MPa |
Working voltage | AC 220V |
External conveyor belt | Optional |
Weight | 300 kg |
Overall dimensions | 1550 mm (L) × 1350 mm (W) × 1800 mm (H) |
