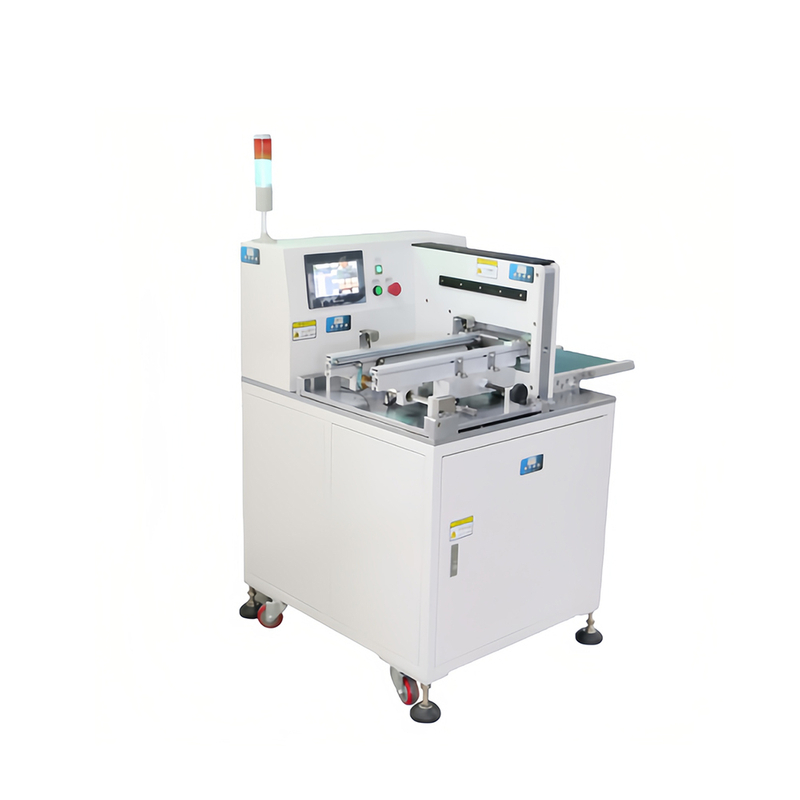

Product Features:
1. It can be connected to an assembly line to achieve fully automatic board splitting without the need for manual board placement. The cut PCB flows out through the assembly line.
2. Replacing products is fast and time-saving, with just switching programs.
3. Microcomputer control, human-machine exchange interface.
4. Multiple security control modes: structural foolproof, light curtain control, and software control.
5. PCB boards with V-CUT are suitable for this machine.
6. Data monitoring system: startup time monitoring, production capacity monitoring, fault monitoring, etc.
7. When cutting, the micro stress on the components is around 200 to avoid tin cracking and prevent damage to precision parts.
8. Splitting work method: feeding the board machine or manually feeding it to the assembly line - the machine divides the board according to the expected program - after the board is divided, the product and waste are sucked into the assembly line for unified transportation.
Product Parameter:
| Parameter | Specification |
| Splitting length | 350 mm |
| Splitting width | 58 × 220 mm |
| Plate thickness | 0.4–6 mm |
| Transmission speed | 1500 mm/s |
| Adjustable movement speed | 1000 mm/s |
| Feeding method | Online transportation guide rail |
| Board output method | ESD belt transmission |
| Working pressure | 0.5–0.7 MPa (dry air source) |
| Voltage | AC 220V, 60 W |
| Weight | 150 kg |
| Boundary dimensions | 1200 mm × 750 mm × 1500 mm |
