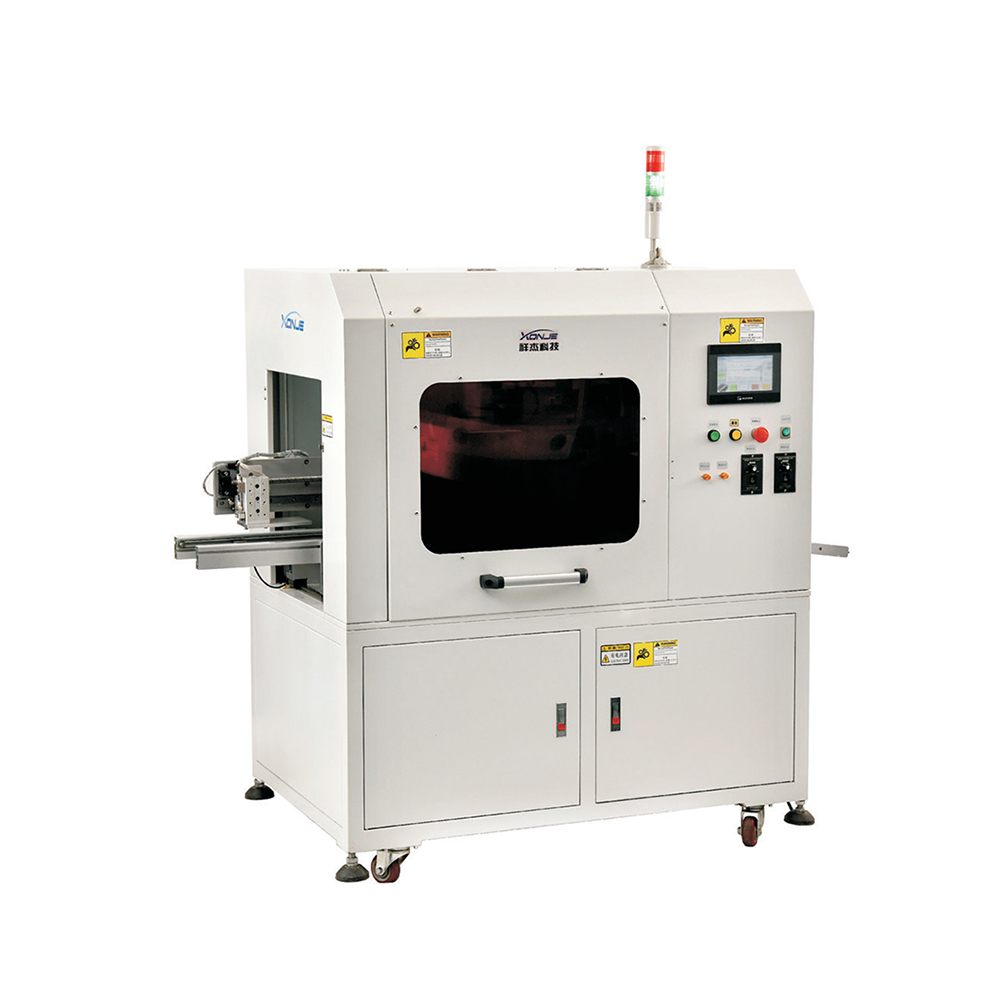

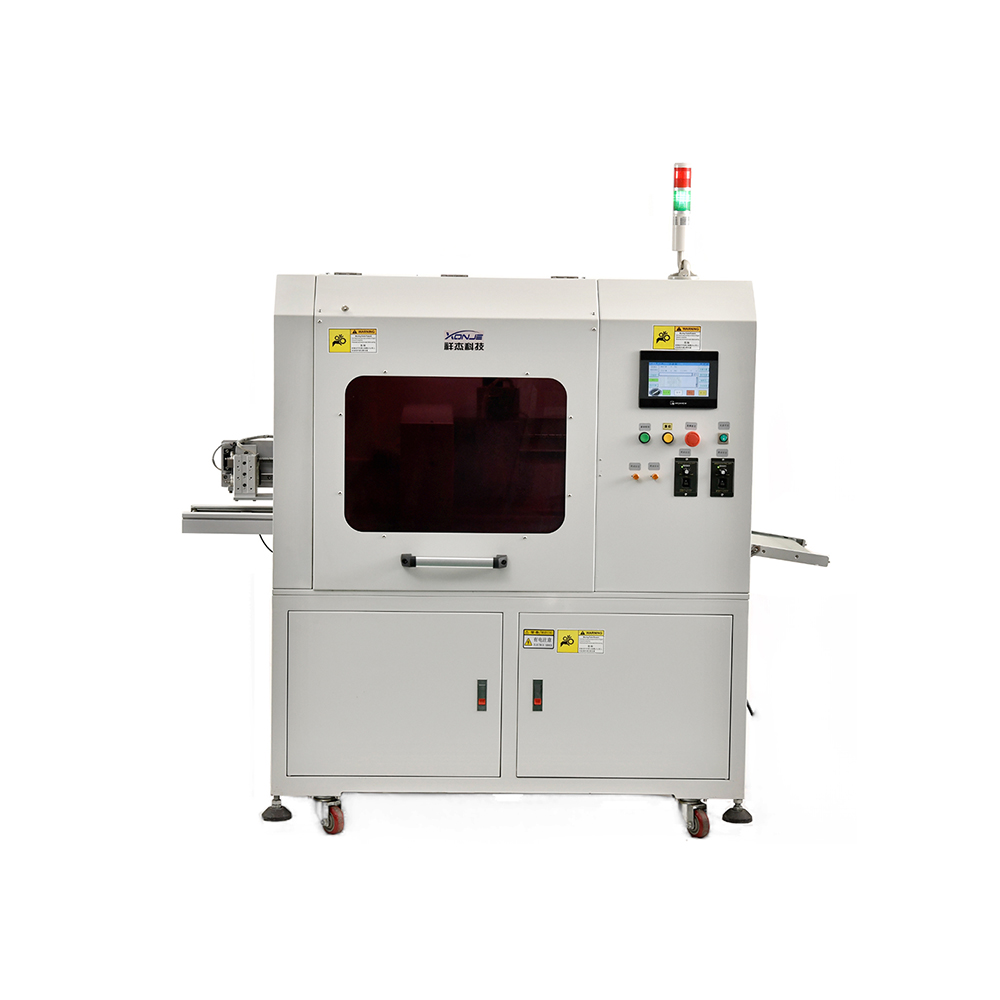

XONJE XJVC-12A Online V-Slot Dual Direction Splitting Machine

Product Features:

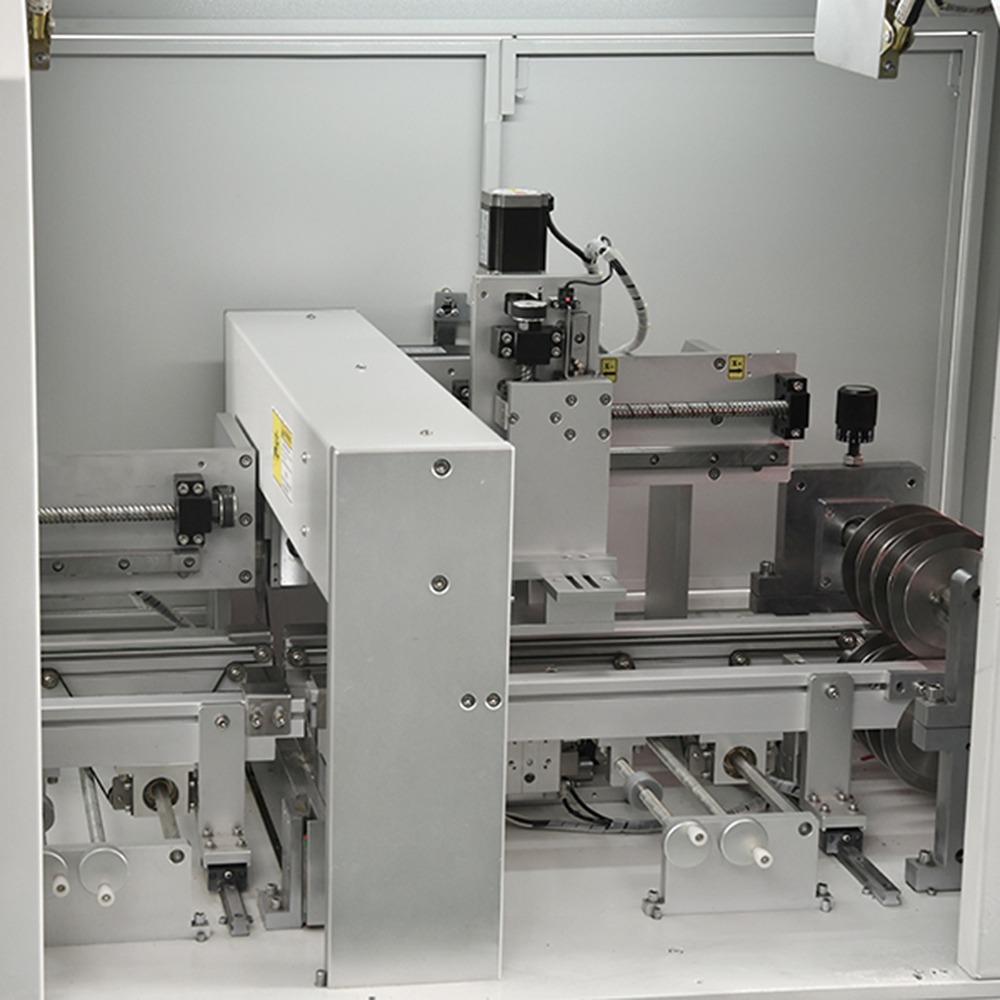

1. The PCBA board is sent out to the predetermined track through the loading mechanism; The transportation track transports the PCBA above the lower straight blade,

Raise the lower straight knife and walk over the upper straight knife to cut in the Y direction; Complete all cutting in the Y direction according to the set cutting position;

2. The PCBA that has been cut in the Y direction is transported through the track flow to multiple sets of knives for one-time cutting in the X direction;

3. The PCBA products that are cut out fall onto the discharge conveyor belt and flow through the conveyor belt into the following station;

4. There is an industrial vacuum cleaner under the machine cutting blade group to remove PCB dust. Work in this cycle;

Note: The cut small PCB boards can be automatically placed in the material box (tray, or directly placed on the assembly line) according to customer requirements and transported by the assembly line;

Product Parameter:
