Product Features:
1. According to different products, the heating speed can be adjusted and 100 sets of parameters can be saved;
2. Special material welding joints ensure that the product is evenly heated under pressure;
3. Equipped with vacuum function, it is easier to adjust alignment for products with thinner welding thickness;
4. Temperature CNC, clear and precise, touch screen operation, Chinese and English display interface, intuitive and clear temperature curve, PLC control, simple operation;
5. Equipped with a digital pressure gauge that can preset the pressure range, using SMC precision guide cylinder, with high pressing accuracy, and can weld products with a pad spacing of 0.5mm;

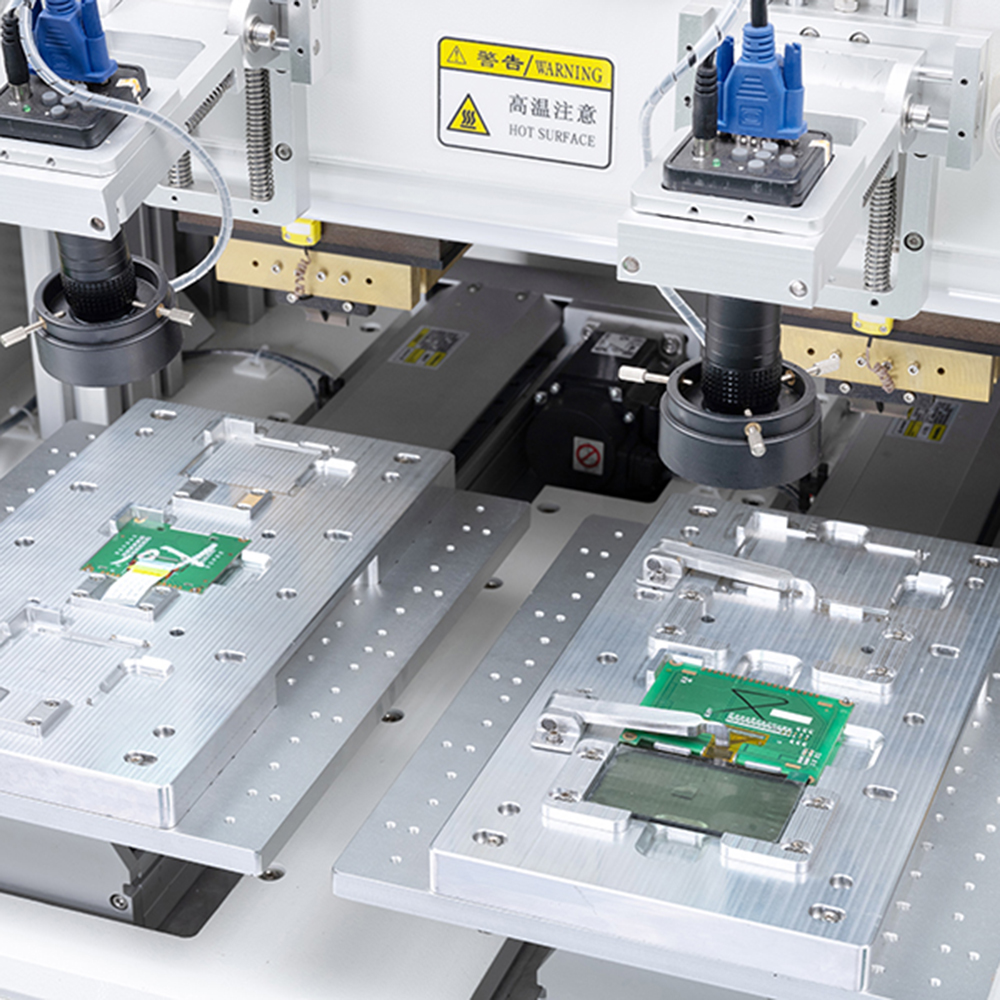

6. Dual platform and dual workstation entry and exit operation, with the left and right workstations relatively independent. One side of the fixture welding, and the other side of the fixture operator picking and placing products, fast and efficient;
7. Equipped with high-definition CCD amplification and high-definition display alignment inspection, to prevent defective products and ensure that the product welding is completely correct;

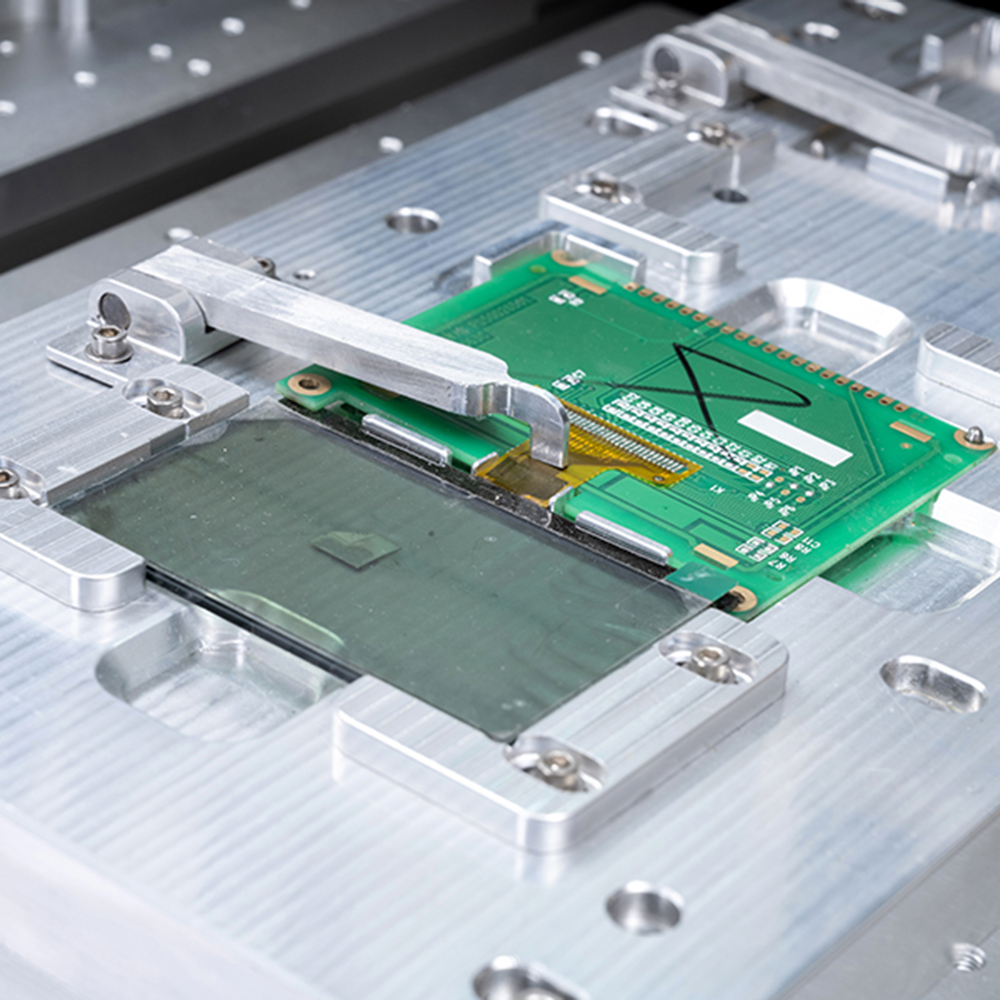

8. Suitable for various high-density TAB, TCP crimping, FPC, FFC, TFT and PCB solder crimping.
Product Parameter:
| Parameter | Specification |
| Positioning fixture | Multiple sets |
| Working position | Double head, multi-station |
| Working area | 250 × 300 mm |
| Temperature accuracy | ±2 °C |
| Temperature setting | 0–500 °C |
| Hot pressing time | 0–99 s |
| Welding head material | Rare metal |
| Working voltage | AC 220V |
| Working pressure | 0.5–0.7 MPa (dry air source) |
| Weight | 250 kg |
| Overall dimensions | 800 mm (L) × 850 mm (W) × 1450 mm (H) |
