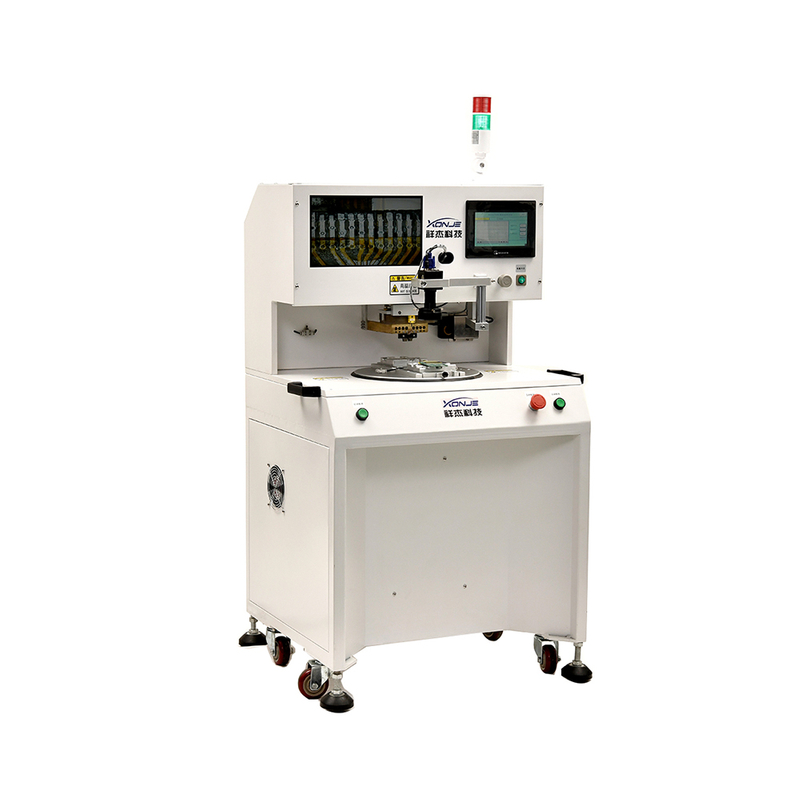

XONJE XJPP-2F Floor Turntable Pulse Welding Machine

Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. The heating rate can be adjusted according to different products.

2. Special material welded joints ensure even product compression.

3. Equipped with vacuum function, it is easier to adjust alignment.

4. Temperature CNC, precision and precision.

5. Equipped with a digital pressure gauge, which can preset the pressure range.

6. Microcomputer control, precise and stable.

7. Programmable curves include preheating and reflow soldering temperatures.

Product Parameter:

Parameter	Specification

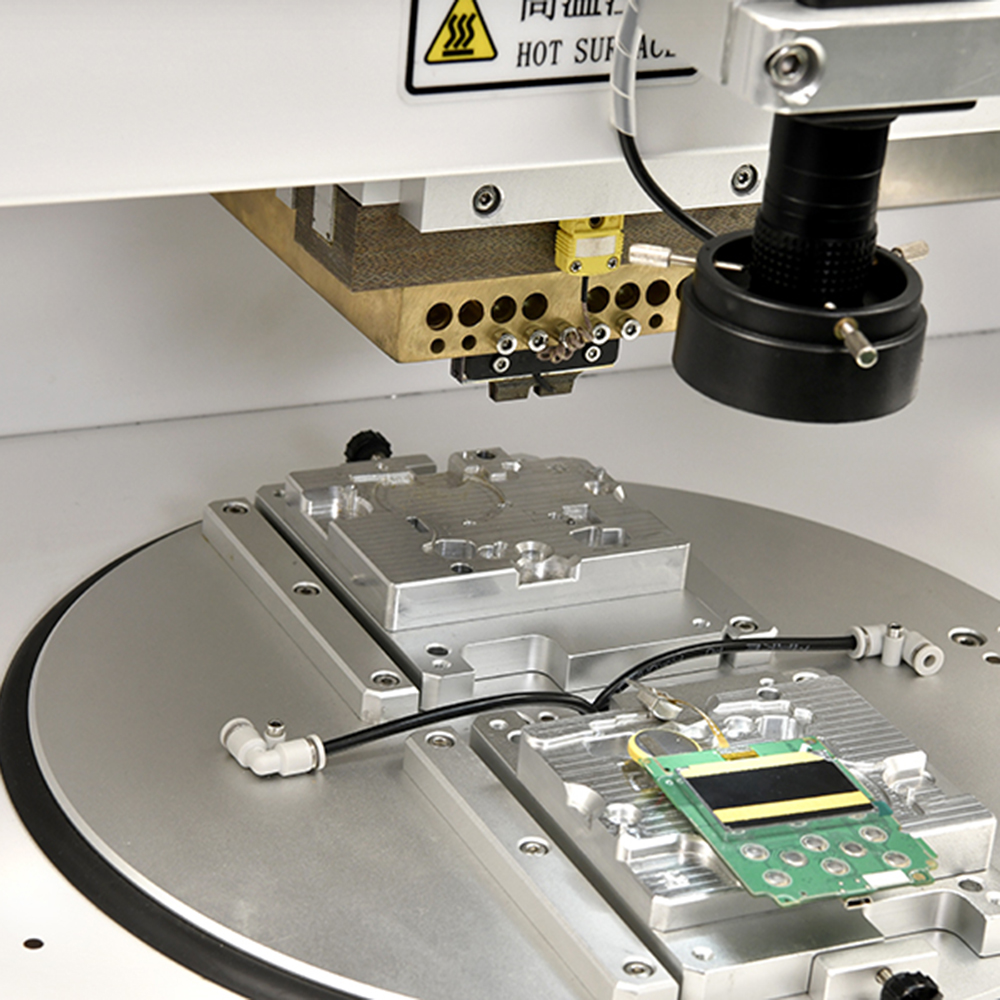

Positioning fixture	2 sets
Working position	Single head, rotating dual station
Working area	200 × 260 mm
Temperature accuracy	±2 °C
Temperature setting	0–500 °C
Hot pressing time	0–99 s
Welding head material	Rare metal
Working voltage	AC 220V
Working pressure	0.5–0.7 MPa (dry air source)
Weight	200 kg
Boundary dimensions	500 mm (L) × 750 mm (W) × 640 mm (H)
