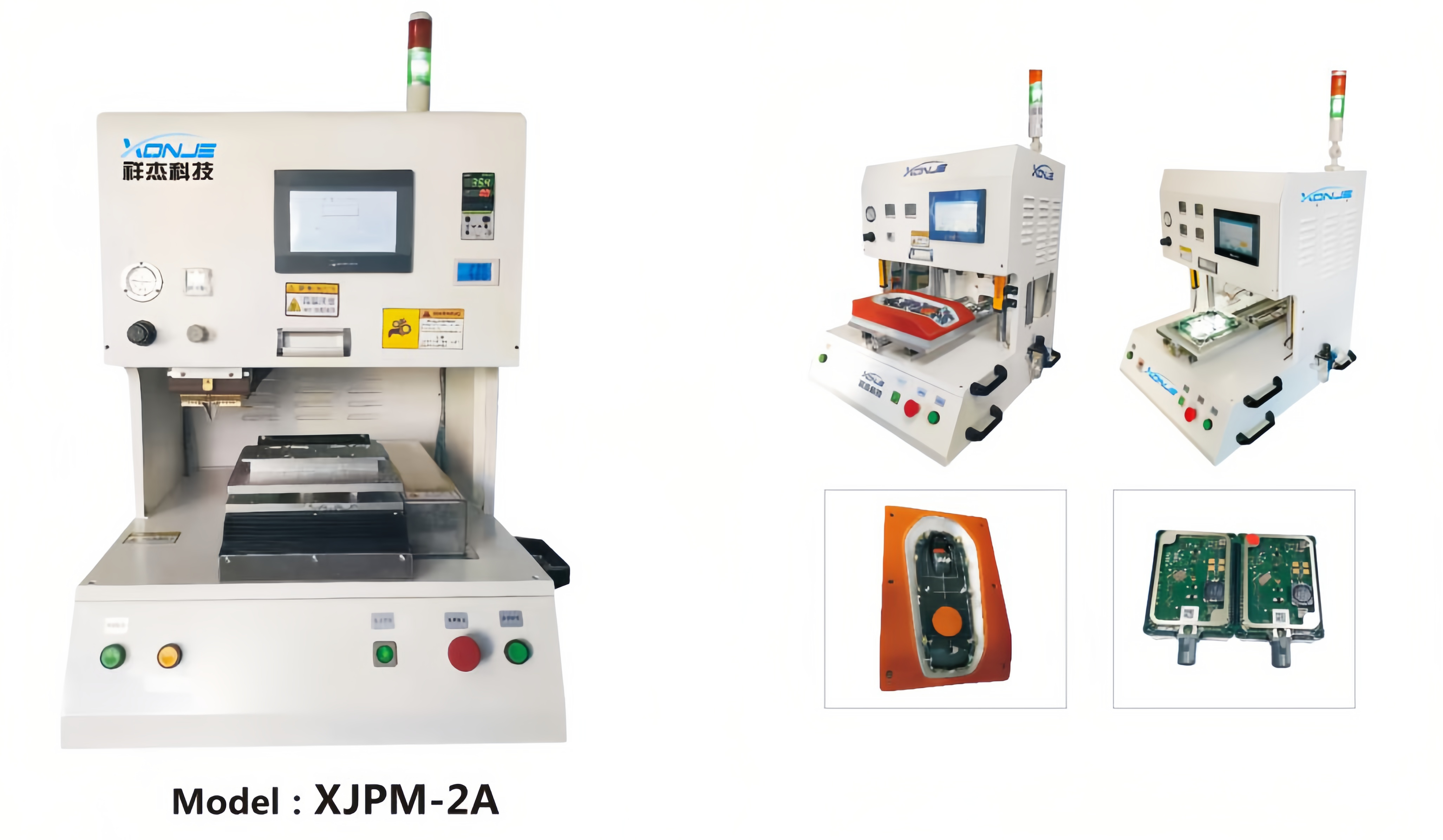

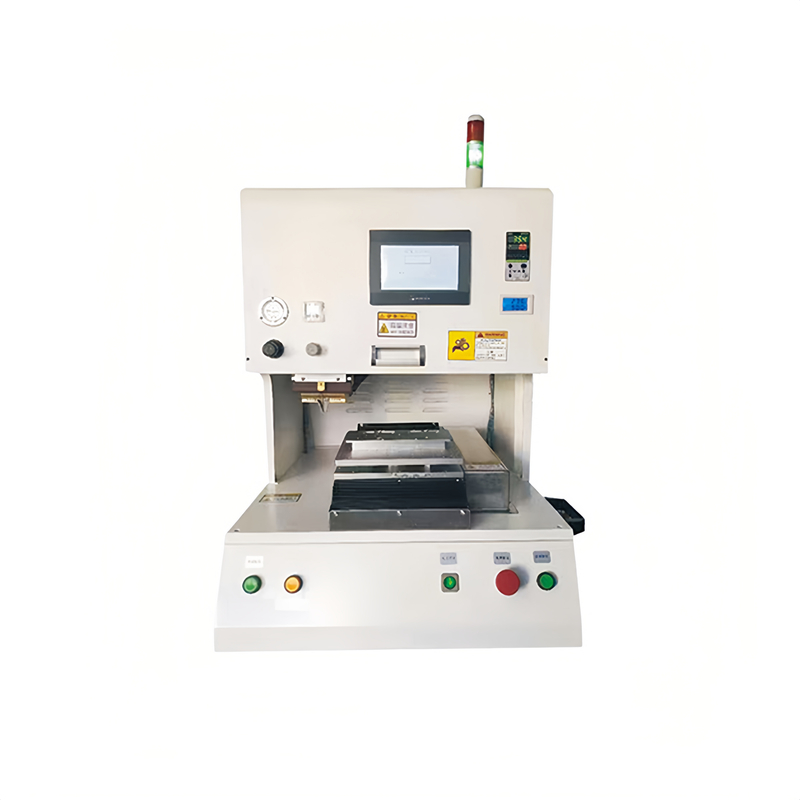

Front view of XONJE XJPM-2A plastic hot riveting machine with touch screen and precision temperature control system

Automatic plastic welding equipment for ABS and PS components with PLC control and digital pressure gauge

XONJE XJPM-2A Plastic Hot Riveting Machine

Suitable for hot riveting welding of various ABS PS plastics. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. The heating rate can be adjusted according to different products;

2. Special material welding joints ensure average product pressure;

3. Equipped with vacuum function, it is easier to adjust alignment;

4. Temperature CNC, clear and precise, touch screen operation, Chinese and English display interface, PLC control, simple operation;

5. Equipped with a digital pressure gauge that can preset the pressure range, using SMC precision guide cylinder, with high pressing accuracy, and can weld products with a pad spacing of 0.5mm;

6. Automatic platform entry and exit, convenient for operators to work quickly;

Product Parameter:

Parameter	Specification
Positioning fixture	1 set
Working area	100 × 130 mm
Temperature accuracy	±2 °C
Temperature setting	0–500 °C
Hot pressing time	0–99 s
Temperature control type	Constant temperature
Working voltage	AC 220V
Working air pressure	0.5–0.7 MPa
Weight	100 kg
Outer opening size	650 mm (L) × 650 mm (W) × 750 mm (H)
