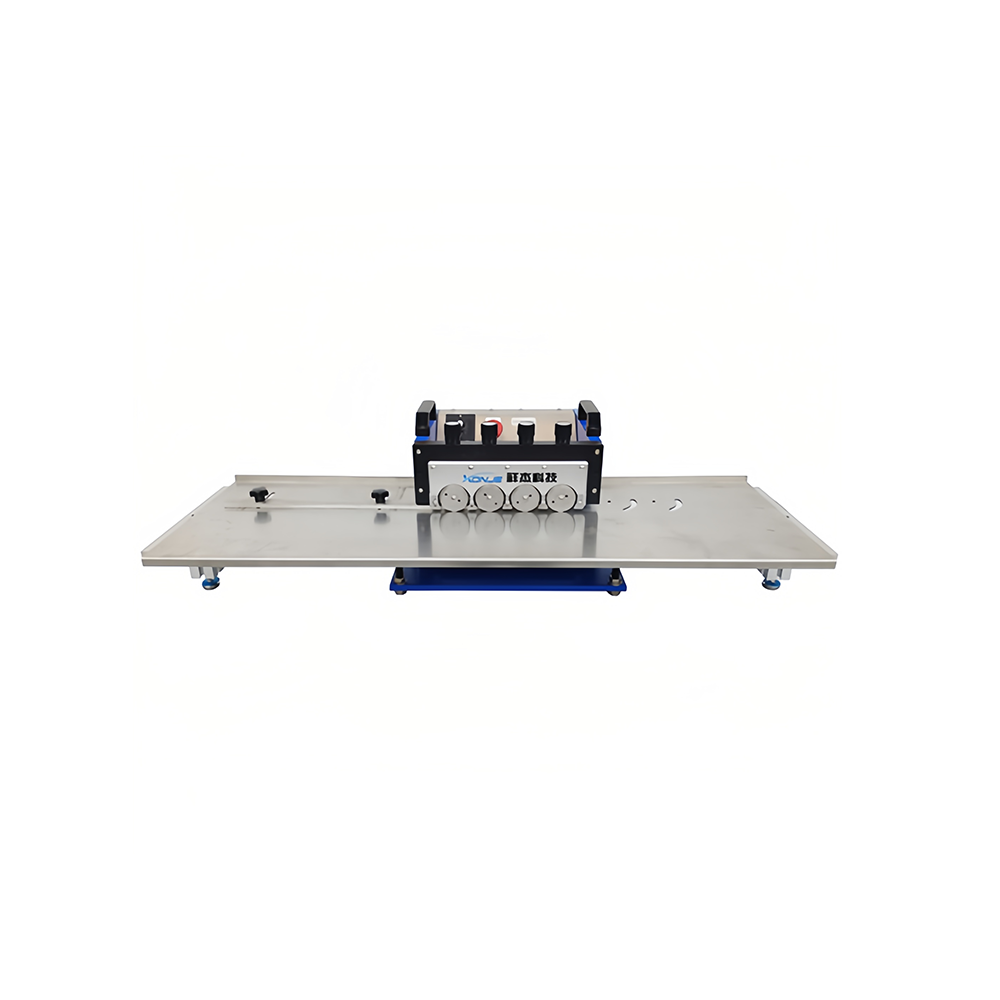

XONJE XJVC-3A LED Light Strip Dividing Machine

Suitable for cutting LED light strips, aluminum substrates, fiberboard, and copper plates. Widely used in industries such as automobiles, LED lighting, computers, home appliances, mobile phones, etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. The structure is simple and easy to use.

2. There are 4 blades on top and 4 blades on the bottom. During the cutting process, the upper round blade is fixed and the lower round blade rotates to cut. The number of blades can be customized.

3. It can be used for cutting Vcuts with narrow spacing, with high efficiency and good segmentation quality.

4. The distance between the upper and lower circular knives can be accurately adjusted based on the depth of the V-groove and tool loss.

5. The cutting speed is controlled by a knob, and baffles are installed on both sides of the circular knife, ensuring high safety.

6. The round knife can be used multiple times for turning and grinding.

Product Parameter:

Parameter	Specification
Splitting length	Unlimited
Splitting speed	0–400 mm/s
Plate thickness	0.6–3.5 mm
Working voltage	220V AC
Weight	45 kg
External dimensions	1000 mm (L) × 520 mm (W) × 280 mm (H)
External dimensions of platform	2400 mm (L) × 520 mm (W) × 280 mm (H)
