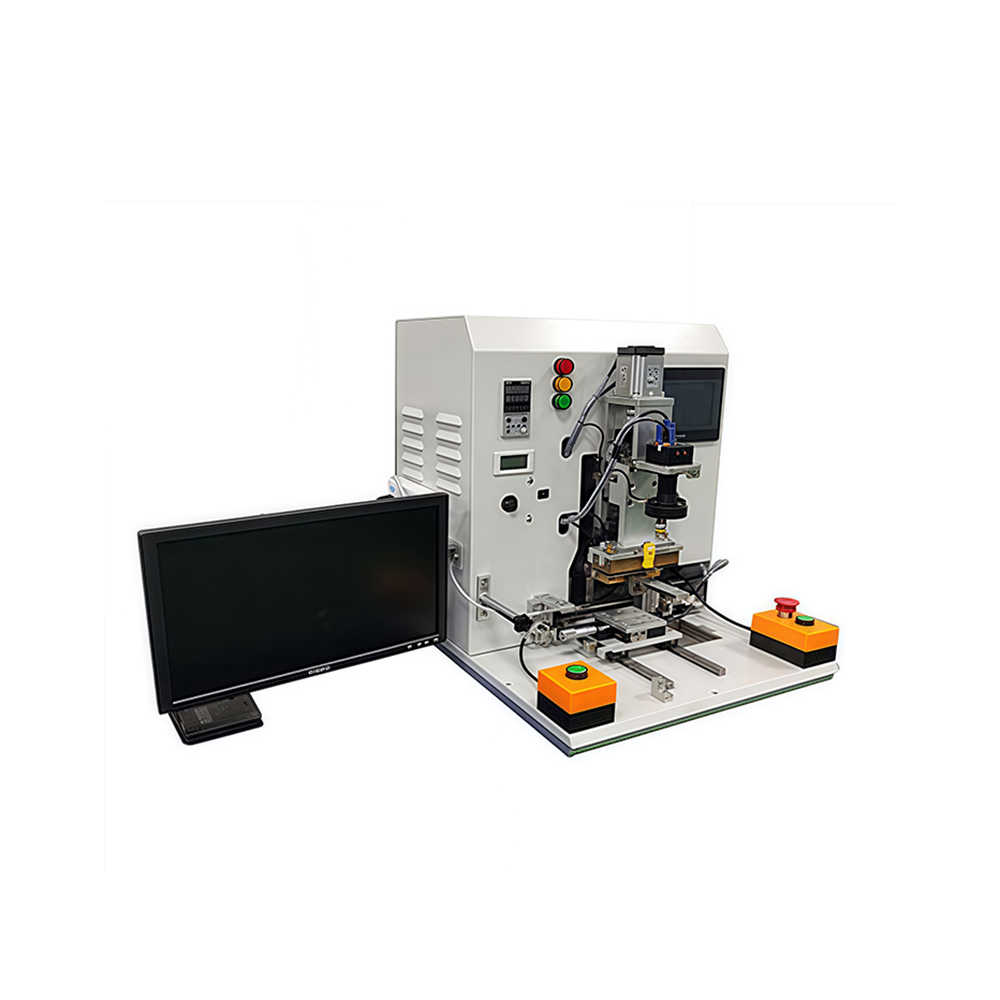

XONJE XJPP-1F Servo Pulse Welding Machine

Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. Temperature CNC, clear and precise;

2. Equipped with a digital pressure switch, which can preset the pressure range;

3. Pressure start timing, more accurate hot pressing time;

4. Unique material welding head ensures even product pressure;

5. Equipped with vacuum function, it is easier to adjust alignment;

Product Parameter:

Parameter	Specification
Positioning fixture	1 set
Working position	Single station servo positioning
Working area	100 × 150 mm
Temperature accuracy	±2 °C
Temperature setting	0–500 °C
Hot pressing time	0–99 s
Welding head material	Rare metal
Working voltage	AC 220V
Working pressure	0.5–0.7 MPa (dry air source)
Weight	65 kg
Overall dimensions	550 mm (L) × 640 mm (W) × 630 mm (H)
