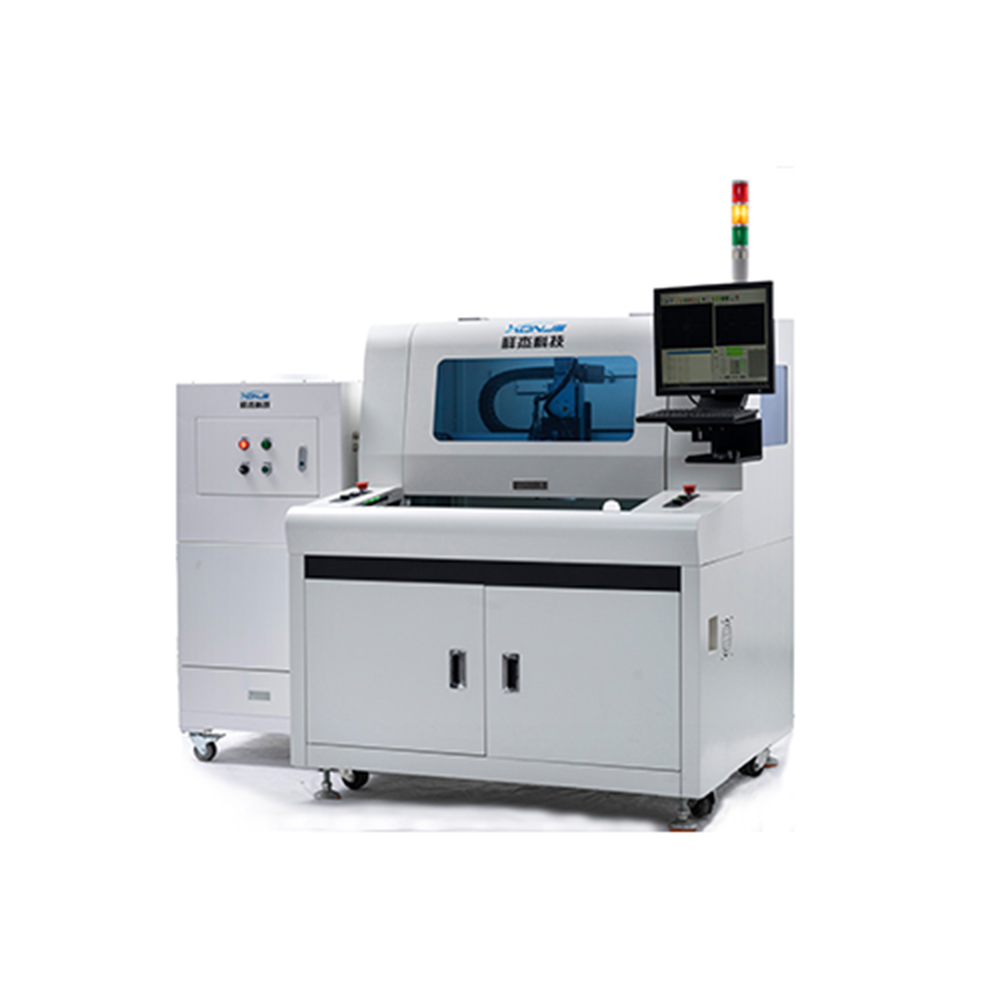

Front view of XONJE XJ-J520 double station automatic PCB saw cutting machine with CCD visual positioning

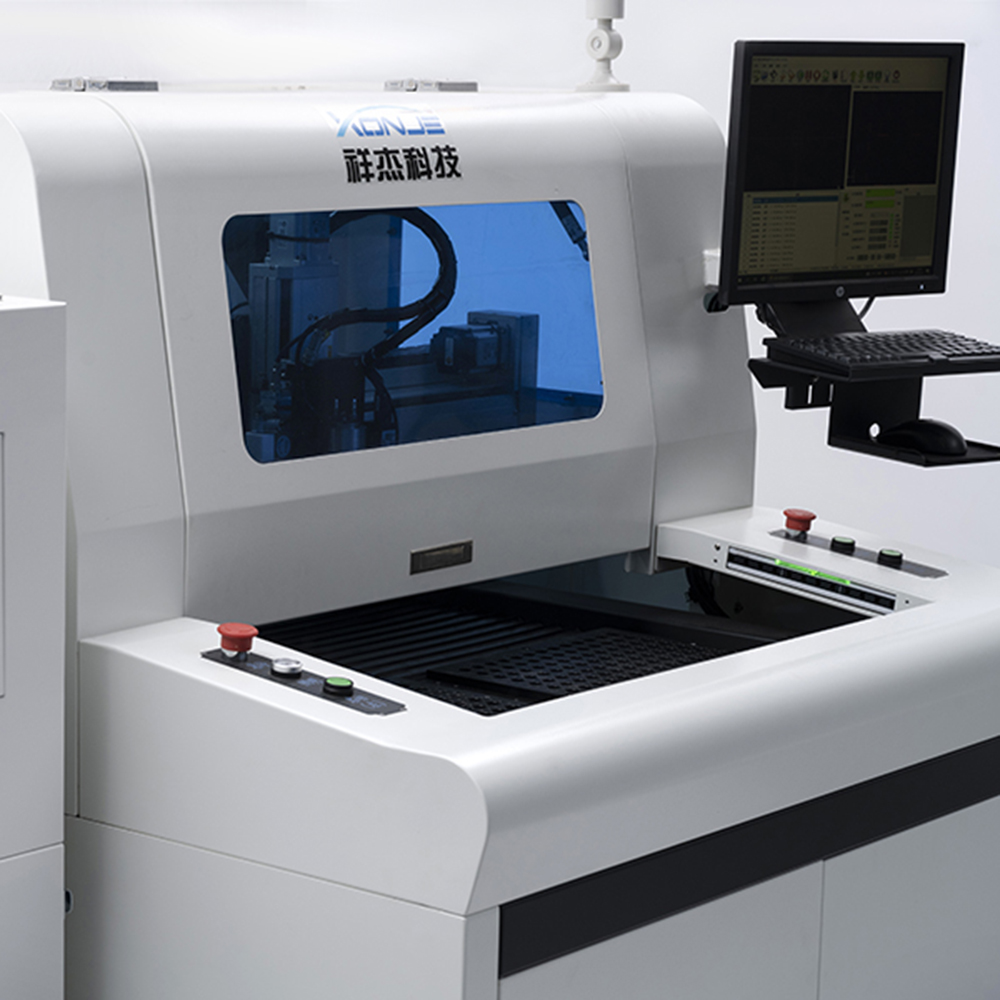

Dual-station saw blade PCB cutting system with vision correction and low-stress precision cutting

XONJE XJ-J520 Double Station Saw Blade Splitting Machine

Suitable for V-slot PCB slitting, especially for PCB slitting of parts across V-slots; Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. No stress cutting, with a sub plate stress of around 200MIC.

2. CCD visual positioning, Mark point correction system.

3. Simple operation and fast programming.

4. The cutting surface is smooth, flat, and bright.

5. Safety grating and two handed button device.

6. Suitable for cutting V-slot PCBs, perfectly solving the problem of cross V-slot splitting of components.

Product Parameter:

Parameter	Specification
Working mode	Offline (manual loading/unloading, automatic segmentation by splitting machine)
Number of workbenches	Single head, dual station, rotatable workbenches
Control method	PC control + servo motor
MES function	Supported (optional)
Scan function	Supported (optional)
Screw guide rail	C5 grinding level
Cutting speed	0–4000 RPM
Plate thickness	0–6 mm
Partition area	300 × 300 mm
Splitting accuracy	±0.1 mm
Dust collection method	Upper suction / 3P
Working voltage	AC 380V
Working pressure	0.4–0.7 MPa
Power	5 kW
Boundary dimensions	1270 mm × 1200 mm × 2850 mm
Weight	700 kg
