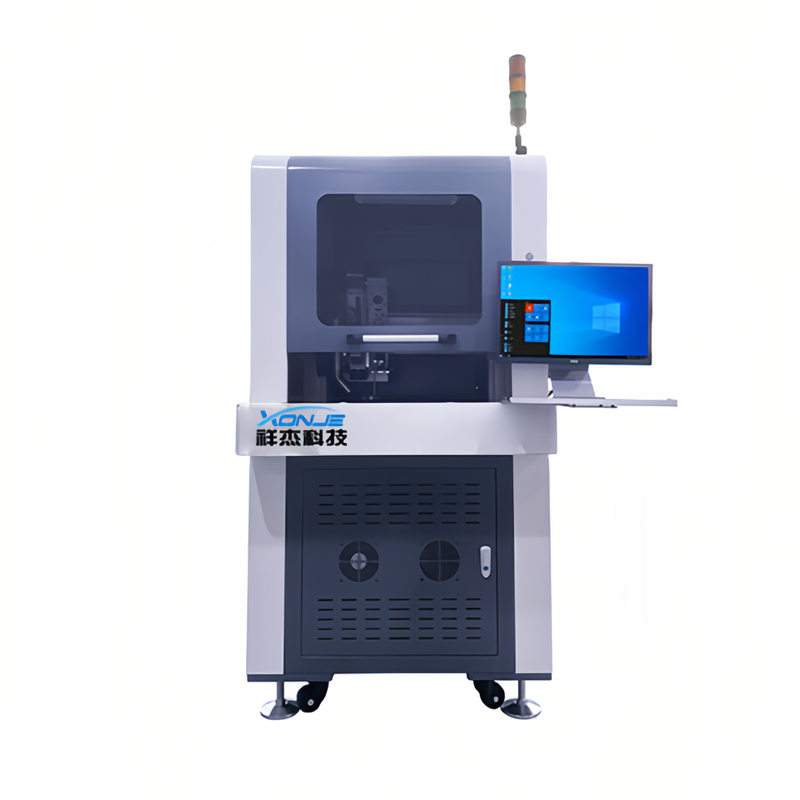

XONJE XJ-JX200 Laser Tin Wire Welding Machine
XONJE XJ-JX200 Laser Tin Wire Welding Machine XONJE XJ-JX200 Laser Tin Wire Welding Machine

loading

XONJE XJ-JX200 Laser Tin Wire Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Applied in the microelectronics industry: hard disk heads, high-definition camera modules, mobile digital camera soft board connection welding, precision voice control devices, data cable solder assembly welding, sensor welding. Welding of high-precision components such as optoelectronic products MEMS, sensors, BGA, HDD (HGA, HSA), mobile communication, digital cameras, camera modules, etc.
SKU:
Availability:
Quantity:

Product Features:

1. The laser power is optional, with a temperature accuracy of plus or minus 2 ℃. By precisely controlling the temperature, the welding effect can be fully grasped and damage to the welded workpiece can be avoided.


2. A high-energy laser beam with a laser wavelength of 915nm, after being focused by an optical system, has a laser focal power density of 104~107W/cm2,


The processed workpiece is heated and melted near the laser focal point, and the occurrence and intensity of the melting phenomenon mainly depend on the material affected by the laser


Surface time, power density, and peak power.


3. Closed loop rack protection with high safety.


4. Rich functionality, flexible combination, modular structure design, and convenient maintenance.


5. High precision servo four axis platform with strong scalability and ultra-high performance.


Product Parameter:

ParameterSpecification
StationDuplex station
Laser power150W
Laser wavelength915 nm
Power cooling methodAir cooling
Tin wire specification0.5–1.5 mm diameter
Repetitive accuracy±0.02 mm
Welding range200 × 200 mm
Welding efficiencyApprox. 1 s/point
Working voltageAC 220V
Weight300 kg
Overall dimensions900 mm (L) × 900 mm (W) × 1700 mm (H)
