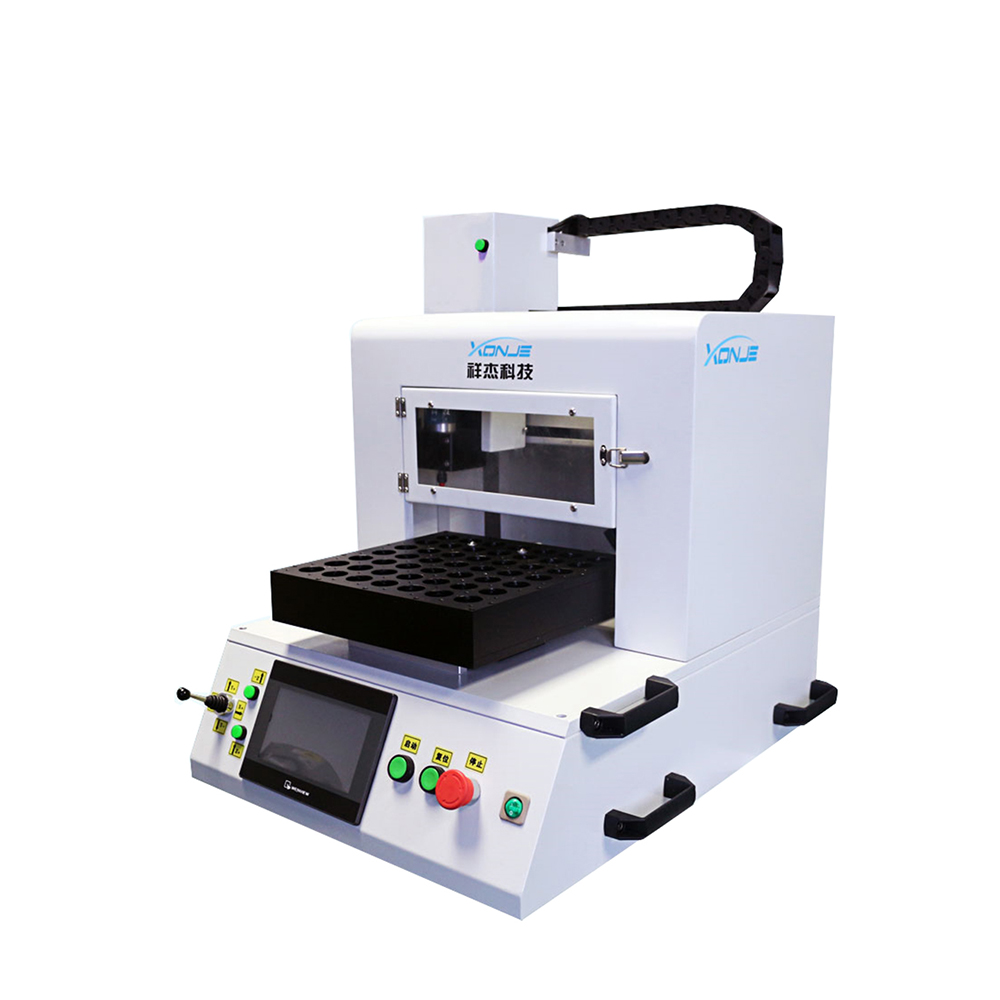

Front view of XONJE XJ-L530 desktop PCB milling cutter router with PLC control and high-speed spindle for precision cutting
Front view of XONJE XJ-L530 desktop PCB milling cutter router with PLC control and high-speed spindle for precision cutting Front view of XONJE XJ-L530 desktop PCB milling cutter router with PLC control and high-speed spindle for precision cutting

loading

XONJE XJ-L530 Desktop Milling Cutter Board Splitting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for cutting PCB stamp holes, curved PCBs, and irregular PCBs. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc
SKU:
Availability:
Quantity:

Product Features:

1. PLC human-machine interface control;


2. Quick programming function;


3. Capable of continuous cutting without interruption during loading and unloading;


4. A high-quality shaft system enables the system to quickly accelerate and decelerate, reduce synchronization time, improve productivity, and maintain high accuracy;


5. Using high-quality hardware to ensure high rigidity and performance;


6. All guide screws are covered to prevent dust and dirt from entering, thereby improving the lifespan and performance of the shaft;


Product Parameter:

ParameterSpecification
Drive system motorStepper motor + screw rod
Air travel speed300 mm/s
Repetitive accuracy of drive system±0.02 mm
Cutting speed0–100 mm/s
ConfigurationX, Y, Z three axes
Positioning methodSpecial or standard fixture
Loading methodManual loading
Circuit board thickness0.4–4 mm
Safety settingsEmergency stop for entire machine, emergency stop for spindle, spindle motor overheating detection, stepper motor overload detection
Spindle60,000 RPM
Cooling methodAir cooling
Machine size650 mm × 550 mm × 715 mm
Weight~150 kg
Vacuum suction methodUpper suction / lower collection
