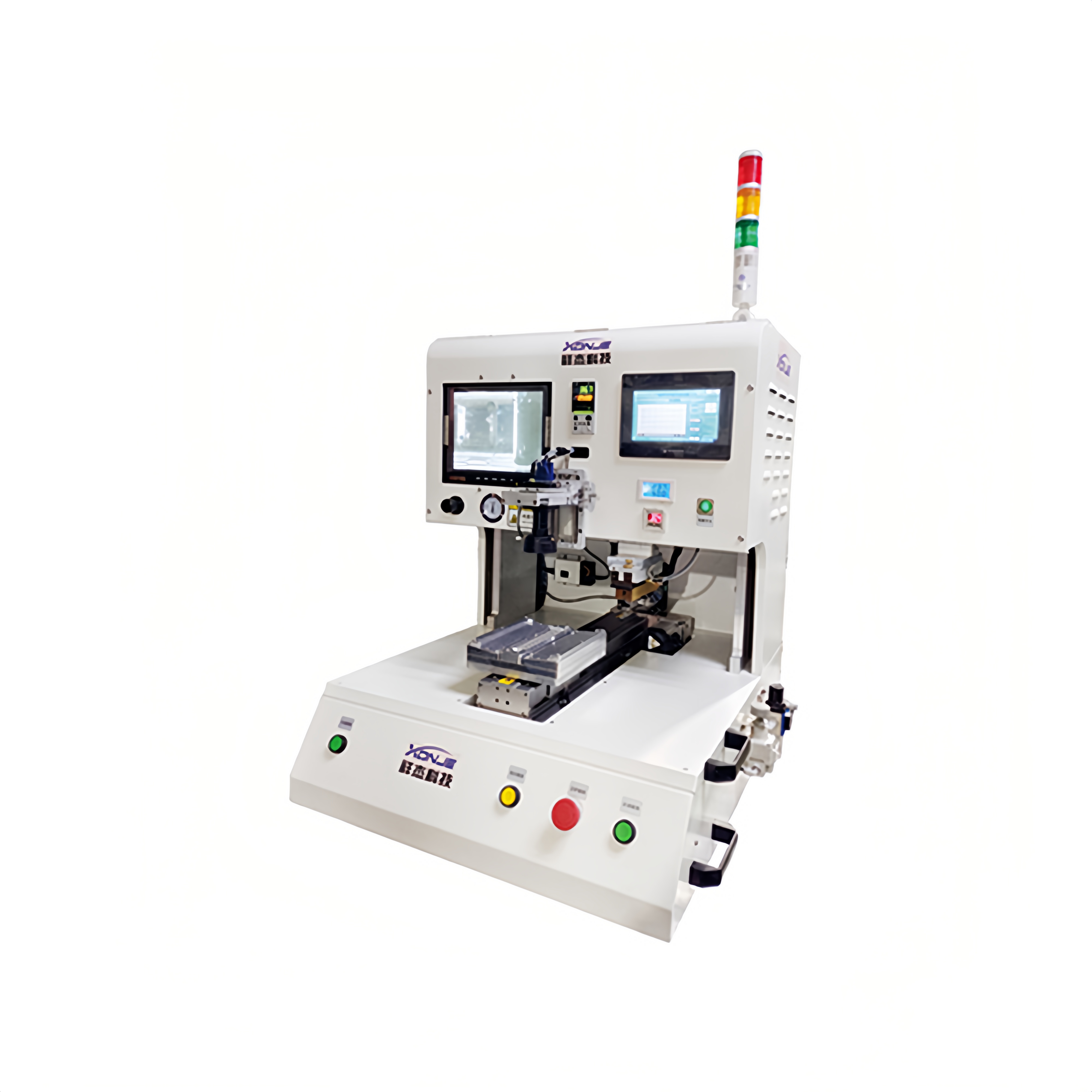

Front view of XONJE XJPP-3AB multifunctional pulse welding machine with programmable temperature control and multi-station design

XONJE XJPP-3AB Multifunctional Pulse Welding Machine

Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. The heating rate can be adjusted according to different products;

2. Special material welding joints ensure average product pressure;

3. Equipped with vacuum function, it is easier to adjust alignment;

4. Temperature CNC, clear and precise;

5. Equipped with a digital pressure gauge that can be preset;

6. Programmable curves include preheating and reflow soldering temperatures;

7. Suitable for various high-density TABVTCP crimping and FPC/FFC and PCB solder crimping;

8. Multiple products can be placed at once for automatic left and right displacement welding, with high work efficiency;

9. The XY axis is controlled by a stepper motor, and the precise positioning of the Z-axis guide cylinder is precise.

Product Parameter:

Parameter	Specification
Positioning fixture	1 set
Workstation	Continuous multiple workstations
Working area	250 × 250 mm
Temperature accuracy	±2 °C
Temperature setting	0–500 °C
Hot pressing time	0–99 s
Welding head material	Rare metal
Working voltage	AC 220V
Working pressure	0.5–0.7 MPa (dry air source)
Weight	100 kg
Overall dimensions	680 mm (L) × 650 mm (W) × 600 mm (H)
