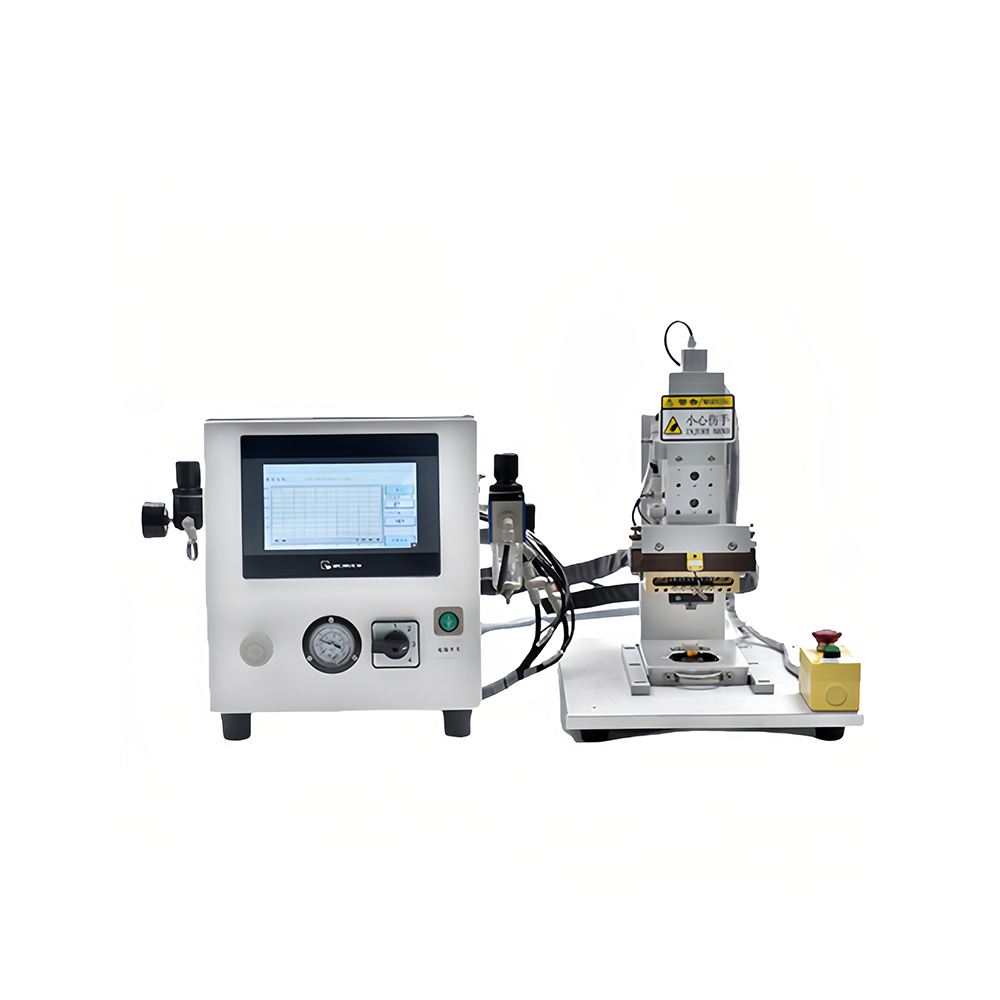

Front view of XONJE XJPP-1S split pulse welding machine with CNC temperature control, PLC interface, and vacuum alignment system
Front view of XONJE XJPP-1S split pulse welding machine with CNC temperature control, PLC interface, and vacuum alignment system Front view of XONJE XJPP-1S split pulse welding machine with CNC temperature control, PLC interface, and vacuum alignment system

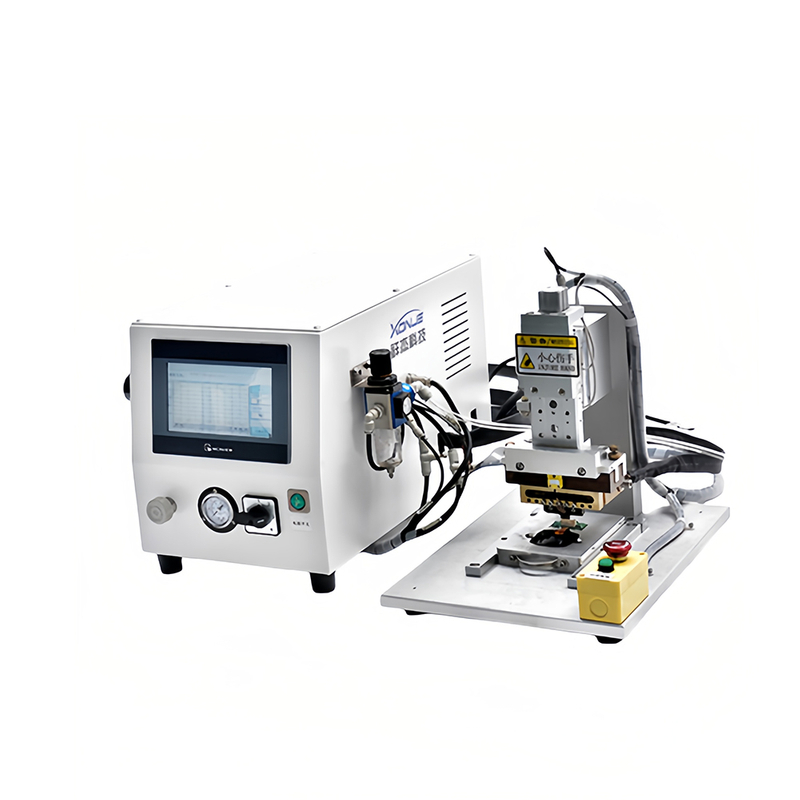

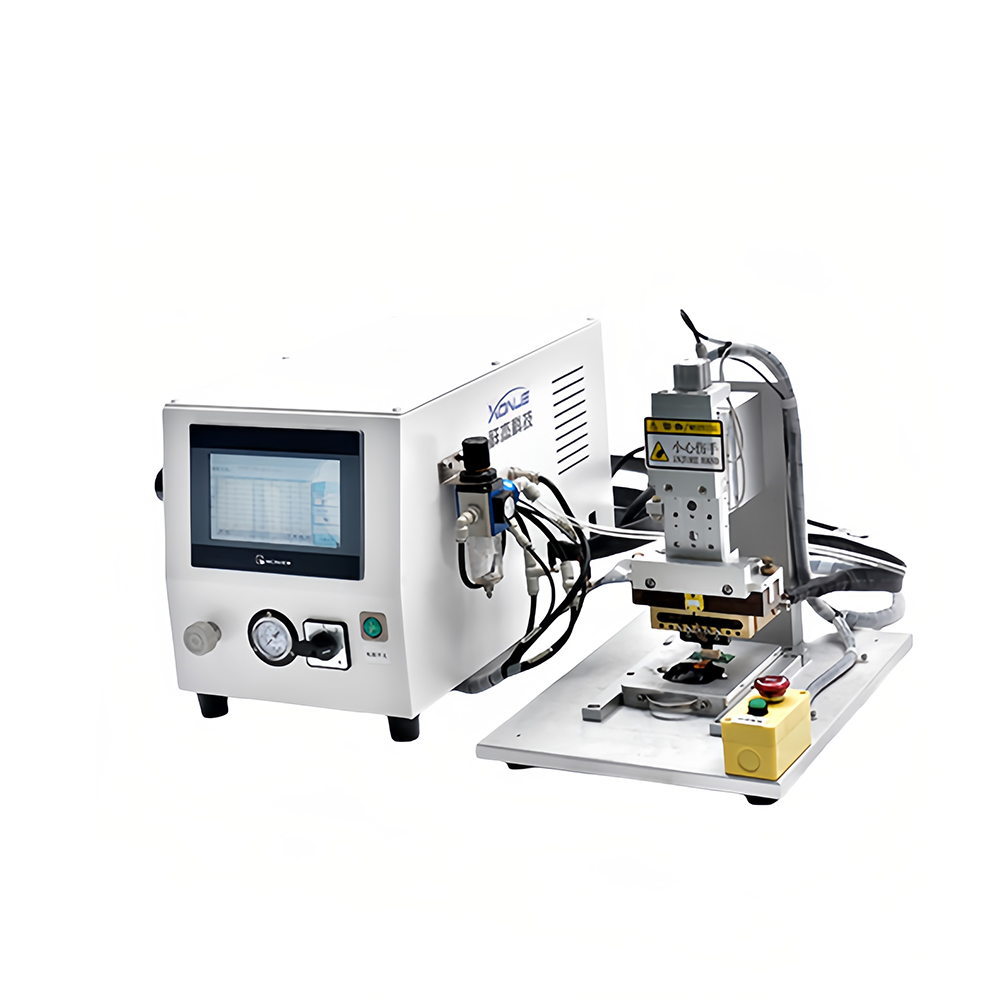

TAB bonding equipment featuring precise hot pressing system, digital pressure control, and SMC guide cylinder for 0.5mm pad spacing TAB bonding equipment featuring precise hot pressing system, digital pressure control, and SMC guide cylinder for 0.5mm pad spacing

loading

XONJE XJPP-1S Split Pulse Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:


1. The heating rate can be adjusted according to different products;


2. Special material welding joints ensure product pressure balance;


3. Equipped with vacuum function, it is easier to adjust alignment;


4. Temperature CNC, clear and precise, touch screen operation, Chinese and English display interface, PLC control, simple operation;


5. Equipped with a digital pressure gauge that can preset the pressure range, using SMC precision guide cylinder, with high pressing accuracy, and can weld products with a pad spacing of 0.5mm;


6. Suitable for various high-density TAB, TCP crimping, FPC, FFC, TFT and PCB solder crimping.


Product Parameter:

ParameterSpecification
Positioning fixture1 set
Working area150 × 200 mm
Temperature accuracy±2 °C
Welding head materialRare metal
Temperature setting0–500 °C
Hot pressing time0–99 s
Working voltageAC 220V
Working air pressure0.5–0.7 MPa
Weight60 kg
Overall dimensions600 mm (L) × 400 mm (W) × 600 mm (H)
