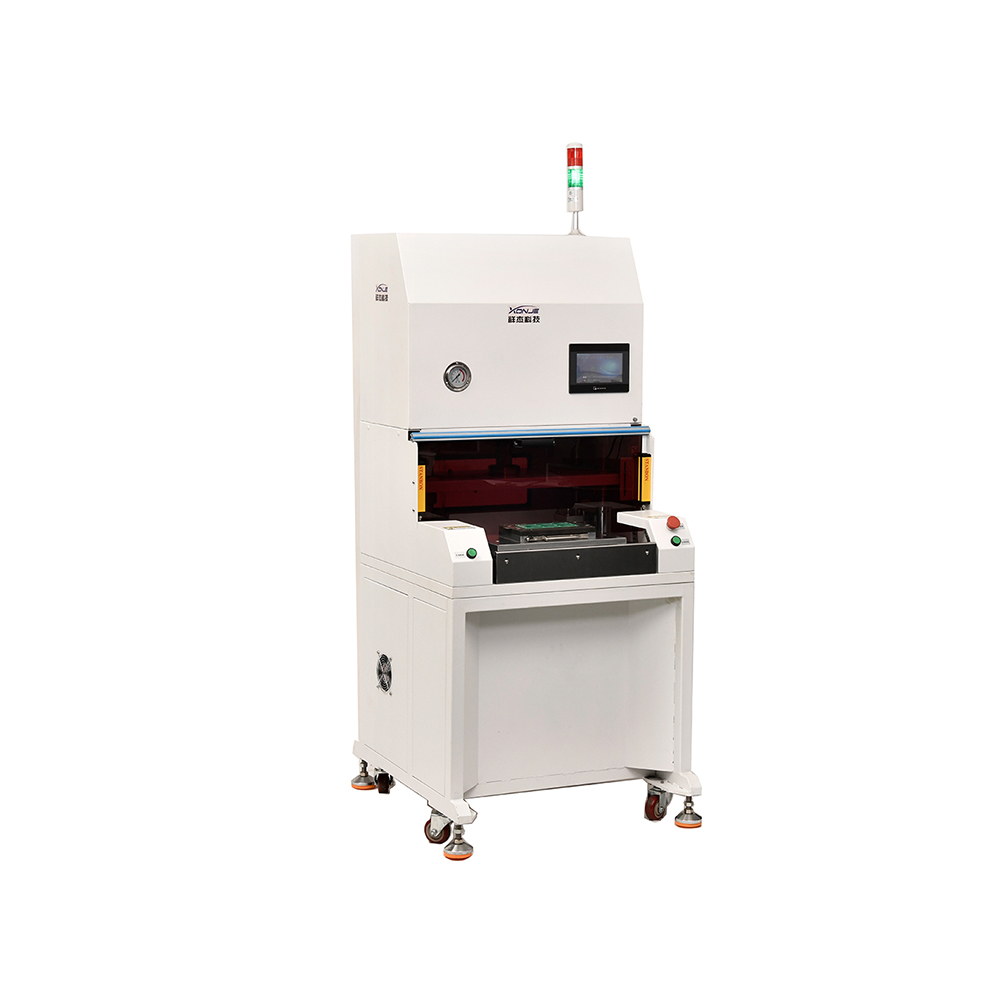

Front view of XONJE XJ360-PH micro stress punching machine for PCB and FPC cutting with automatic mold replacement and low-stress design
Front view of XONJE XJ360-PH micro stress punching machine for PCB and FPC cutting with automatic mold replacement and low-stress design Front view of XONJE XJ360-PH micro stress punching machine for PCB and FPC cutting with automatic mold replacement and low-stress design

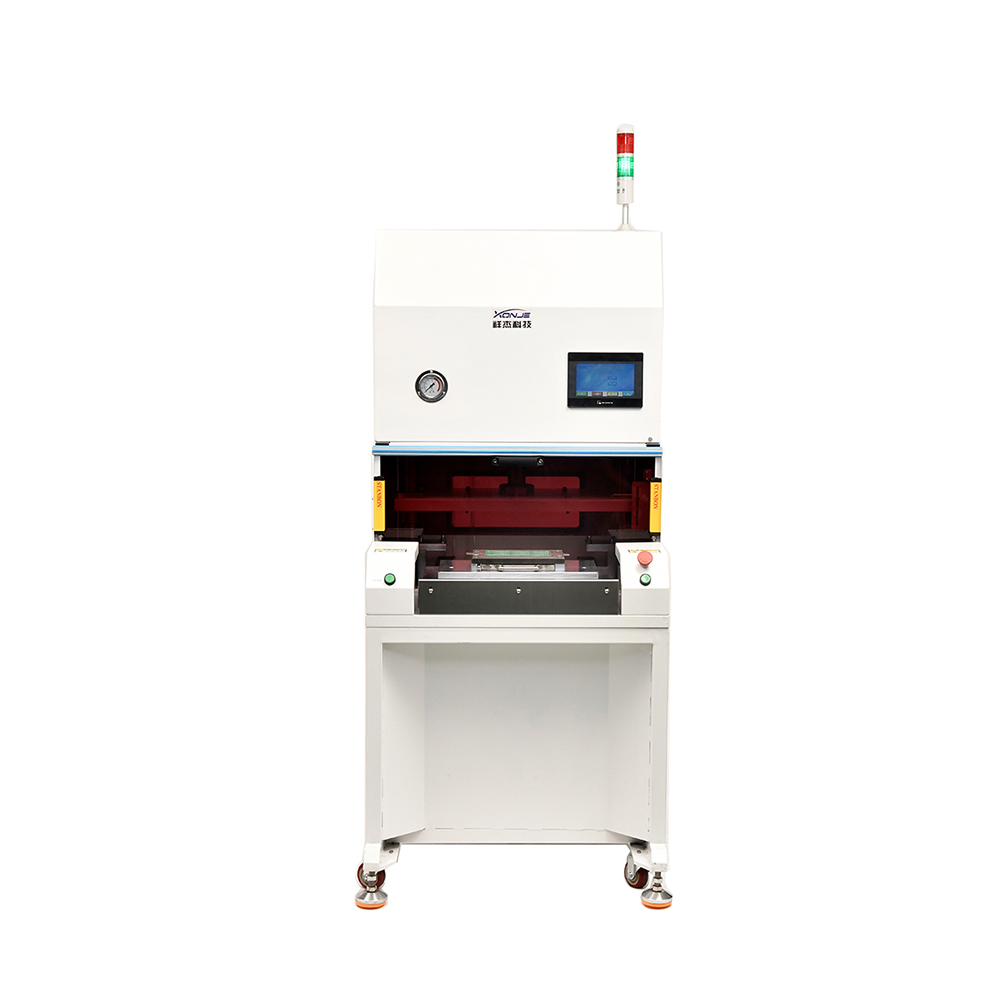

PCB stamping depaneling machine with computer control, drawer ejection system, and compact rigid frame for safe operation PCB stamping depaneling machine with computer control, drawer ejection system, and compact rigid frame for safe operation

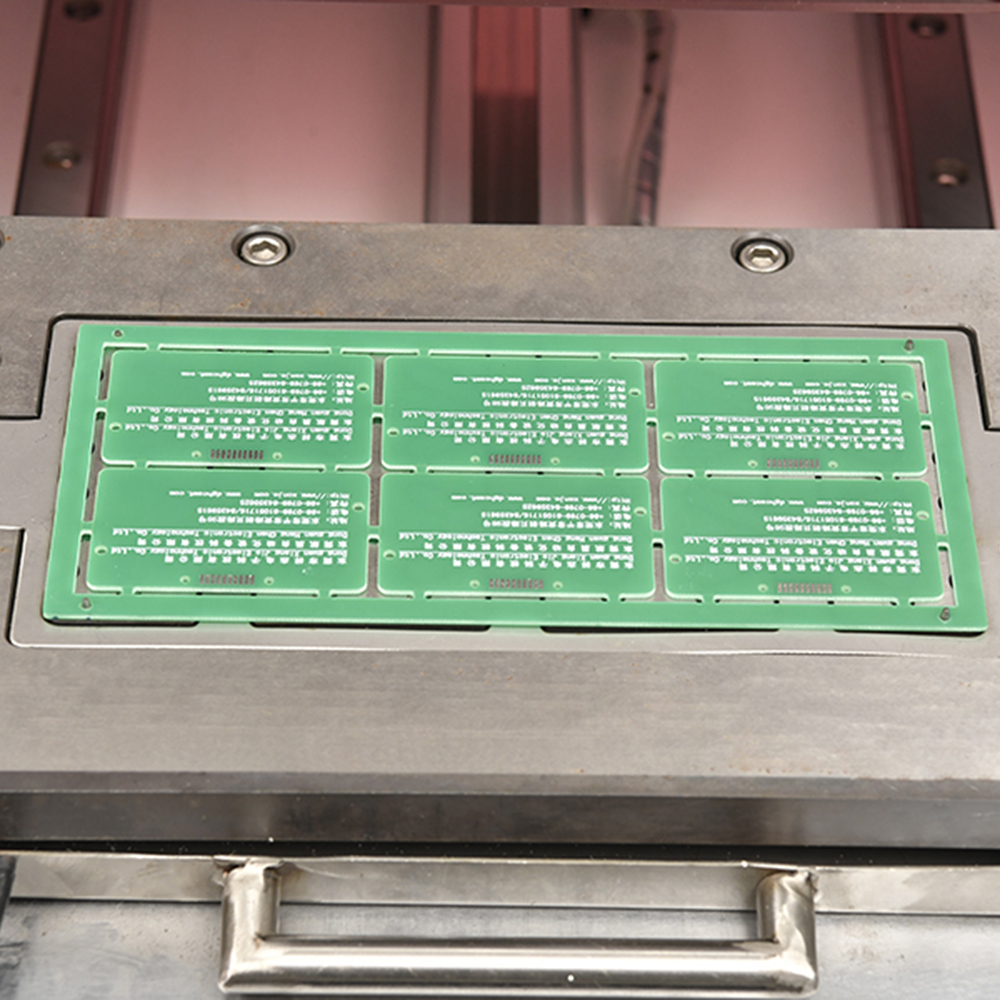

High-efficiency FPC cutting equipment featuring micro stress punching and interchangeable mold system for rapid board change High-efficiency FPC cutting equipment featuring micro stress punching and interchangeable mold system for rapid board change

loading

XONJE XJ360-PH Micro Stress Stamping and Splitting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for cutting PCB stamp holes, curved PCB/FPC soft boards, LED aluminum substrates, and FPC. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc.
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1. Patent design, patent number: 2017200467605


2. Microcomputer control, Chinese and English human-machine exchange interface.


3. Compact structural design, super rigidity, easy to operate and safe to use.


4. Replace the mold according to different products, and the mold replacement is convenient and simple.


5. The lower mold automatically enters and exits, making it easy to retrieve and place products. The finished product can be dropped into the drawer.


6. Minimize the internal stress generated during plate cutting and avoid tin cracking.


7. The efficiency of punching semi-finished PCB, FPC, aluminum substrate, and copper substrate is extremely high.


Product Parameter:

Machine dimensions730×810×1760 mm
Output3T/5T10T/15T//25T
Working air pressure0.5-0.70 MPA (dry air source)
Plate areathree hundred × 350mm can be customized for larger areas
Machine weight530 KG
Using voltage220 VAC
