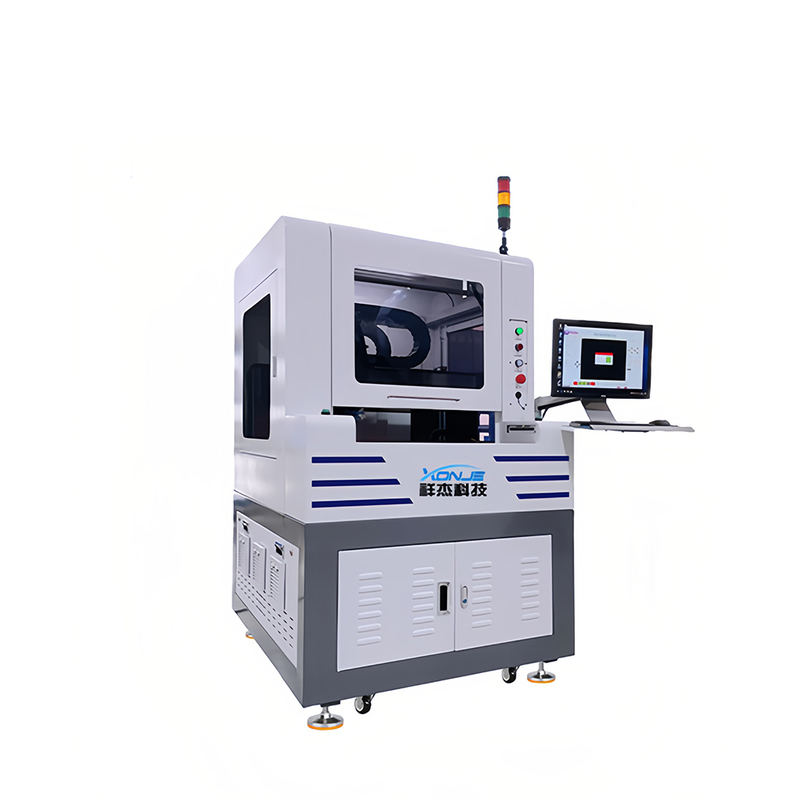

Product Features:
1. Adopting a fiber laser, highly integrated with the industrial control system in the workbench cabinet, combined with a ball planting mechanism to achieve synchronization between tin ball and laser welding, equipped with a dual station interactive feeding system, the feeding, unloading, automatic positioning, and welding are carried out synchronously, achieving efficient automatic welding, greatly improving production efficiency, and meeting the needs of precision level components such as BGA chips, wafers, communication devices, camera CCM modules VCM enameled coil modules and contact basin frames require soldering with tin, which has a certain range of special applications.
2. Adopting high-precision imported automatic solder ball spraying mechanism, the diameter range of the solder ball is optional, with a minimum diameter of 0.1mm, which is in line with the development trend of integration and precision; The laser tin ball automatic spraying system can spray 7200 points per hour.
3. The solder ball does not contain soldering flux, and the solder ball is melted inside the welding nozzle without splashing during welding.
4. The difference in solder balls is small, and the consistency of solder joints after welding is very high.
5. Welding speed is fast, equipment production capacity is high, and there is no heat impact around the welding point.
6. It has multiple protections and automatic protection functions for multiple tin balls, blocked balls, etc. at once.
Product Parameter:
| Parameter | Specification |
| Station | Dual worktable (optional) |
| Laser power | 100W (optional) |
| Laser wavelength | 10640 nm |
| Welding method | Automatic spraying |
| Working voltage | AC 220V |
| Weight | 1500 kg |
| External dimensions | 1560 mm (L) × 1200 mm (W) × 1500 mm (H) |
