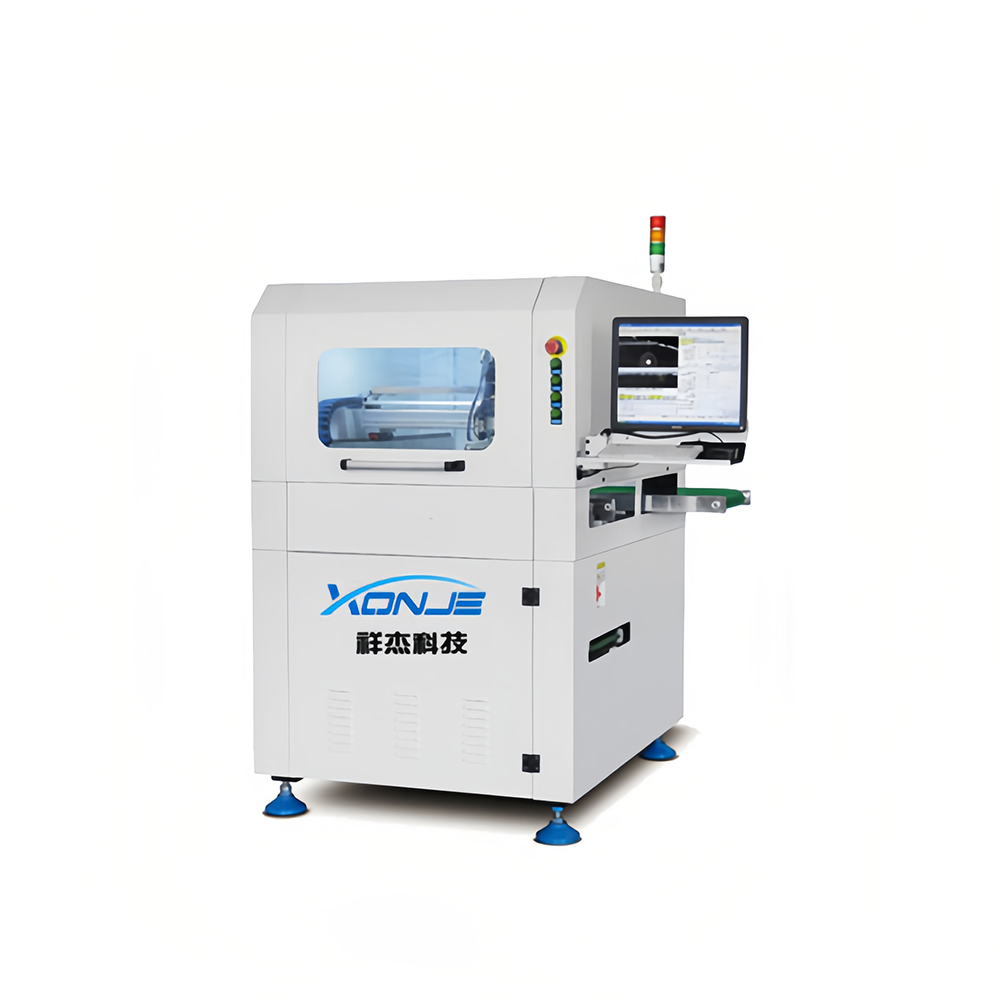

Front view of XONJE XJ-Z750 non-metal PCB cutting machine with automatic inline operation and low-stress depaneling design

XONJE XJ-Z750 Online Non Metallurgical Tool Splitting Machine

Suitable for cutting PCB stamp holes, curved PCBs, and irregular PCBs. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Features:

1. This type of cutting machine is a fully automatic online cutting equipment that does not require manual intervention;

2. Equipped with a board computer or connected to customer testing (ATE) in the front section to achieve board entry

3. The working principle is the same as the previous generation of offline products, both using high-speed spindles

4. Separate PCBA from the panel under low stress to ensure cutting accuracy and cleanliness

5. Automatic tool change, tool breakage detection

6. Fully automatic production mode

7. Spc statistical function and customer management system ERP integration

8. Optional dust suction device with explosion-proof function and air volume monitoring function

Product Parameter:

Parameter	Specification
Maximum partition area	350 × 350 mm
Minimum partition area	50 × 50 mm
Plate thickness	0.4–6 mm
Transmission height	900 mm
Transmission direction	Left and right
Transmission speed	1500 mm/s (adjustable)
Feeding method	Online transportation guide rail
Rail width	Automatic adjustment
Positioning method	Clamping the upper and lower guide rails
Grab system	360° rotating clamping system
Spindle speed	60,000 / 100,000 RPM
Spindle cooling method	Air cooling
ESD monitoring system	Yes
Automatic tool change detection	Yes
Cutting stress feedback	Yes
Broken knife detection	Yes
Cutting speed	1–200 mm/s
Cutting accuracy	±0.05 mm
Repetitive accuracy	±0.01 mm
Movement speed	1000 mm/s
Board output method	ESD belt transmission
Waste collection method	Track outflow
Program programming	GERBER drawing import / visual system editing
Working pressure	0.5–0.7 MPa (dry air source)
Voltage	AC 380V, 3 kW
Weight	1100 kg
