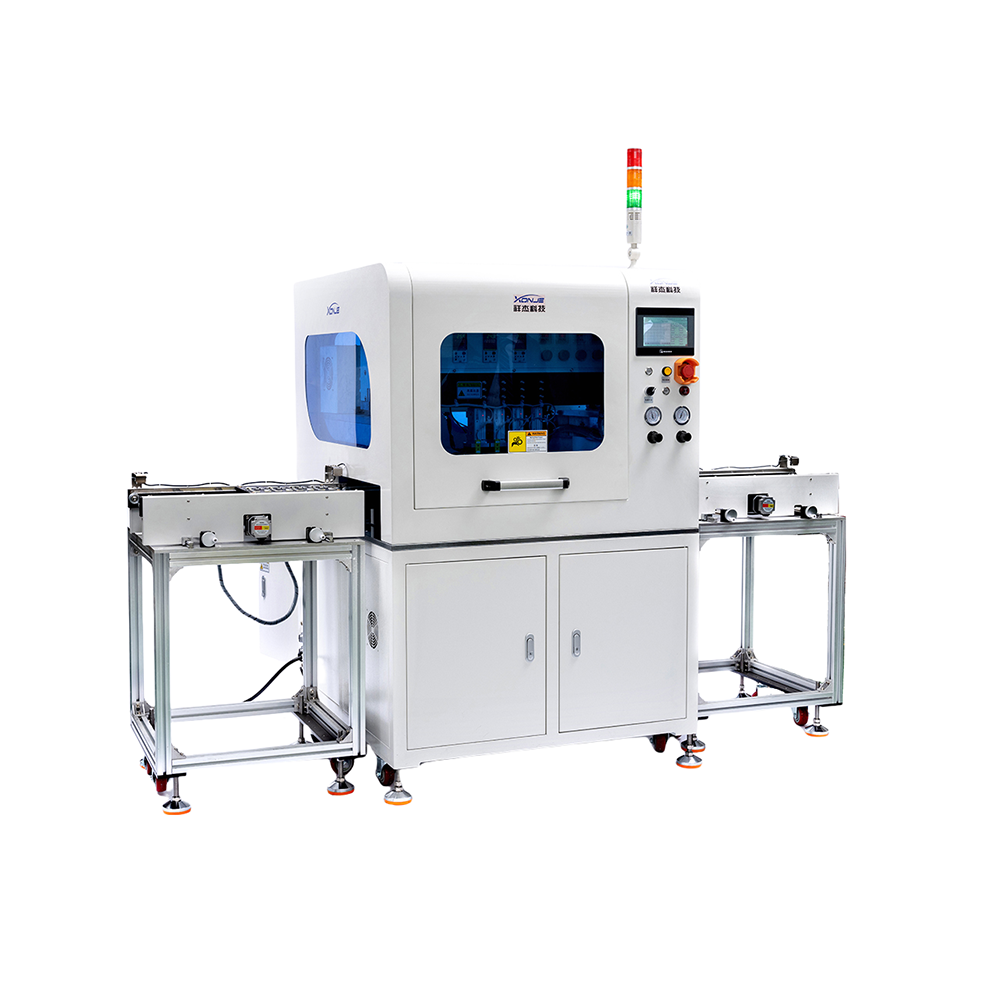

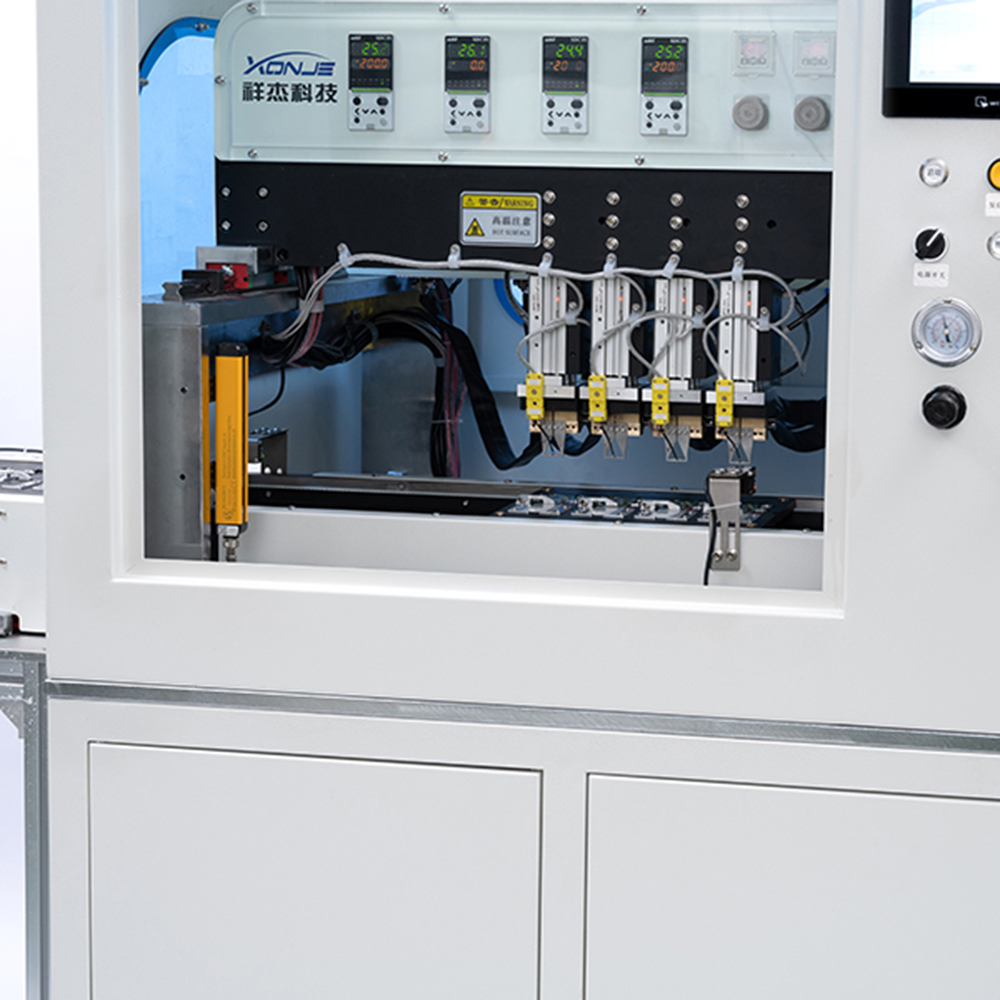

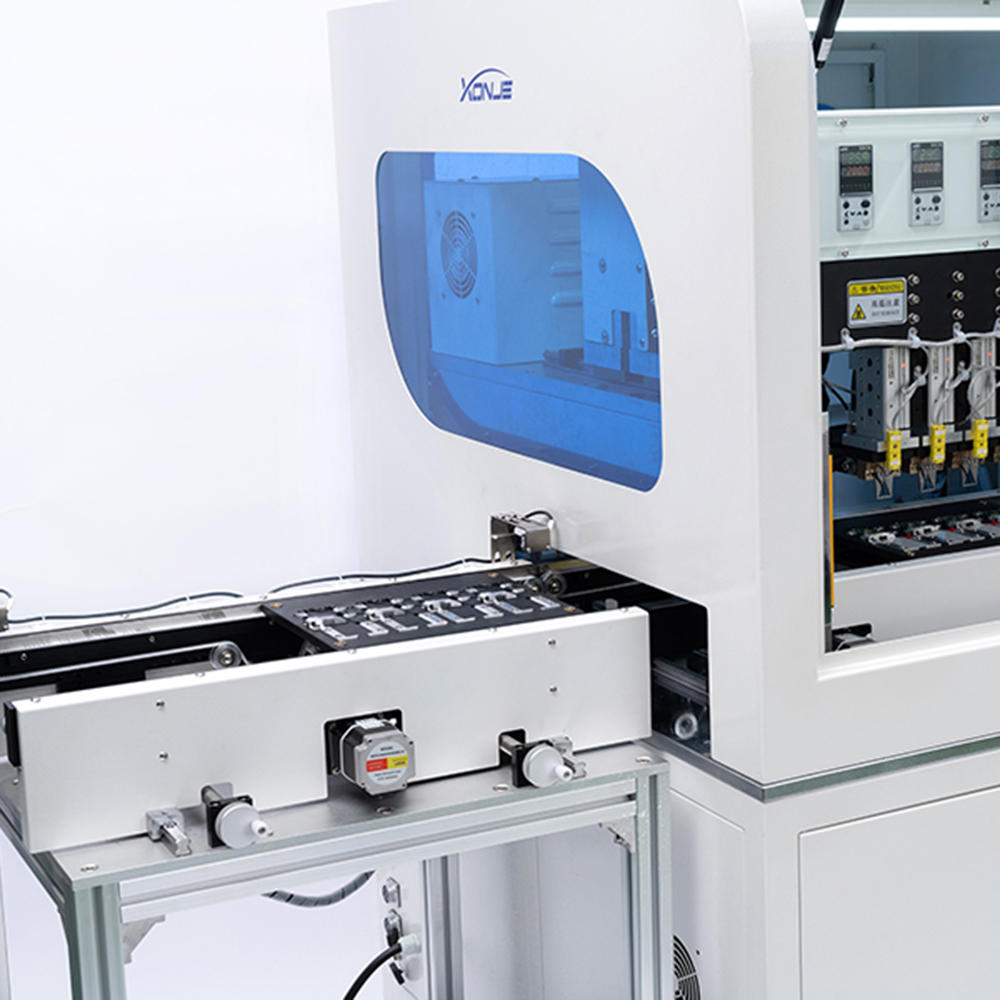

XONJE XJPP-6A Online Multi Head Pulse Welding Machine
XONJE XJPP-6A Online Multi Head Pulse Welding Machine XONJE XJPP-6A Online Multi Head Pulse Welding Machine
XONJE XJPP-6A Online Multi Head Pulse Welding Machine XONJE XJPP-6A Online Multi Head Pulse Welding Machine
XONJE XJPP-6A Online Multi Head Pulse Welding Machine XONJE XJPP-6A Online Multi Head Pulse Welding Machine

loading

XONJE XJPP-6A Online Multi Head Pulse Welding Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for hot pressing welding between high-density FPC, FFC, PCB, connectors, ink cartridge chip welding, plastic hot pressing riveting and other processes. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, printers, LED, etc
SKU:
Availability:
Quantity:

Product Features:

1. According to different products, the heating speed can be adjusted and 100 sets of parameters can be saved;


2. Special material welding joints ensure product pressure balance;


3. Equipped with vacuum function, it is easier to adjust alignment for products with thinner welding thickness;


4. Temperature CNC, clear and precise, touch screen operation, Chinese and English display interface, intuitive and clear temperature curve, PLC control, simple operation;


5. Equipped with a digital pressure gauge that can preset the pressure range, using SMC precision guide cylinder, with high pressing accuracy,


Products with a welding pad spacing of 0.5mm; Quick and efficient product retrieval and placement;


7. Equipped with high-definition CCD amplification and high-definition display alignment inspection, to prevent defective products and ensure that the product welding is completely correct;


8. Suitable for various high-density TAB, TCP crimping, FPC, FFC, TFT and PCB solder crimping.


Product Parameter:

ParameterSpecification
Progress track height900 ± 20 mm
Track width100–300 mm (adjustable)
Heating principlePulse heating
Welding area250 × 300 mm
Temperature accuracy±3 °C
Working voltageAC 380V
Working air pressure0.5–0.7 MPa
Weight450 kg
Overall dimensions1000 mm (L) × 1100 mm (W) × 1550 mm (H)
