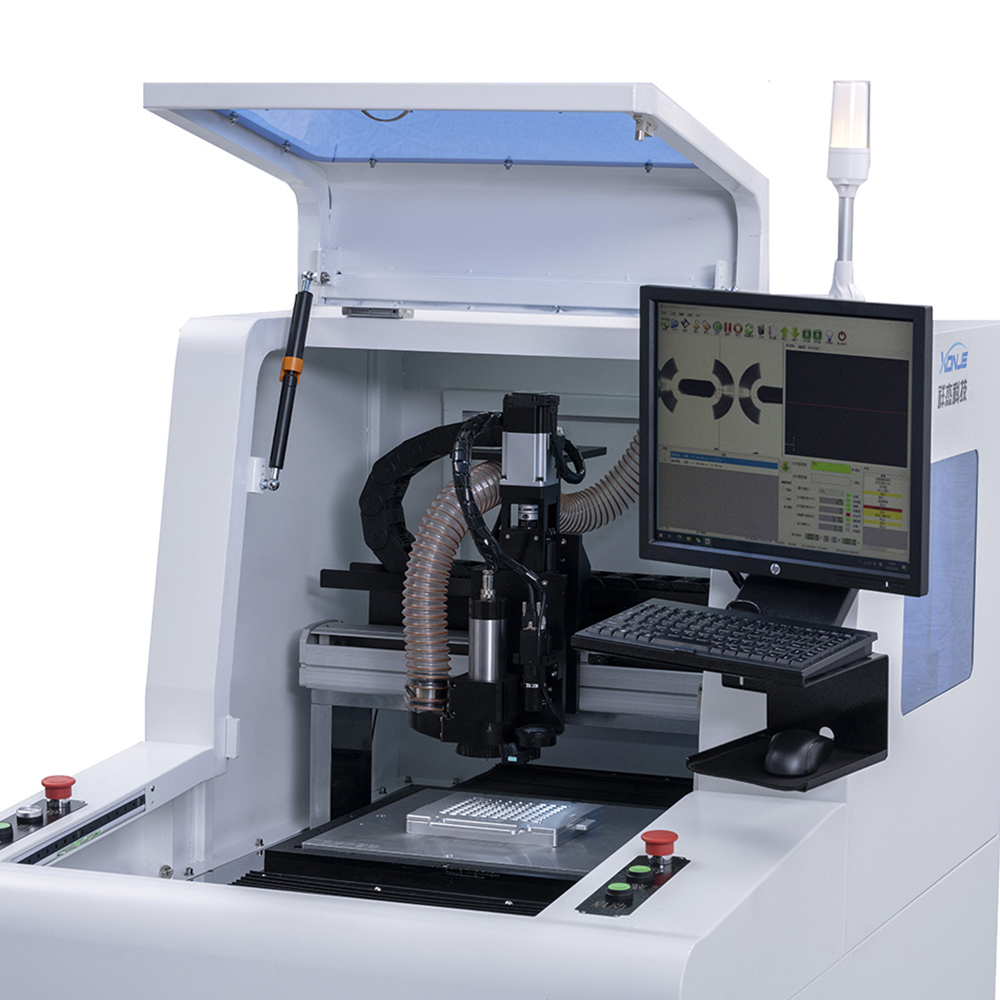

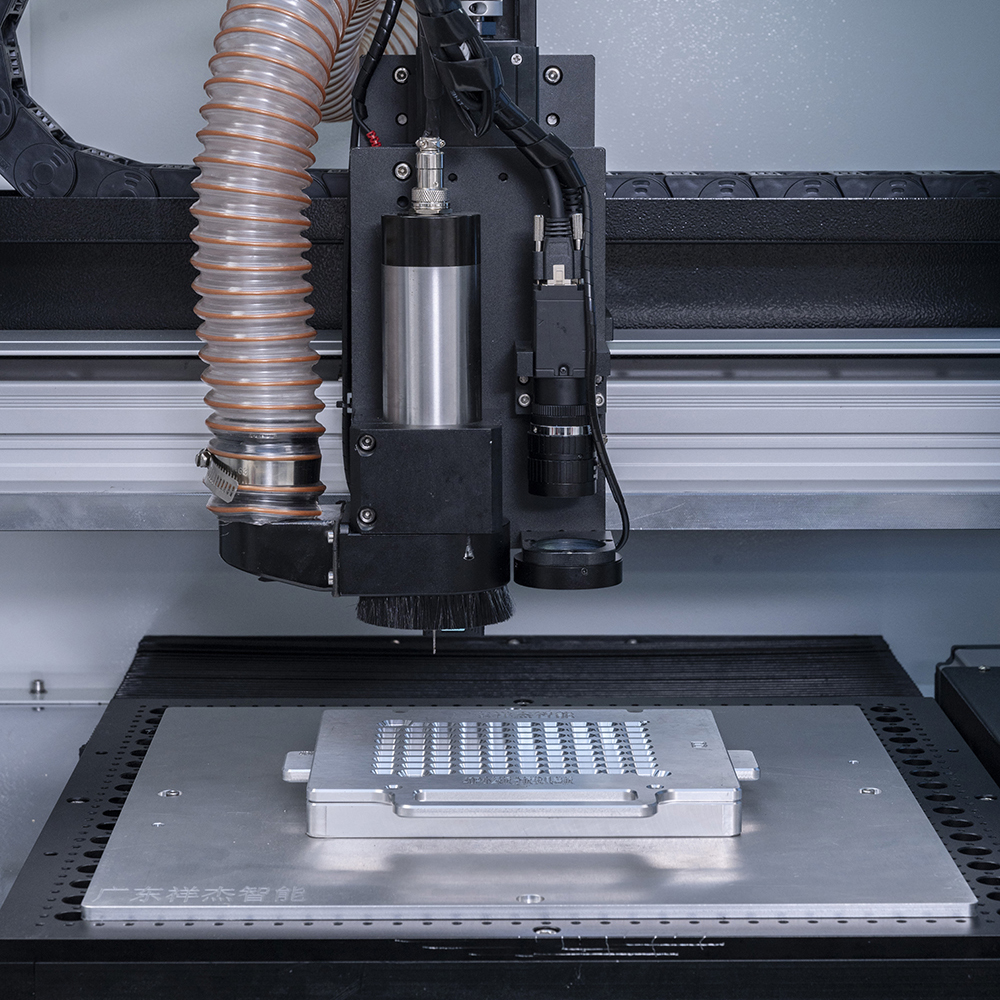

Product Features:
1: High-Precision PCB Separation
Divides multiple connected PCBs along pre-programmed paths, replacing manual breaking, V-CUT, or PUSH cutting, reducing stress damage, improving quality, and lowering scrap rates.
2: Advanced Control & Operation
Equipped with a human-machine interface, AC servo motor, and WIN7 operating system for stable, efficient performance.
3: CCD-Assisted Path Editing
High-pixel CCD supports intuitive teaching and editing of cutting paths, with single-step modification and simulation to boost efficiency and accuracy.
4: MAKE Compensation & Multi-Window Programming
Features MAKE compensation with large, medium, and small windows for precise programming, allowing intuitive target box placement for exact alignment.
5: Automatic Geometric Alignment
MAKE geometric alignment with automatic grabbing ensures faster response, independent parameter adjustment, and enhanced cutting precision.
Product Parameter:
| Parameter | Specification |
| Number of workbenches | Landing single workbench |
| Partition area | 300 × 350 mm |
| Positioning accuracy | ±0.01 mm |
| Cutting accuracy | ±0.02 mm |
| Cutting function | Straight line, L-shape, U-shape, arc, full circle |
| Cutting speed | 0–100 mm/s |
| Spindle speed | 0–60,000 RPM |
| Spindle tool | 0.8–3.0 mm |
| Vacuum suction method | Upper suction / lower suction |
| Control method | Patented software + industrial computer + servo |
| Working voltage | 220V AC |
| Overall dimensions | 830 mm (L) × 1020 mm (W) × 1400 mm (H) |
| Weight | 250 kg |
