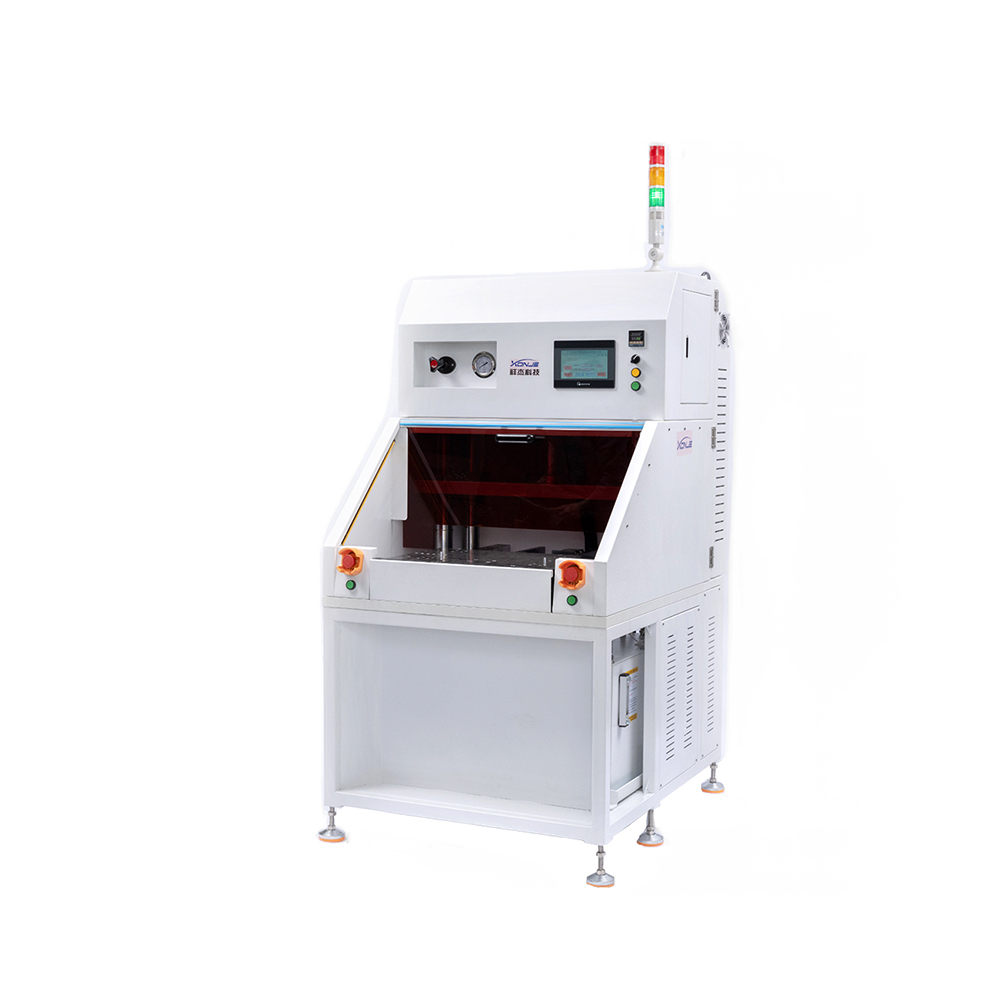

XONJE XJP8-30T Servo Stamping and Splitting Machine

Product Features:

1. Adopting servo hydraulic punching cutting, fast speed, with a cutting speed of 8 seconds per piece;

2. Suitable for cutting FPC/PCB panels with various full face connections, with a cutting accuracy of ± 0.03mm,

3. Punching pressure 15~80T;

4. Oil pressure temperature measurement alarm function;

5. The sliding accuracy of the platform, the horizontal accuracy of the platform and the mold, is ± 0.02mm, composed of servo motors, servo drivers, sensors, etc,

By controlling the system, the platform slides back and forth to achieve the handling function of FPC;

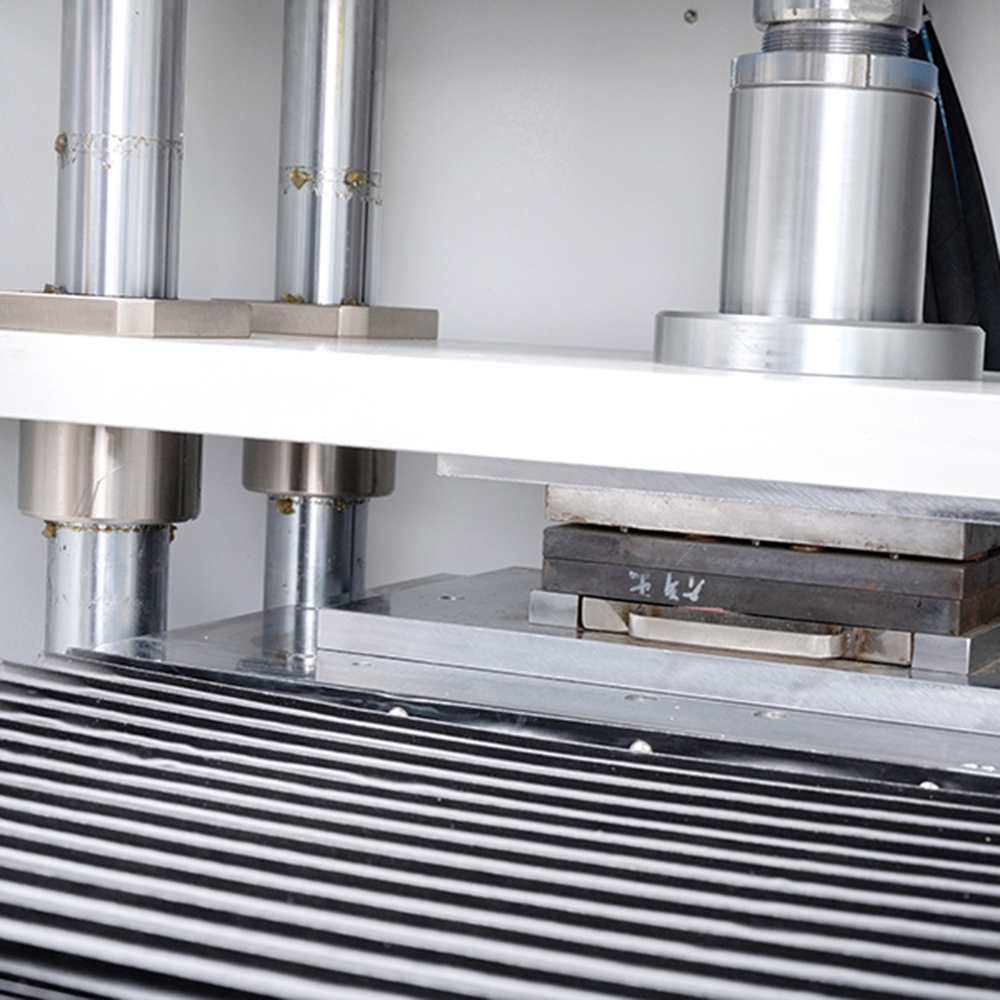

6. High precision guide rods, high-quality oil cylinders, oil pumps, motors, multi oil pipelines, proportional valves, solenoid valves, etc. complete the punching function.

By controlling the system, it is possible to achieve pressure fine adjustment and stable downward cutting;

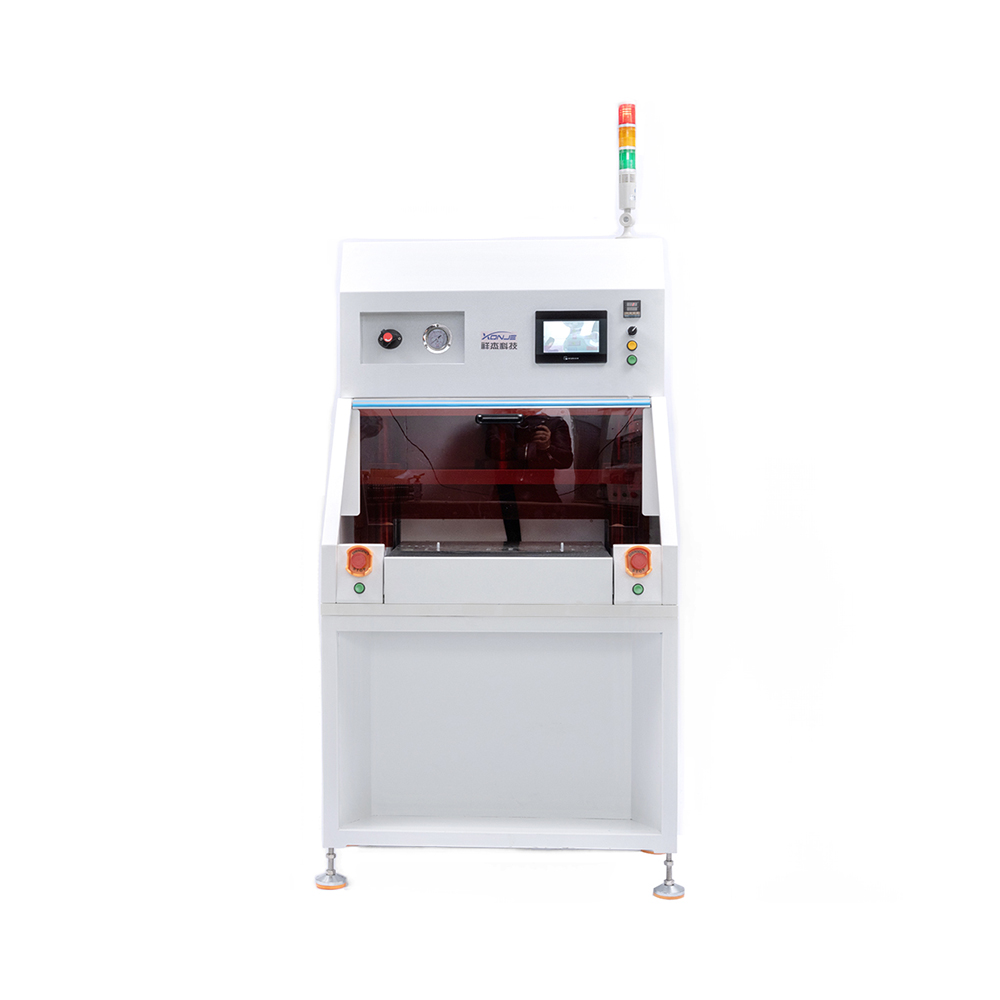

7. Drawer type cutting workbench (after cutting, the cutting desktop automatically returns to the operating position), using servo motor speed blocks and high accuracy;

8. The production quantity of touch screen display equipment can be arbitrarily set, and the number of pieces produced by the equipment can be manually set by the user;

The equipment pressure will display the measured value;

The device pressure can be set on the touch screen, and when entering the pressure adjustment interface, a non operator password is required to unlock it in order to adjust the parameters,

There are safety protection devices in the operating area;

9. Control system

Adopting PLC programmable controller and touch screen to control the comprehensive operation process, it can be operated automatically or manually;

Emergency braking is achieved in abnormal situations, and an audible and visual alarm is set;

Emergency stop buttons and alarm devices are installed at both ends of the equipment;

Control panel+locking to prevent unauthorized personnel from modifying and setting parameters;

A distribution cabinet equipped with independent locks, with functional block division for circuits, strong and weak current block division for easy maintenance;

The system is equipped with an overload protection system;

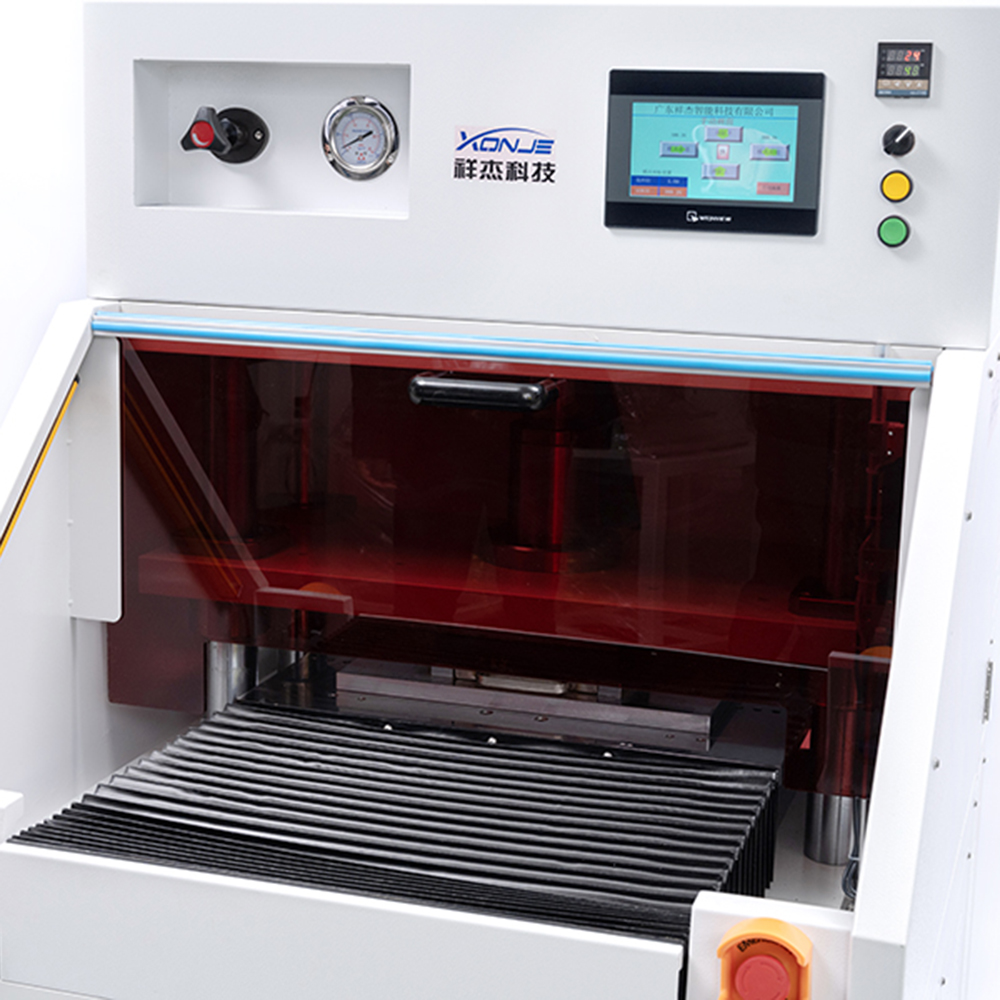

11. Touch screen

Can set operation permissions, control methods: jog, manual, semi-automatic, output saving, statistics, and error information storage;

In parameter settings (engineer level: permissions need to be set), functions such as selecting and setting programs (various workstations), real-time monitoring, parameter settings, etc. can be performed;
