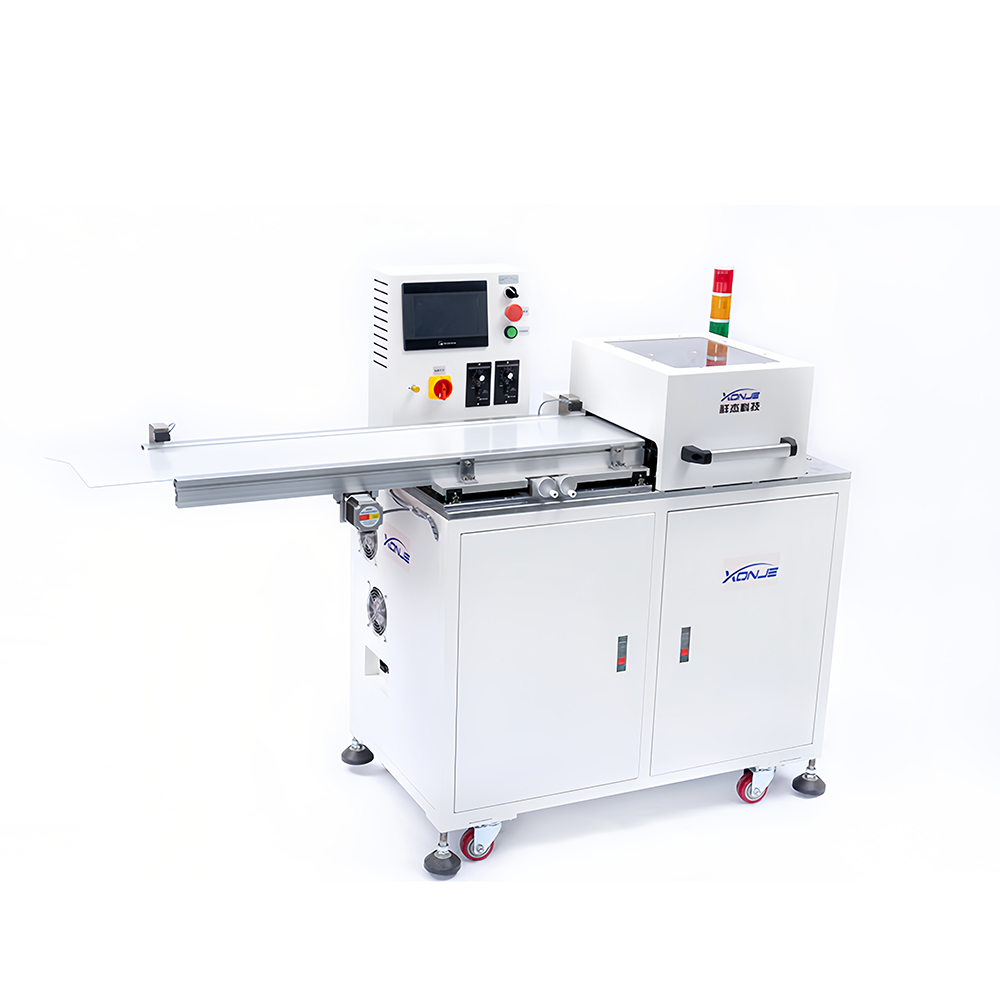

XONJE XJVC-5L-T Automatic Width Adjustment and Dividing Machine

Product Features:

1. Cutting and assembling boards in one go is 20 times more efficient than traditional board splitting machines;

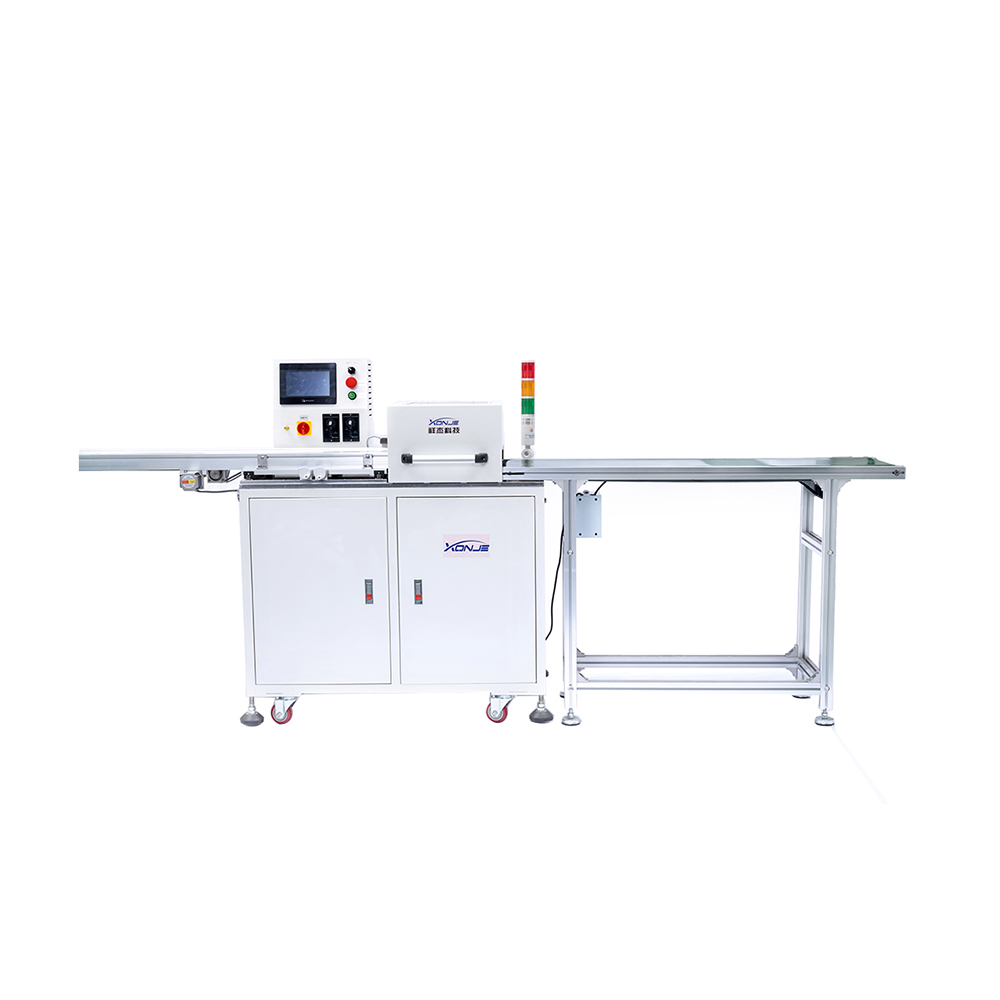

2. It can connect to the assembly line and achieve fully automatic unmanned operation;

3. Multiple safety protection devices;

4. Microcomputer human-machine interface, real-time monitoring of startup time, production capacity, alarm information, and automatic rejection system;

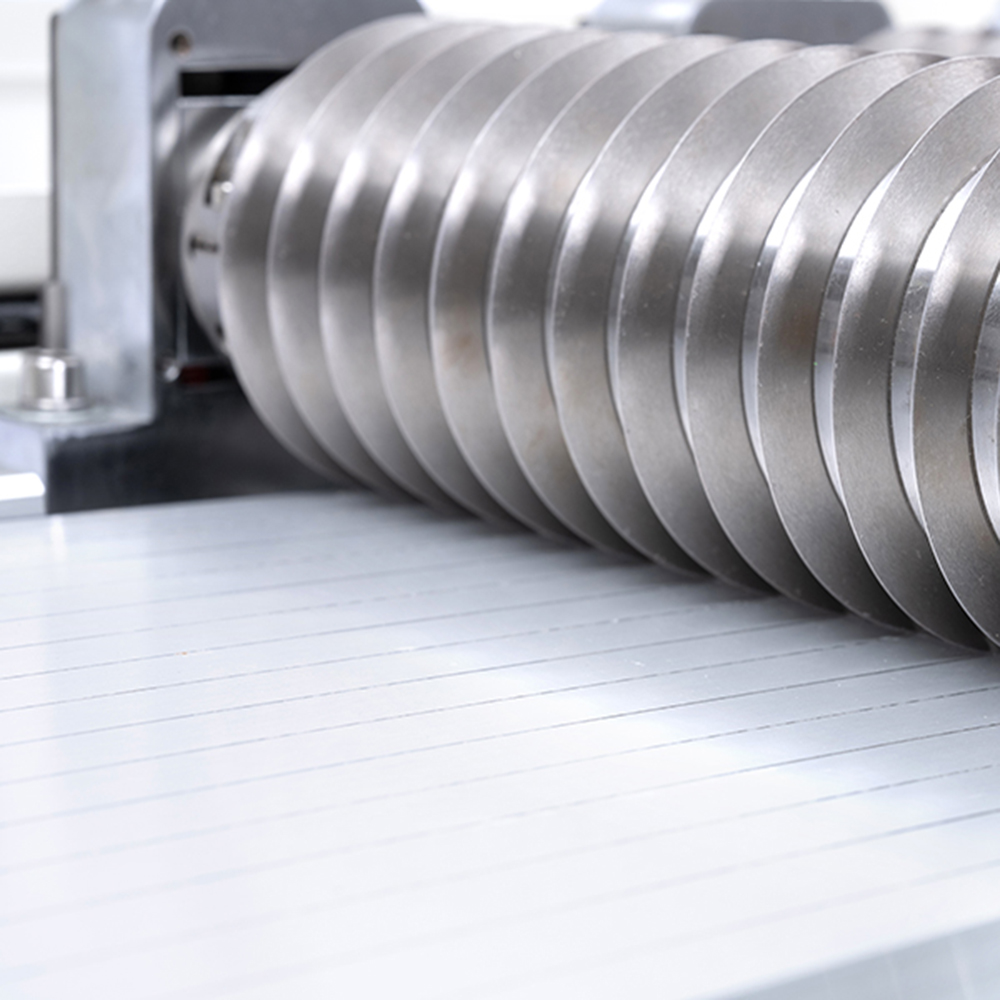

5. Multiple sets of upper and lower knives are used for simultaneous segmentation, and the distance between the upper and lower knives can be accurately adjusted. The thickness of the dividing plate needs to meet the following requirements: 0.6MM-3.5MM;

6. Multiple sets of upper and lower knives are used for simultaneous segmentation, and adjustable foot cup casters are installed at the bottom of the equipment, making it easy for the equipment to move. When not moving, it needs to be stable and fixed.;

7. The gap between the upper and lower knives can be adjusted according to the V-CUT spacing of the PCB board, with an accuracy controlled at 0.1MM;

8. The blade is made of imported high-speed steel material and processed through multiple special processes, with low stress in the split plate.

9. Due to multiple cuts, the cutting process is very smooth, greatly improving the positioning ability of the V-CUT slot, even for circuit boards with shallow V-CUT slots,There will also be no situation where the V-CUT slot jumps out of the guide knife to avoid defects.

Product Parameter:
