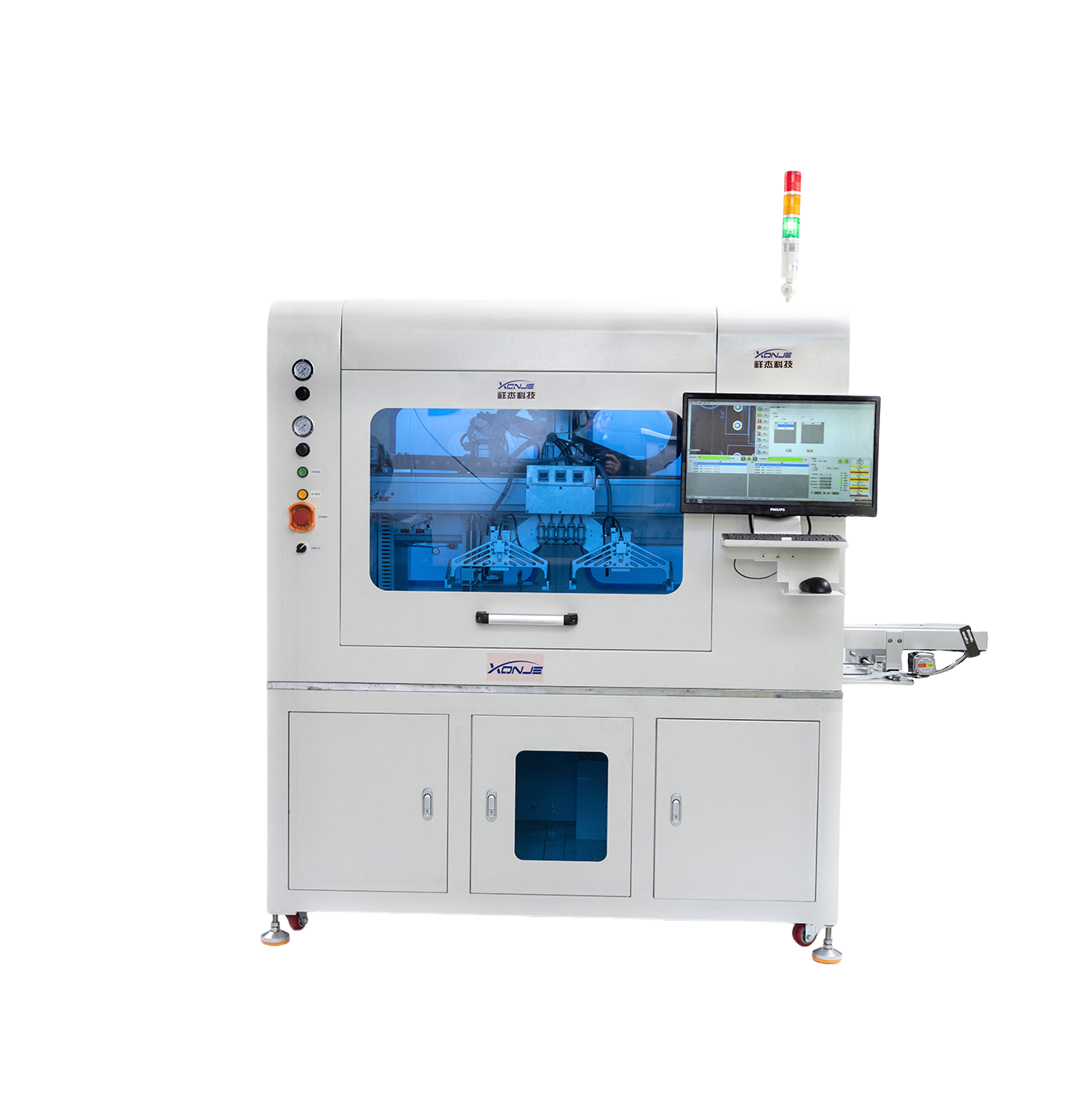

Front view of XONJE XJ-Z700 visual PCB router with CCD positioning, dual platform, and automatic milling cutter system
Front view of XONJE XJ-Z700 visual PCB router with CCD positioning, dual platform, and automatic milling cutter system Front view of XONJE XJ-Z700 visual PCB router with CCD positioning, dual platform, and automatic milling cutter system

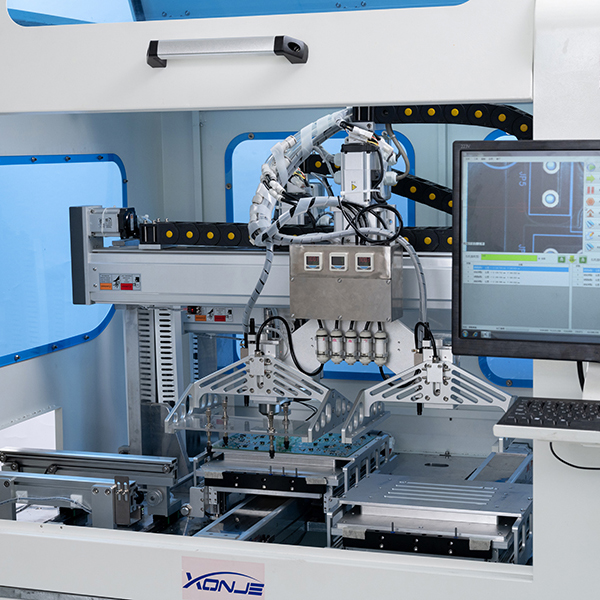

Dual platform PCB depaneling machine for high-speed online cutting with visual Mark point correction and auto spindle change Dual platform PCB depaneling machine for high-speed online cutting with visual Mark point correction and auto spindle change

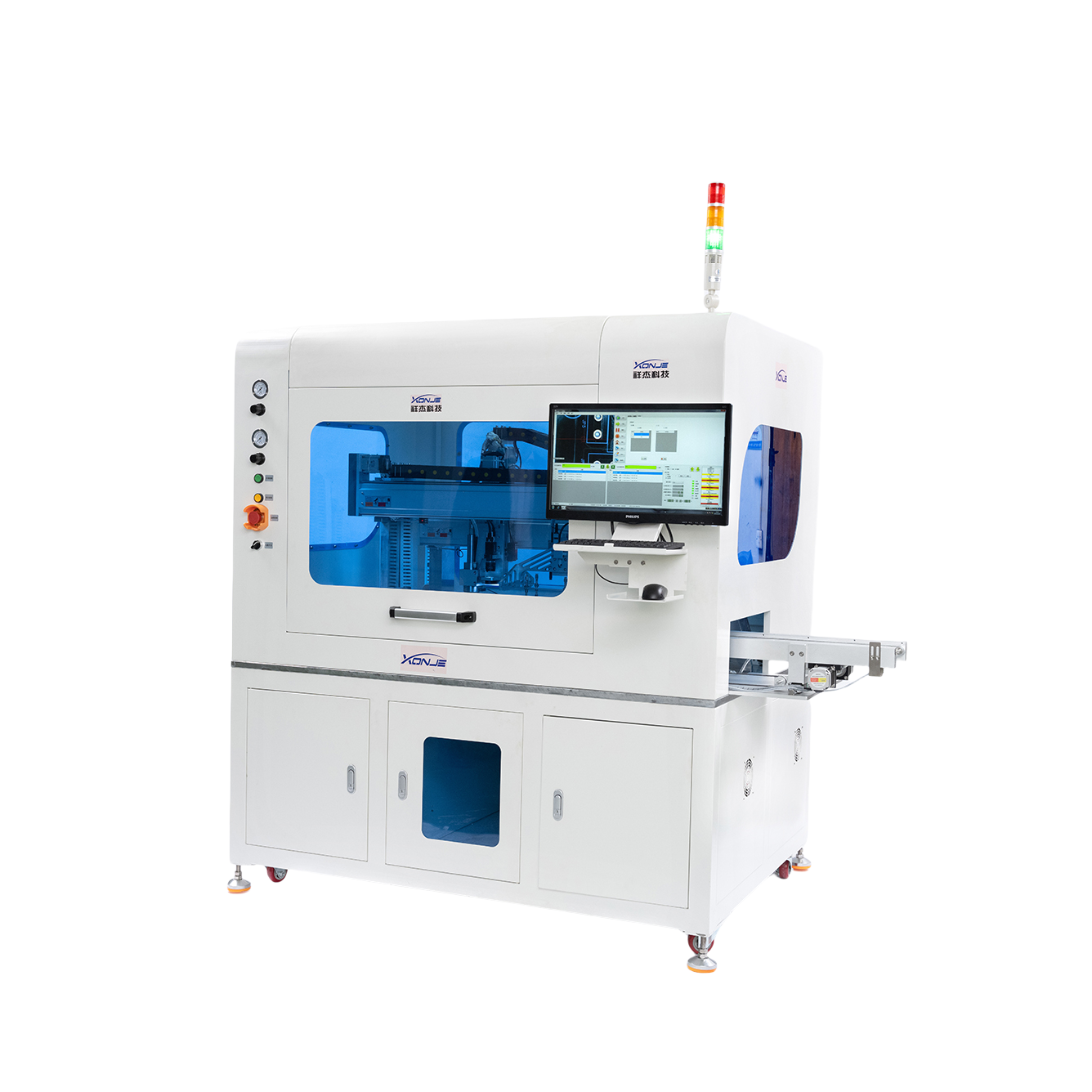

Automatic milling cutter system with servo motion control and imported high-speed spindle for precision PCB separation Automatic milling cutter system with servo motion control and imported high-speed spindle for precision PCB separation

loading

XONJE XJ-Z700 Online Visual Milling Cutter Splitting Machine

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Suitable for cutting PCB stamp holes, curved PCBs, and irregular PCBs. Widely used in industries such as automobiles, power supplies, computers, home appliances, mobile phones, connectors, LED, etc
SKU:
Availability:
Quantity:
Inquire Add to Basket

Product Features:

1. Dual platform stress free cutting


2. CCD vision, MARK point precise positioning, automatic correction


3. Automatic tool change spindle and system


4. Imported high-speed electric spindle


5. Fully automatic and unmanned dual platform efficient cutting


Product Parameter:

ParameterSpecification
Working modeOnline
Number of workbenchesDual workbenches
Partition area280 × 300 mm
Control methodPatented software + industrial computer + servo motor
Splitting speed0–100 mm/s
Positioning accuracy±0.01 mm
Splitting accuracy±0.02 mm
Spindle speed60,000–100,000 RPM
Plate thickness0–6 mm
Vacuum suction methodUpper suction / Lower suction
Working air pressure0.5–0.7 MPa
Working voltageAC 380V, 5 kW
External dimensions1800 mm (L) × 1500 mm (W) × 2200 mm (H)
Weight865 kg


Previous:
Next:
visual pcb router dual platform pcb depaneling machine automatic milling cutter system
KEEP IN TOUCH WITH US
Leave a Message
KEEP IN TOUCH WITH US

Related Products

Front view of XONJE XJ-Z600 multifunction PCB cutting machine with milling and saw blade dual cutting modules for automated online operation
XONJE XJ-Z600 Online Multifunctional Dividing Machine
Front view of XONJE XJ-Z300 guillotine PCB cutter for stress-free inline board separation with microcomputer control system
XONJE XJ-Z300 Online Guillotine Splitting Machine
Front view of XONJE XJ-Z200 inline PCB cutter with automatic feeding, V-cut compatibility, and microcomputer control system
XONJE XJ-Z200 Online Knife Splitting Machine
Front view of XONJE XJVC-12A dual-axis inline PCB cutting machine performing automatic V-slot separation with servo precision control
XONJE XJVC-12A Online V-Slot Dual Direction Splitting Machine
Front view of XONJE XJVC-10A inline rotary table PCB router performing dual-axis V-groove cutting with automatic loading and unloading
XONJE XJVC-10A Online Rotary Table V-Slot Dividing Machine

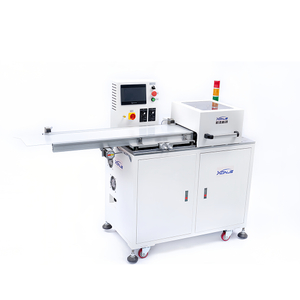

Front view of XONJE XJVC-5L-T automatic width adjustment PCB depaneling system with multi knife configuration
