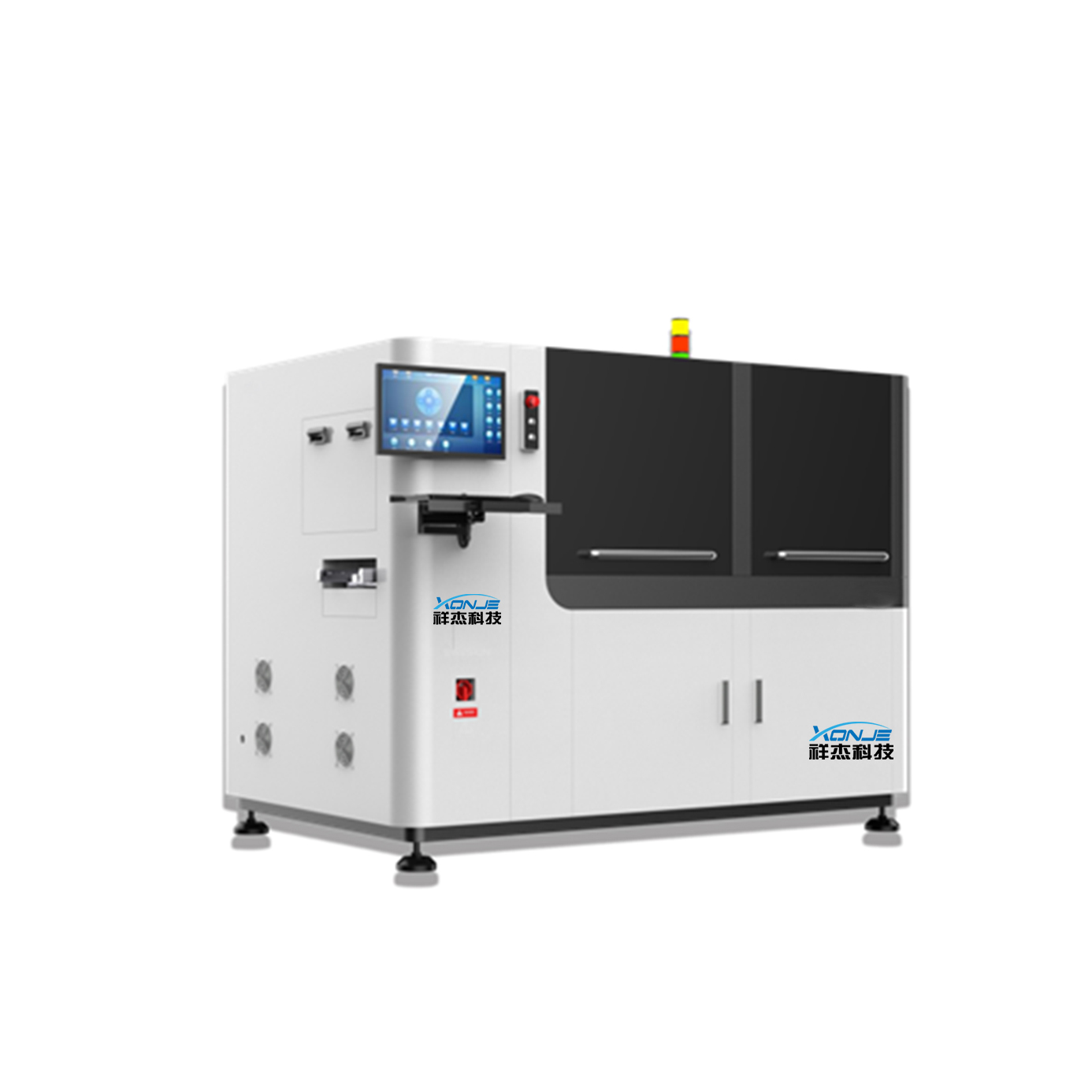

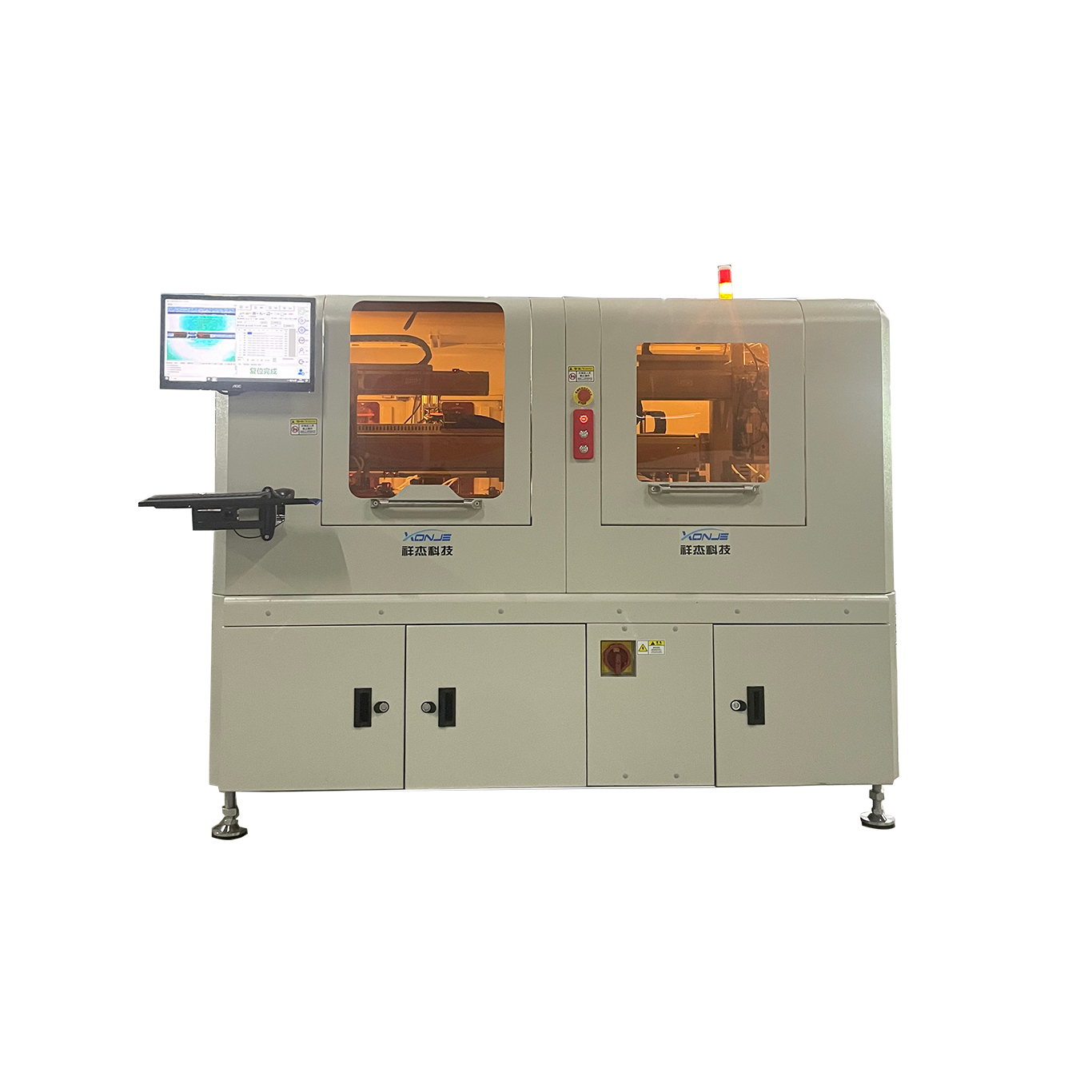

Product Features:
1: All-in-One Multifunctional Design
Integrates splitting, tray handling, QR code scanning, dust collection, and auto loading/unloading to meet diverse production needs.
2: Dual Workstations with Multi-Head Swinging
Supports dual-station operation and multiple milling heads for significantly enhanced productivity.
3: High Precision and Stability
Equipped with high-speed anti-static spindle and optional CCD vision positioning system for accurate and stable cutting.
4: Automatic Tool Change with Breakage Detection
Features automatic tool changing and milling cutter breakage detection for continuous and reliable performance.
5: Vacuum-Assisted PCB Handling
Optional vacuum-assisted PCB fixation and robotic arm handling for stable and efficient board processing.
6: Automatic Fixture Replacement & Fast Line Change
Supports automatic replacement of cutting fixtures, ideal for frequent model changes and reducing line change downtime.
7: Flexible Programming and MES Integration
Offers multifunctional offline programming and optional MES connectivity for automatic X-board removal and QR code scanning.
8: Adaptable to Large and Small Boards
Handles large PCBs directly and swings small boards into trays, suitable for multi-size, high-mix production environments.
Product Parameter:
| Parameter | Specification |
| Control system | X, Y, Z & R axes |
| Motion axis | 16-axis feeding: X; Take board: X; Milling cutter: X/Y/Z; Vehicles: Y1/Y2; High-speed material extraction: X/Z1/Z2/R1/R2; Tray conveyor line: Y; Take Tray: X; Discharging belt: X/Z |
| Control motor | AC servo |
| Positioning accuracy | ±0.01MM |
| Workstation | Dual workstations |
| Transmission direction | From left to right |
| PCB fixing reinforcement | Vacuum assisted PCB board (optional) |
| PCB handling | Vacuum material handling arm |
| Partition area | 280mm x 230mm (customizable) |
| Plate thickness | 0.5–6MM |
| Splitting accuracy | 0.02MM |
| Spindle | High-speed anti-static 100,000 RPM with automatic tool change system |
| Milling cutter specification | 0.8–3.0MM |
| Broken knife detection | Supported |
| Vacuum cleaning system | 5HP lower vacuum cleaning |
| Operating system | Windows 10 |
| Programming | Online programming / 10x CCD camera or scanning full image graphical programming / Offline programming |
| Weight | 1400KG |
| External dimensions | 1950 (L) x 1550 (W) x 1600 (H) mm |
| Power supply requirements | 3-phase AC380V 50Hz 13KW |
