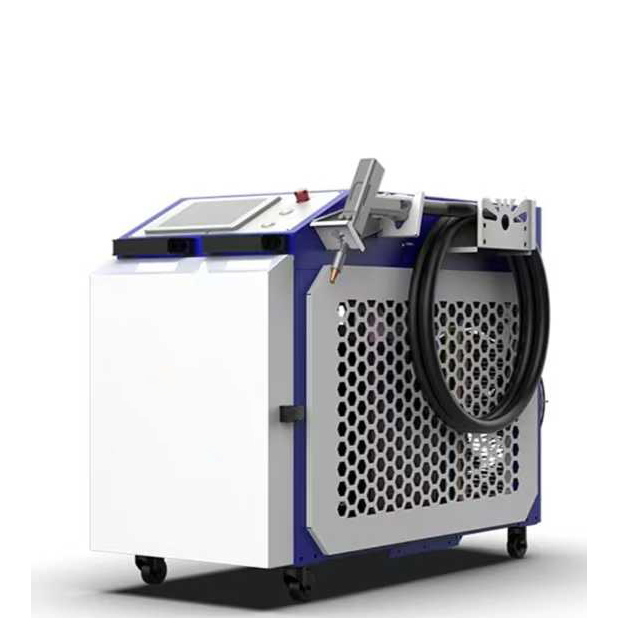

3-in-1 portable fiber laser welder for metal welding cutting and cleaning

High-power 1500W 2000W 3000W laser welding machine for industrial metalwork

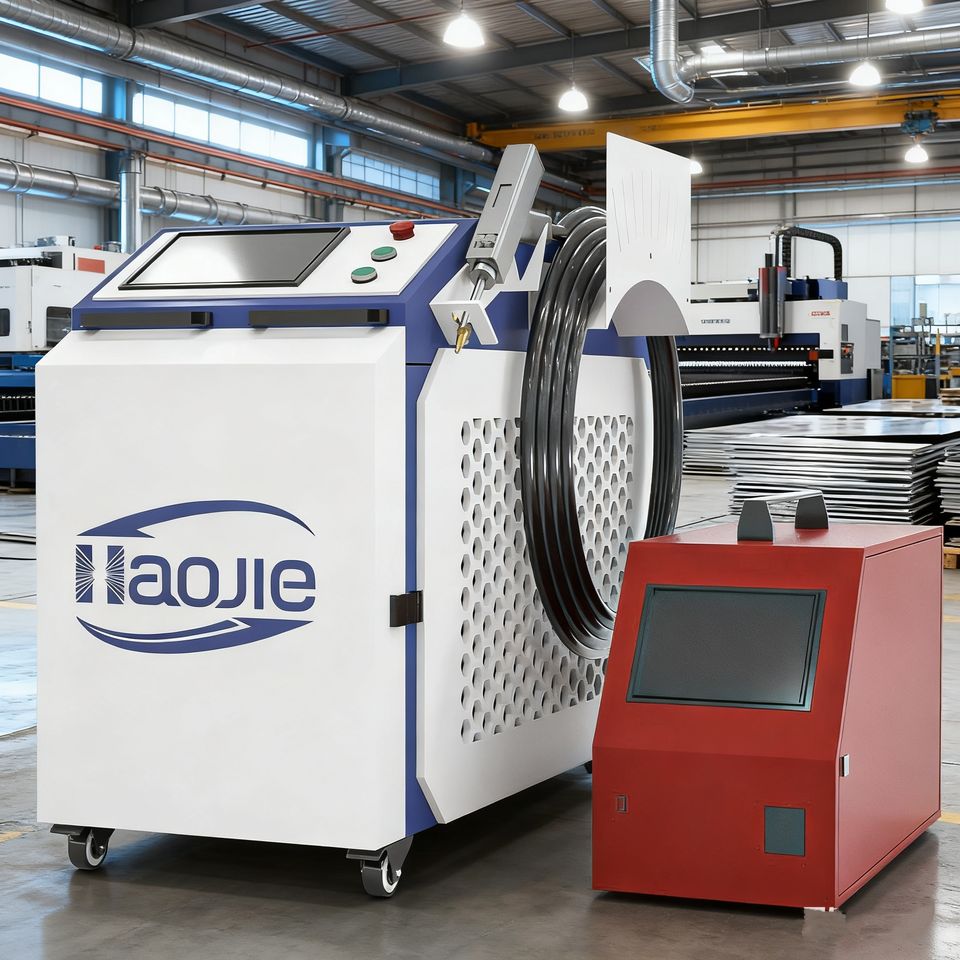

Handheld laser torch system for welding stainless steel and aluminum

Water-cooled laser welding system with intelligent control interface

1500w 2000w 3000w Portable 3 in 1 Laser Welder Laser Welding Machine for Metal

The 3-in-1 Portable Laser Welder integrates welding, cutting, and cleaning functions into a compact, high-power fiber laser system available in 1500W, 2000W, and 3000W options. Designed for professional metal fabrication, it features single-mode laser output, water-cooled stability, multilingual touch control, and a 10–20 meter handheld torch for flexible operation. With deep penetration, fast processing speed, and smooth seam quality, this machine is ideal for stainless steel, carbon steel, aluminum, hardware manufacturing, equipment repair, metal furniture, construction, and on-site industrial applications. Its fully optimized internal structure, terminal block layout, safe wiring, and high-quality fiber jacket ensure long service life and reliable performance.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• Rotary Glow Button – Easy Operation

User-friendly glowing control knob for quick adjustment and intuitive operation.

• Optimized Electrical Distribution Panel

Neatly labeled, separated air/electrical circuits ensure safe and logical system structure.

• High-Quality Fiber Jacket & International Wire Feeder Power Interface

Flame-retardant and wear-resistant fiber optic jacket; universal power supply for global use.

• Maintenance-Friendly Terminal Block Design

Internal components use terminal block layout for easy inspection and servicing.

• Complete Accessory Package

Includes protective glasses, fixed valve design, clean internal wiring, and heavy-duty extended power cable.

Products Specification:

Item	HJ-1500W	HJ-2000W	HJ-3000W
Laser Power	1500W	2000W	3000W
Laser Wavelength	1064–1080 nm	1064–1080 nm	1064–1080 nm
Light Spot Mode	Single-Mode	Single-Mode	Single-Mode
Adjustable Power Range	10–100%	10–100%	10–100%
Fiber Core Diameter	30 μm	30 μm	50 μm
Aiming & Positioning	Red Light Positioning	Red Light Positioning	Red Light Positioning
Welding Torch Length	Standard 10m (optional 15m / 20m)	Same	Same
Wire Feeder	Standard	Standard	Standard
Cooling Method	Water Cooling	Water Cooling	Water Cooling
Working Environment	-40°C ~ 60°C	-40°C ~ 60°C	-40°C ~ 60°C
Operating Voltage	220V ±10%	220V ±10%	380V ±10%
Maximum Power Consumption	≤5 kW	≤6 kW	≤8 kW
Machine Size (L×W×H)	900 × 650 × 1050 mm	900 × 650 × 1050 mm	1250 × 650 × 1050 mm
Weight	Welding machine ≈120 kg; wire feeder ≈15 kg	Same	≈160 kg
Operating System	26 languages (Chinese, English, Russian, etc.)	Same	Same
