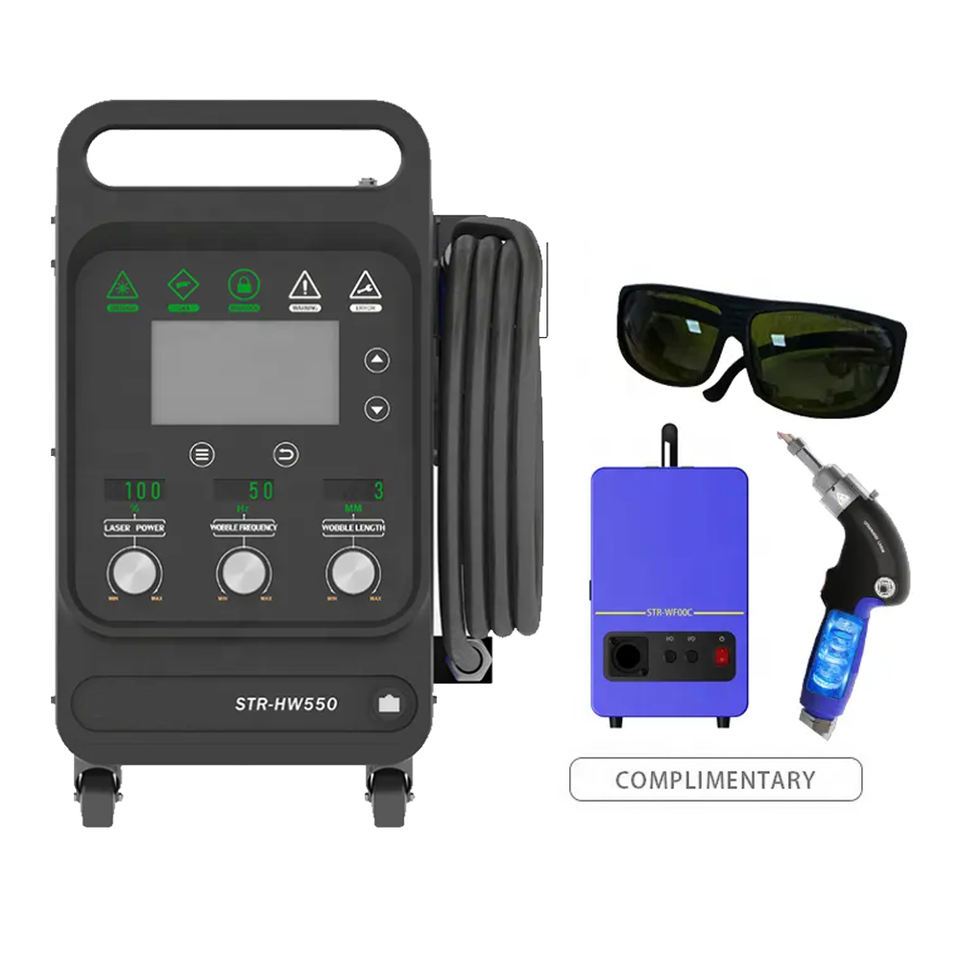

Portable 2-in-1 handheld laser cutting and welding machine for metal fabrication

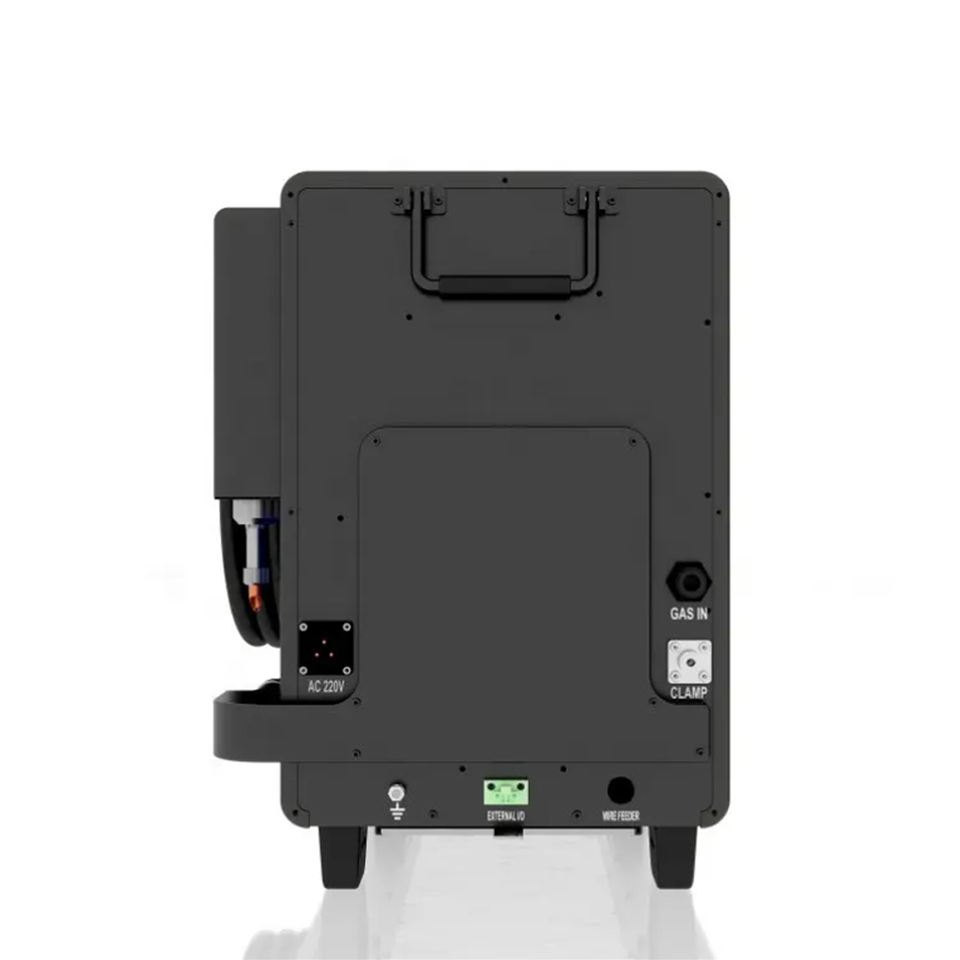

900W to 1200W laser cutter welder with dual-circuit cooling system

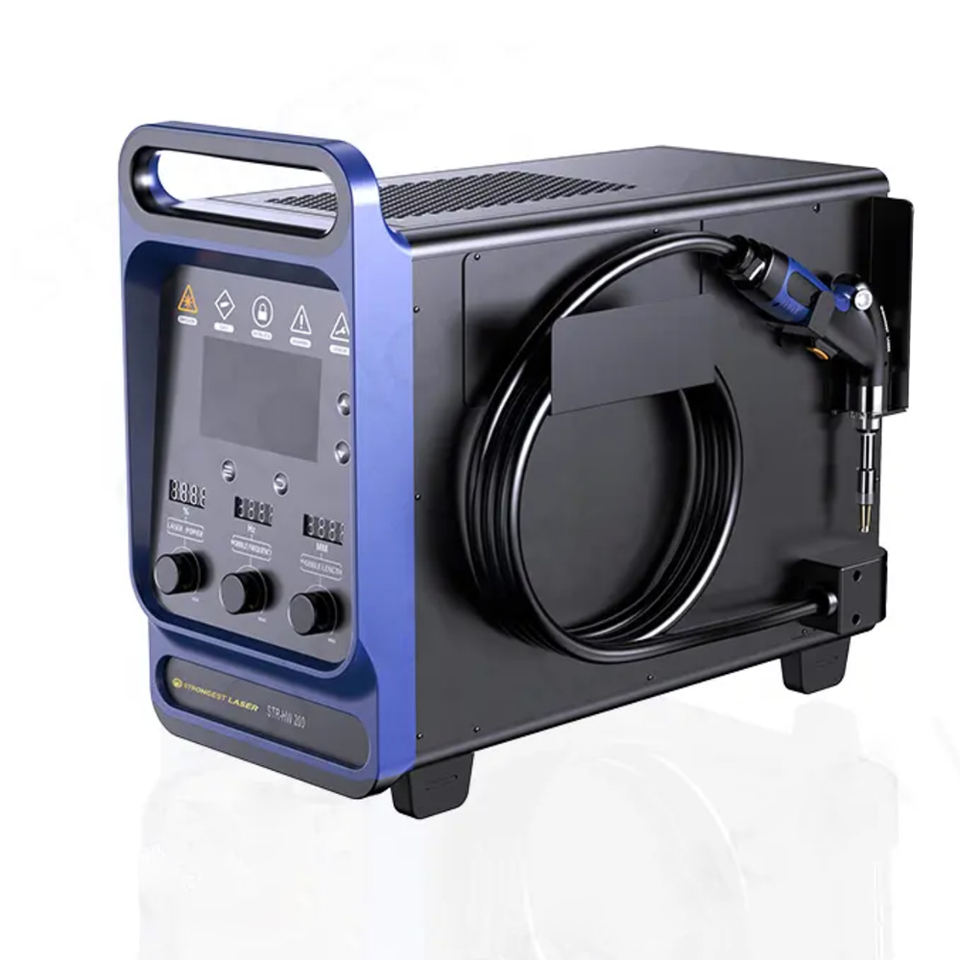

Compact metal laser welding and cutting device for 0.2–6mm steel and aluminum

2-in-1 Portable 0.2-6mm Thickness 2000W-3000W Handheld Laser Cutting/Welding Cleaning Machine

This portable 2-in-1 handheld laser cutting and welding machine is designed for metal sheets ranging from 0.2 to 6mm. Powered by a high-efficiency 900–1200W laser source, it delivers fast, stable, and precise performance for both welding and fine cutting applications. The compact structure, dual-circuit refrigerant cooling system, and multi-mode welding capabilities make it ideal for workshops, maintenance tasks, and on-site operations requiring high-quality joints and clean cuts. With multiple preset process packages and easy operation, it ensures consistent results and reduced labor intensity.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

• 2-in-1 Cutting & Welding Functionality

Performs high-precision metal welding and smooth laser cutting using a single compact handheld device.

• High Stability & Wide Material Compatibility

Supports multiple metal materials with adjustable wire diameters from 0.8–1.6mm, suitable for 0.2–6mm thickness.

• Dual-Circuit Refrigerant Cooling System

Ensures continuous high-power operation with stable temperature control and extended machine lifespan.

• High Efficiency With Multiple Preset Modes

24–40 built-in welding process packages plus 20 customizable modes for different metals and joint types.

• Lightweight Portable Design

Compact body and ergonomic handheld torch allow easy on-site work, maintenance, and batch production.

Products Specification:

Project	Unit	HW350	HW450	HW550
Laser Power	W	900W	1000W	1200W
Rated Input Power Supply	–	Single-phase 220V	Single-phase 220V	Single-phase 220V
Input Power Frequency	Hz	50/60	50/60	50/60
Rated Input Power	W	3800	4200	5400
Welding Speed	cm/min	20–200	20–200	20–200
Cooling Mode	–	Dual-Circuit Refrigerant Direct Cooling	Same	Same
Working Temperature	°C	-20 to 60	-20 to 60	-20 to 60
Working Humidity	%	-30 to 70	-30 to 70	-30 to 70
Product Dimensions	mm	673×605×310	673×605×310	673×605×310
Product Weight	kg	43	43	45
Applicable Wire Diameter	mm	0.8 / 1.0 / 1.2 / 1.4 / 1.6	Same	Same
Preset Process Packages	unit	24	30	40
Customizable Process Packages	unit	20	20	20
Output Mode	–	Integrated armored cable + welding gun	Same	Same
Welding Mode	–	Spot / Continuous Spot / Pulse Welding / Continuous Welding	Same	Same
