Machine Features:
Compact, ergonomic handheld welding gun designed for long-duration comfortable operation
High-quality nozzle head with built-in swing function for stable continuous welding
Nozzle can be quickly replaced for different welding modes (fusion welding, wire welding, repair welding)
Suitable for welding stainless steel, carbon steel, aluminum, copper, and various metal structures
Machine Accessories:
• Fiber Laser Generator
High beam quality
High electro-optical efficiency
Compact internal structure
Long service life (up to 100,000 hours)
Center wavelength: 1080 ± 5 nm
• Industrial Water Chiller
Water-cooled system provides superior cooling performance compared to air-cooled units
Ensures laser stability under high-duty operation
Designed for harsh industrial environments
Optimized internal structure improves heat dissipation
• Automatic Wire Feeder
Precisely controls wire feeding speed
Automatically adjusts speed based on welding parameters
Adjustable tension and speed for different materials
Ensures smooth, continuous wire delivery
Improves weld quality and operator stability
• OD8+ Protective Welding Helmet
Provides OD8+ level optical protection
Full head and face coverage against UV, IR and sparks
Lightweight, breathable, suitable for long-term wearing
Adjustable headband for different user sizes
• Follow-Up Loading Support
Supports round pipes and square tubes during welding
Automatically adjusts alignment height
Ensures accurate centering of the pipe
High precision positioning improves welding quality
• Tool Box
Includes adjustment screws, cleaning tools, spare protective lenses, sealing rings
Contains operation manuals and cabinet keys
Helps users perform maintenance and consumable replacement conveniently
Products Specification:
| Item | Specification |
| Model | KFCW-1500W |
| Laser Power | 1500W |
| Laser Wavelength | 1080 ± 5 nm |
| Cooling Type | Water Cooling |
| Spot Adjustment Range | 0.1–3 mm |
| Repeat Positioning Precision | ±0.01 mm |
| Auto Wire Feeder | Included |
| Working Voltage | 220V, Single Phase, 50 Hz |
| Machine Dimensions (L×W×H) | 1550 × 750 × 1450 mm |
| Machine Weight | 260 kg |

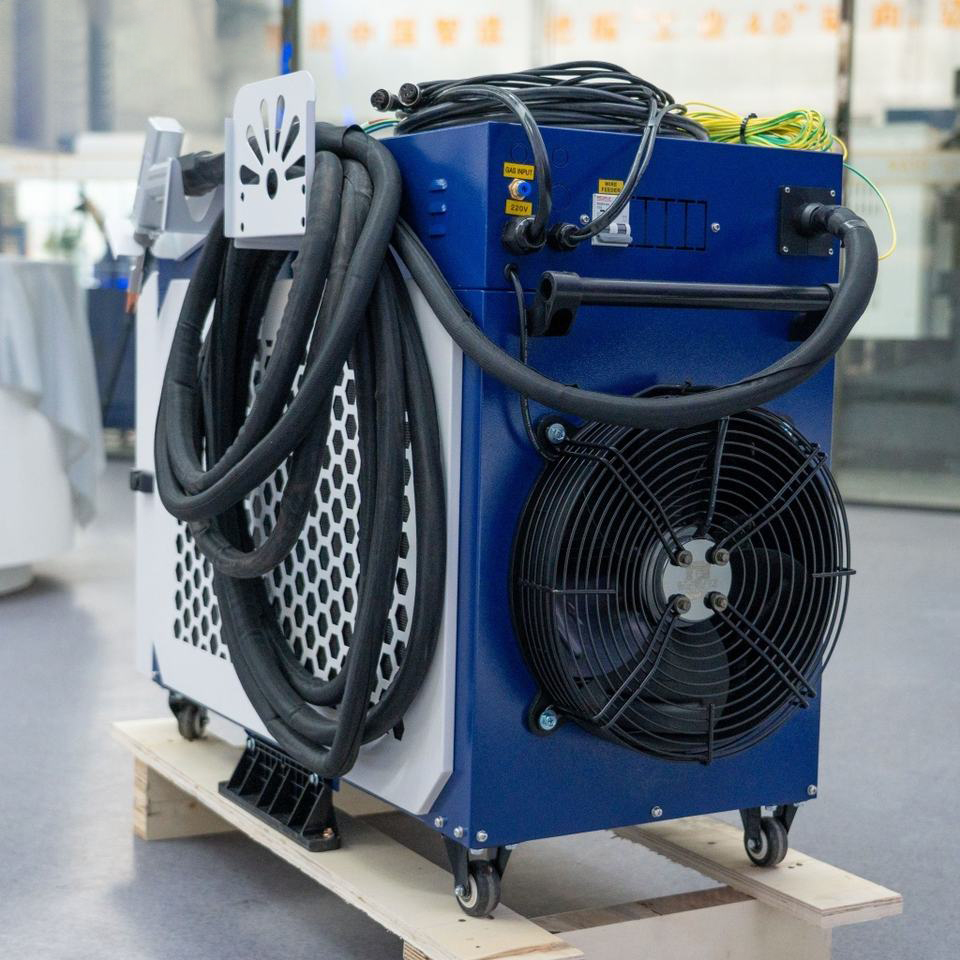

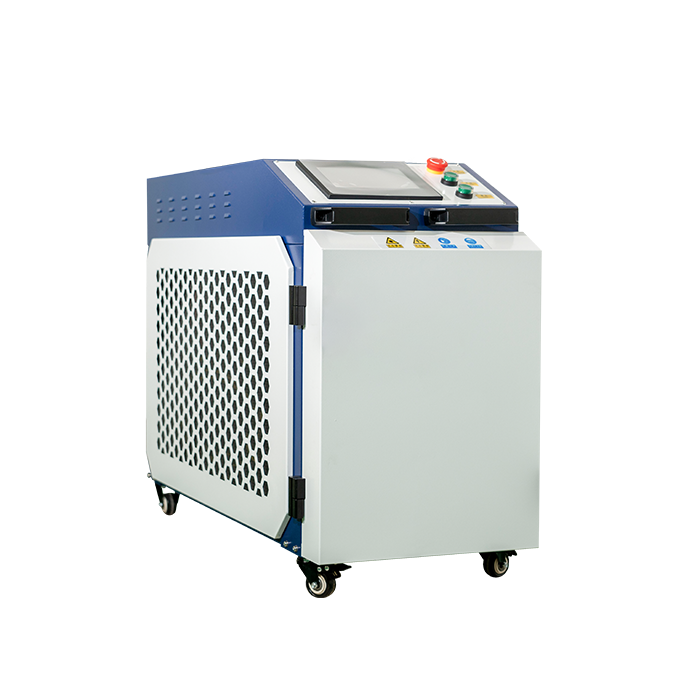

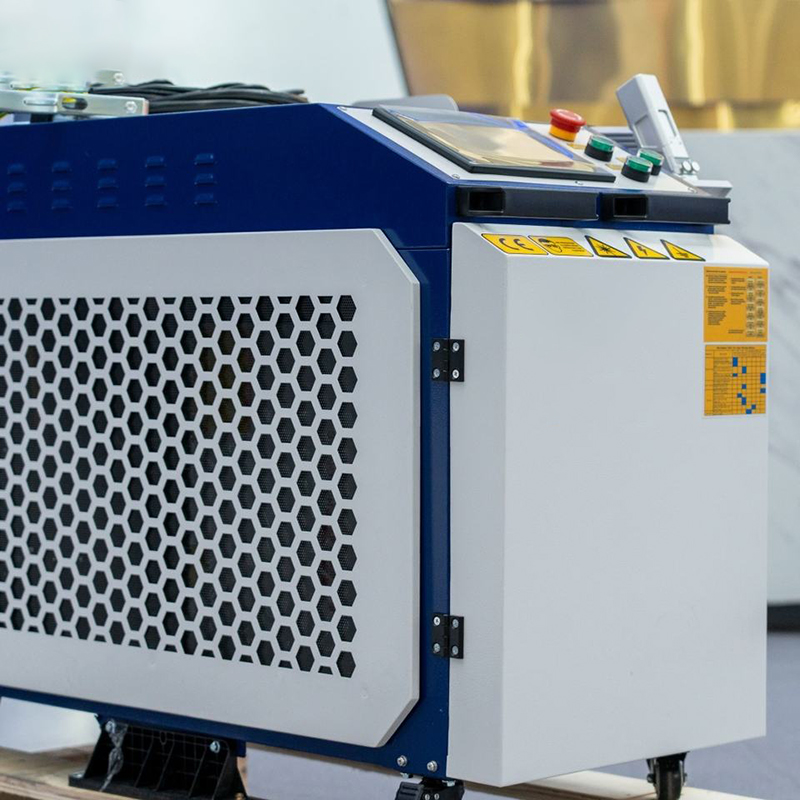

Products Pictures:
