Machine Features:
• High Electro-Optical Conversion Efficiency
Efficient laser output with low energy loss ensures excellent welding performance.
• Excellent Beam Quality & High Output Stability
Stable continuous-wave output delivers smooth, consistent welds with minimal heat distortion.
• Compact All-Fiber Structure, Maintenance-Free
Mini air-cooled design with robust fiber architecture reduces maintenance cost and improves reliability.

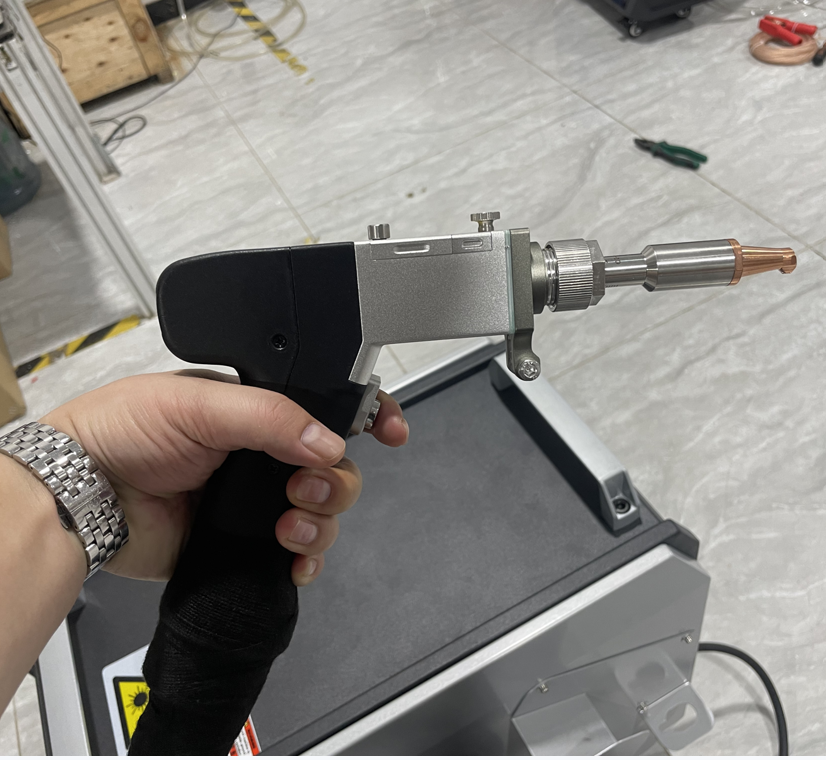

• Lightweight Handheld Welding Head
Ergonomically designed for long-duration use; ideal for complex or irregular welding applications.
• Intelligent Internal System with Safety Protection
Built-in safety alarms, automatic light-locking after removing the workpiece, and fast overheating protection.
• Wide Compatibility with Metal Materials
Suitable for stainless steel, carbon steel, aluminum plates, iron plates, stair railings, windows, furniture frames, distribution boxes, and more.
• Beautiful, Clean Welds with No Post-Grinding Needed
Produces small, smooth welds with minimal heat effects—no discoloration, deformation, or consumables required.
• Optional Multi-Angle Nozzles
Supports different nozzle geometries for various welding positions and product shapes.
Products Specification:
| Category | Specification |
| Rated Output Power | ≤1000W（Expended 1500W） |
| Working Mode | Continuous |
| Laser Wavelength | 1080 ± 3 nm |
| Polarization Direction | Random |
| Output Power Adjustment Range | 10–100% |
| Output Power Instability | < 3% |
| Indicator Red Light Power | >0.5 mW |
| Output Interface | QBH |
| Output Fiber Core Diameter | 20 μm (optional: 30 / 50 μm) |
| Fiber Armor Length | Standard 5m (optional 10m) |
| Aiming & Positioning | Red Light |
| Working Voltage | 220V ± 10%, 50/60Hz |
| Maximum Power Consumption | <3000W |
| Control Method | Display / Host Computer |
| Cooling Method | Air Cooling |
| Working Environment | 5–40°C, humidity compliant |
| Storage Temperature | 0–60°C |
| Machine Dimensions | 585 × 377 × 540 mm |
Products Pictures:
