| Specification | unit | GL-500 | GL-630 | GL-800 | GL-1000 |
| Worktable area (W×L) | mm | 500×1250 | 630×1250 | 800×1800 | 1000×2000 |
| Number of T-slots | mm | 5 | 5 | 7 | 7 |
| T-slot width | mm | 18 | 18 | 22 | 22 |
| T-slot pitch | mm | 80 | 125 | 100 | 125 |
| Worktable Longitudinal stroke | mm | 1400 | 1600 | 2000 | 2200 |
| Spindle sleeve expansion | mm | 110 | 110 | 110 | 110 |
| Distance from spindle centerline to Worktable surface | mm | 150 | 150 | 150 | 220 |
| Spindle taper hole | ISO50 | ISO50 | ISO50 | ISO50 | |
| Spindle speed range | rpm | 124;201;293;472 | |||
| Number of spindle speed steps | Four gears (requires external wheel change) | ||||
| Feed range (Longitudinal) | mm/min | 48;80;128 | 48;80;128 | 48;70;115 | 70;120;190 |
| Rapid traverse (Longitudinal) | mm/min | 3200 | 3200 | 2350 | 2200 |
| Prime mover power | kw | 7.5 | 7.5 | 9 | 7.5 |
| Feed motor power | kw | 1.1,2.2 | 1.1,2.2 | 2.2,3.3 | 3 |
| Maximum weight of Worktable | kg | 1600 | 1800 | 2500 | 3000 |
| Net weight of machine | kg | 4500 | 5200 | 8000 | 1100 |
Products Features
1:High Torque Cutting: The machine supports powerful cutting operations with standard large cutter heads (Φ315～Φ400), suitable for heavy-duty tasks.
2:Wear-Resistant Guideways: The worktable guideways are designed with plastic-coated, wear-resistant surfaces, providing excellent durability and high rigidity for long-term precision.
3:Independent Power Head: The power head is an independent unit, allowing users to adjust the processing height with height blocks as needed, expanding the processing range.
4:Solid and Reliable Structure: The machine adopts a high-rigidity structure, offering outstanding stability and reliability, capable of adapting to various complex processing environments.
Applications
The GL-630 Horizontal Powerful Milling Machine is particularly suitable for the mold manufacturing industry, efficiently processing the end faces of various large, medium, and small parts. Additionally, this machine excels in fields such as engineering machinery and automotive parts manufacturing, making it ideal for tasks requiring high-strength milling. Its high rigidity and powerful cutting capabilities make it an excellent tool for heavy-duty, precision machining, meeting the demands of complex part processing.

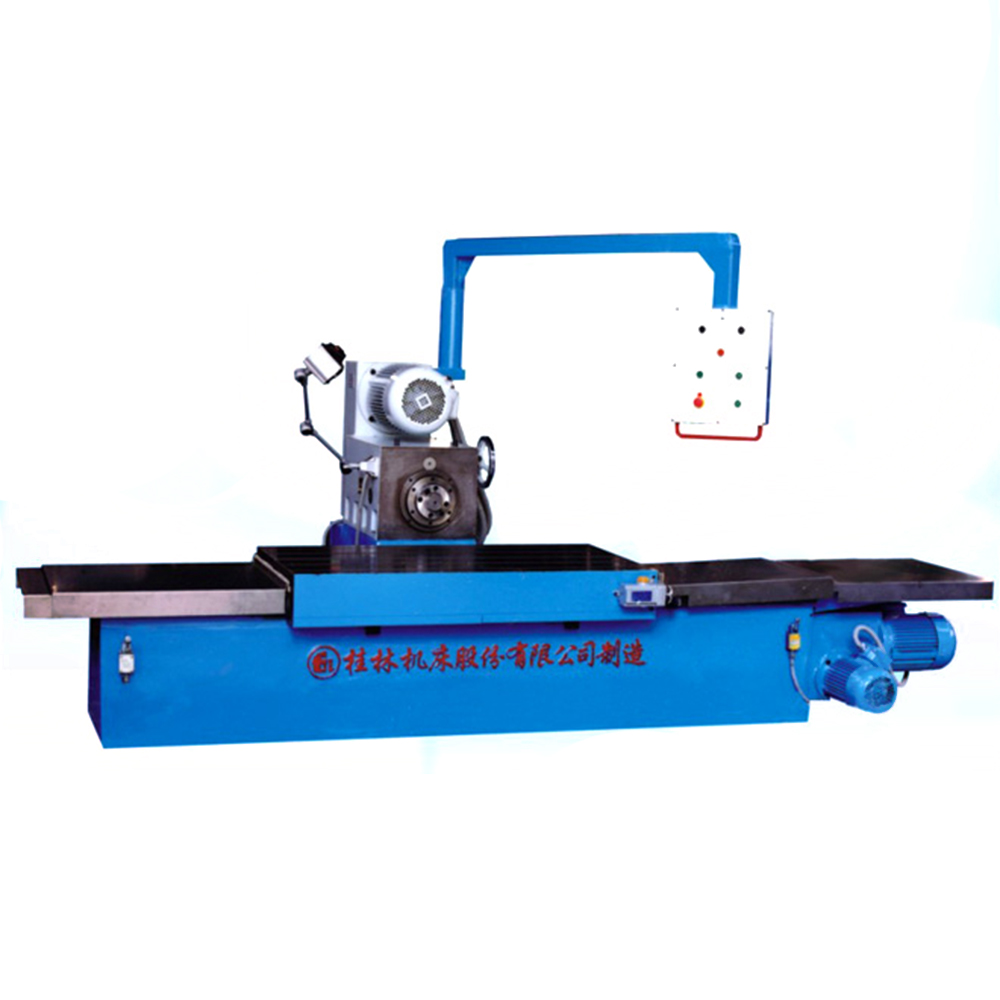

Products Pictures
