| Quantity: | |
|---|---|
| Specification | unit | X6130T | X6132T | X6136T | |
| Worktable area (W×L) | mm | 300×1300 | 320×1400 | 360×1400 | |
| Worktable T-slots | Number of slots | 3 | |||
| Slot width | mm | 14 | 18 | ||
| Slot distance | mm | 45 | 45 | ||
| Worktable Stroke | Longitudinal | mm | 800 | ||
| Horizontal | mm | 310 | |||
| vertical | mm | 420 | |||
| Spindle taper hole serial number | ISO40 | ||||
| Spindle speed | Range | r/min | 32～1700 | ||
| Number of Levels | grade | 18 | |||
| Distance from spindle centerline to Worktable surface | Minimum | mm | 20 | ||
| Maximum | mm | 440 | |||
| Worktable feed range | Longitudinal | mm/min | 13～1000 | ||
| Horizontal | mm/min | 13～1000 | |||
| vertical | mm/min | 4.5～350 | |||
| Number of Worktable Feed Stages | grade | 24 | |||
| Worktable rapid feeds | Longitudinal | mm/min | 2100 | ||
| Horizontal | mm/min | 2100 | |||
| vertical | mm/min | 700 | |||
| Maximum rotary angle of Worktable | ±45° | ||||
| Power of Prime mover | kw | 4 | |||
| Feed motor power (two-speed) | Nm | 1.1/0.85 | |||
| Maximum drag force of Worktable | KN | 10 | |||
| Maximum load capacity of Worktable | kg | 350 | 500 | ||
| Net weight of machine | kg | 2100 | 2250 | 2350 | |
| Machine volume (L×W×H) | cm | 187×182×176 | 192×182×176 | ||
Products Features
1:Compact and Robust: Small in size yet highly rigid, suitable for high-intensity machining tasks.
2:Compact Structure: Space-saving and easy to operate due to its well-designed layout.
3:Efficient Machining: Equipped with a dual-speed feed motor, capable of various machining processes such as surface milling, slot milling, drilling, and boring.
4:Automatic Lubrication: Fully automatic lubrication system ensures stable long-term operation and prolongs machine lifespan.
5:Tool Compatibility: Compatible with high-speed steel and carbide tools, meeting diverse machining needs.
Applications
The X(S)6130T(Digital Readout) Horizontal Lift Table Milling Machine is widely used in industries such as machinery manufacturing, mold processing, and metal component manufacturing. Its efficient machining capabilities and multifunctional nature make it well-suited for handling complex part processing tasks, particularly for machining steel, cast iron, and non-ferrous metals. Whether for surface milling, slot milling, drilling, or boring, the X(S)6130T delivers exceptional machining precision and efficiency, catering to the diverse needs of various industries.

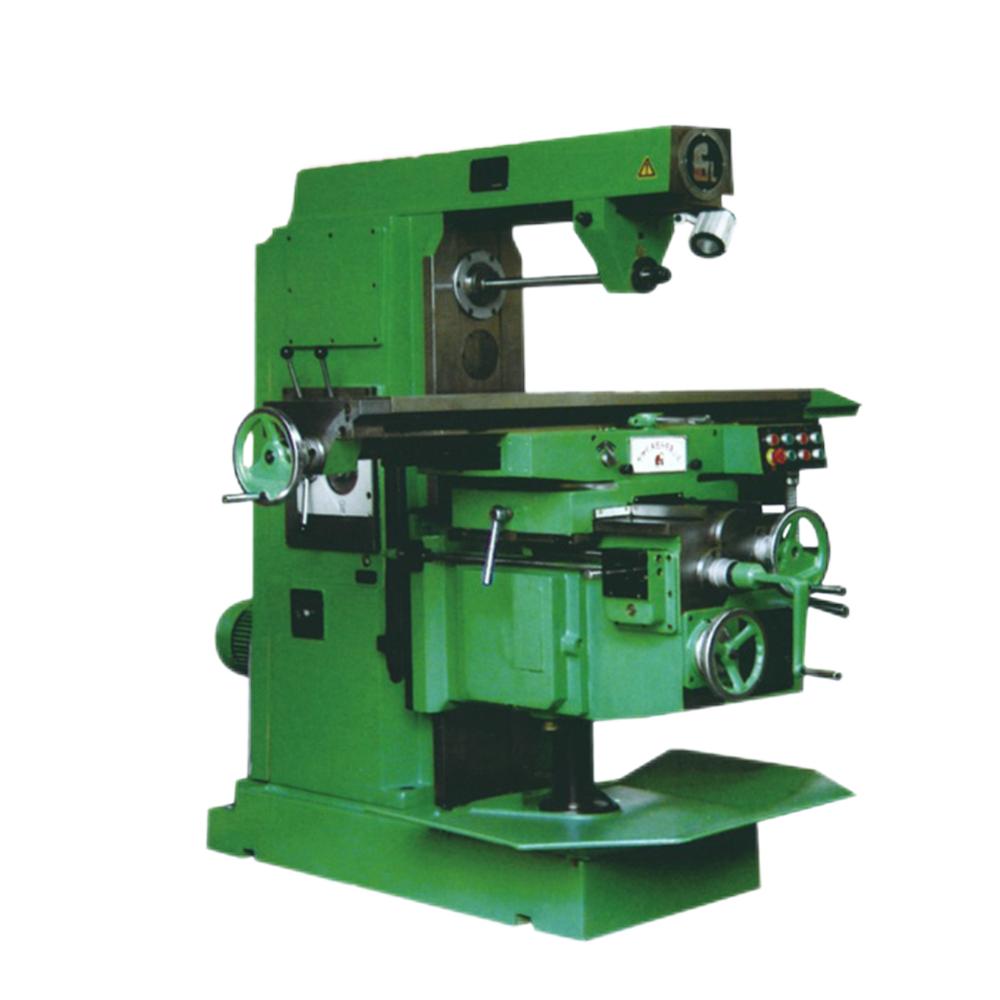

Products Pictures
