| Specification | unit | X2312 | X2316/3 | X2320/4 | |
| XS2312 | XS2316/3 | XS2320/4 | |||
| Workbench area (width × length) | mm | 1200×2000 | 1600×3000 | 2000×4000 | |
| Workbench T-slot (number of slots × width × slot spacing) | mm | 9×22×125 | 9×28×160 | 9×28×200 | |
| Workbench longitudinal travel | mm | 2000 | 3000 | 4000 | |
| Ram stroke | Horizontal | mm | 1600 | 2200 | 2600 |
| Vertical | mm | 800 | 1000 | 1000 | |
| Minimum distance from spindle end to worktable | mm | 150 | |||
| Main motor power | kw | 22 30 | |||
| Spindle speed | Range | rpm | 10-2500 | ||
| Level | infinitely variable | ||||
| Spindle taper | BT50 | ||||
| Three-way rapid traverse speed | mm/min | 4000 | |||
| Three-way cutting feed speed | mm/min | 5-1500 | |||
| Digital positioning accuracy | mm | ±0.02/300(Only for XS23 series) | |||
| Digital repeat positioning accuracy | mm | ±0.01/300(Only for XS23 series) | |||
| Maximum load of worktable | kg | 6000 | 8000 | 12000 | |
| Net weight of machine tool | kg | 38000 | 57200 | 78000 | |
Products Features
1: Advanced Structural Design: Equipped with large-scale linear rolling guides, ensuring high dynamic responsiveness and precise movement of the machine.
2: Efficient Spindle System: The main drive adopts Schneider or ABB AC variable frequency speed regulation system, combined with gear-based high-low speed shifting to achieve automatic spindle speed control with strong cutting capability and high efficiency.
3: Automatic Lubrication: The machine is equipped with a timed and quantitatively automatic lubrication system, ensuring reliable lubrication of all parts during extended operation, thereby prolonging its service life.
4: Accurate Feed System: The feed movement is controlled by a domestic brand stepless speed regulation system, allowing for rapid feed, working feed, and micro-feed, ensuring high precision in machining.
5: Flexible Configuration: Optional features include full enclosure guards, automatic chip removal systems, and either imported or domestic ball screw gratings, providing users with customizable configurations.
Applications
The X(S)2312 Fixed Beam and Column Gantry Milling Machine is especially suitable for manufacturing environments that require high-precision multi-surface machining of large, complex parts, such as in aerospace, automotive manufacturing, shipbuilding, and mold-making industries. Its powerful spindle torque and high degree of automation enable users to clamp the workpiece once and complete multiple processes in sequence, greatly improving production efficiency while reducing clamping errors and time.

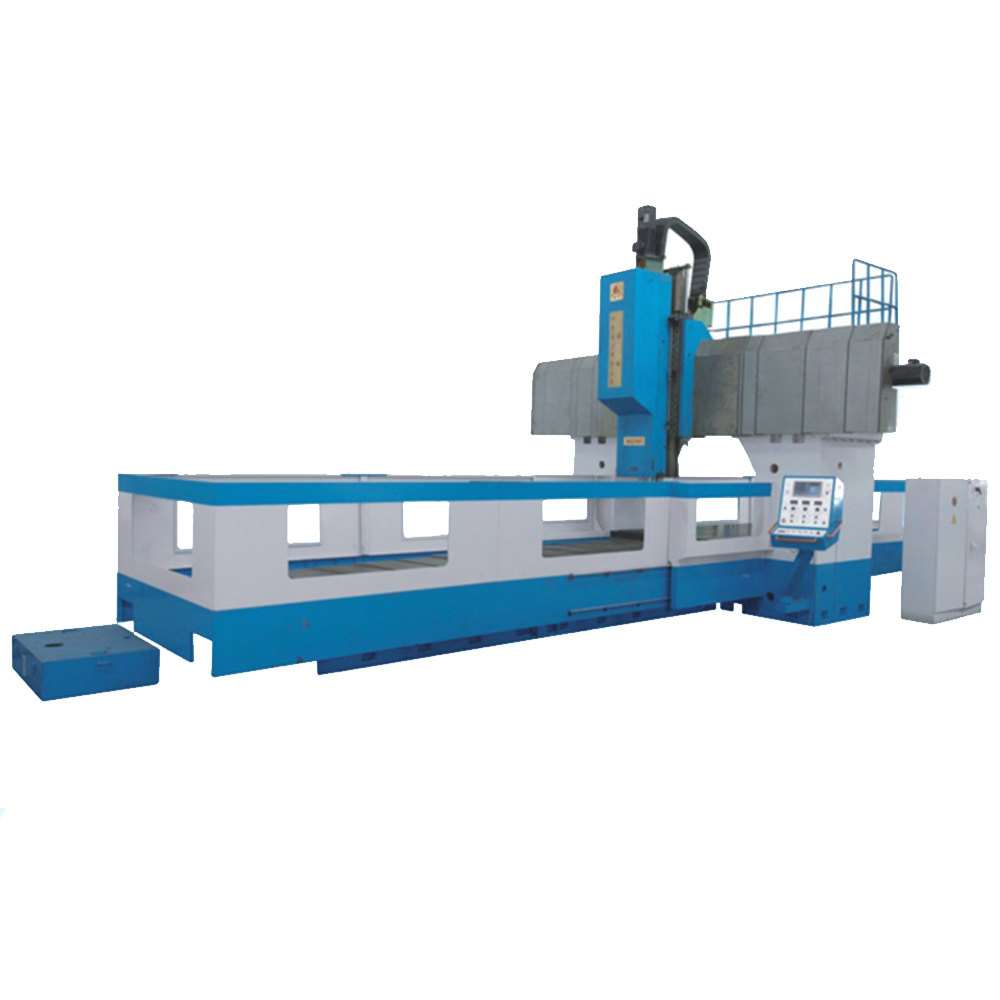

Products Pictures
