| Main technical parameters | Unit | XA5040 |
| Working table size | mm | 1700×400 |
| Number of T-slots, slot width, slot spacing | 3/18/90 | |
| X-direction (longitudinal direction of the working table, manual/motorized) | mm | 900/880 |
| Y-direction (lateral direction of the slide, manual/motorized) | mm | 315/300 |
| Z-direction (vertical direction of the lifting platform, manual/motorized) | mm | 385/365 |
| Rapid moving speed | mm/min | 2300/1540/770 |
| Spindle aperture | mm | 29 |
| Spindle aperture taper | 7:24 ISO50 | |
| Spindle speed range | r/min | 30~1500 |
| Spindle speed series | steps | 18level |
| Spindle axial moving distance | mm | 85 |
| Maximum rotation angle of the vertical milling head | ±45° | |
| Distance from the spindle end face to the working table surface | mm | 30-500 |
| Distance from the spindle centerline to the vertical guide surface of the bed | mm | 450 |
| Feed motor power | kw | 3 |
| Main drive motor power | kw | 11 |
| Machine tool dimensions | mm | 2556×2159×2258 |
| Machine tool weight (net weight) | kg | 4250/4350 |

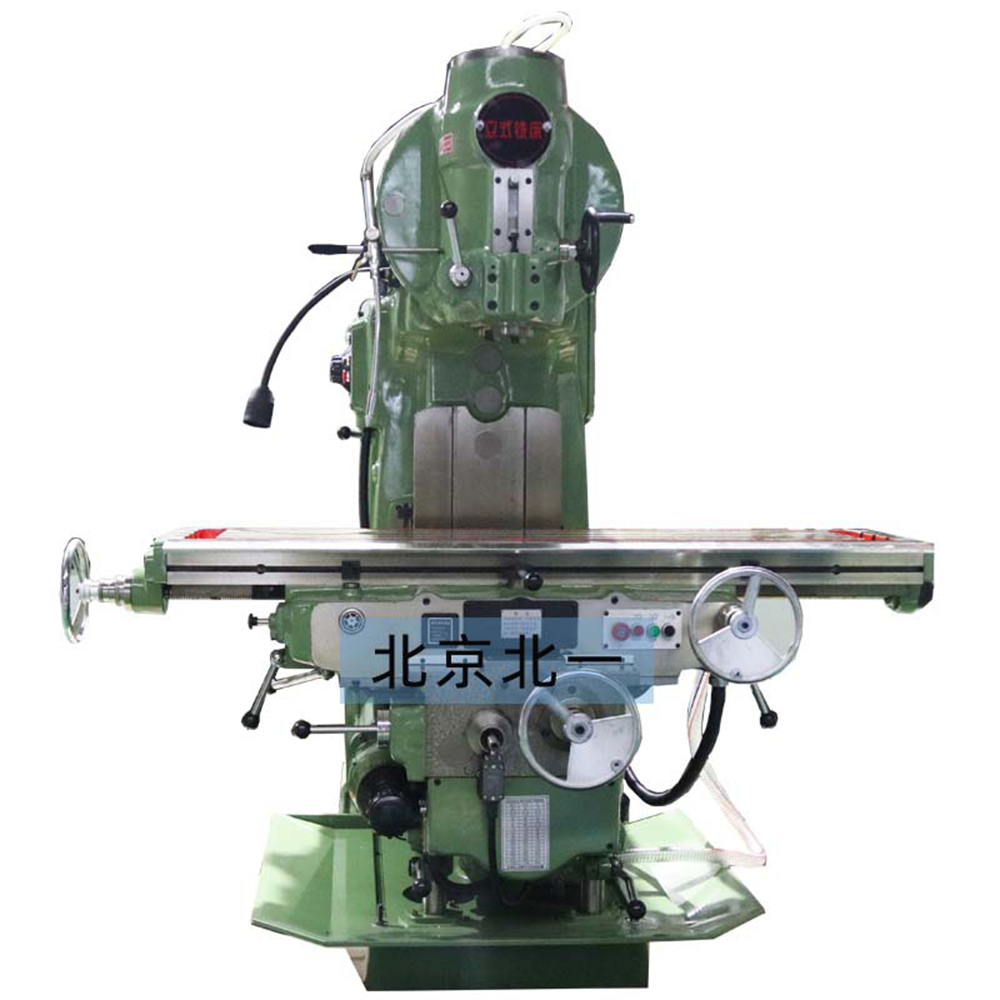

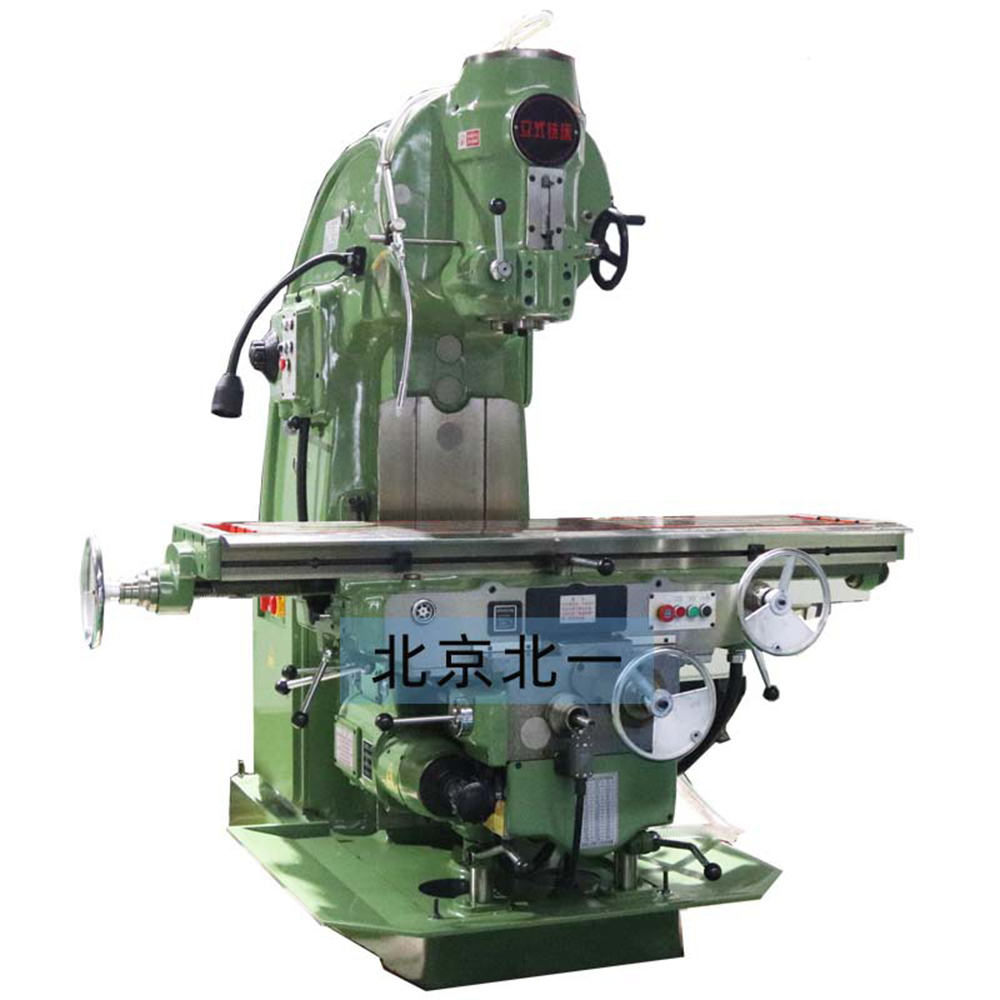

Products Pictures
