| Quantity: | |
|---|---|
| Specification | unit | X6225 | X6230 | |
| Worktable area (W×L) | mm | 250×1120 | 300×1120 | |
| Worktable T-slots | Number of slots | 3 | ||
| Slot width | mm | 14 | ||
| Slot distance | mm | 63 | ||
| Worktable Stroke | Longitudinal | mm | 700 | |
| Horizontal | mm | 300 | ||
| vertical | mm | 400 | ||
| Spindle taper hole | ISO40 | |||
| Rotation angle of milling head | Front hemisphere any 360° | |||
| Spindle speed | Horizontal Spindles | r/min | 55～2150(18stage) | |
| Universal milling spindle | r/min | 50～1800(12stage) | ||
| Distance from vertical guideway surface to center of Worktable | mm | 200～500 | ||
| Distance from spindle of universal milling head to vertical guideway | mm | 145～445 | ||
| Worktable feed range | Longitudinal | mm/min | 22～1000 | |
| Horizontal | mm/min | 15～700 | ||
| Vertical | mm/min | 8～360 | ||
| Worktable rapid feeds | Longitudinal | mm/min | 2200 | |
| Horizontal | mm/min | 1540 | ||
| Vertical | mm/min | 790 | ||
| Maximum rotary angle of Worktable | ±45° | |||
| Main motor power | kw | 5.5 | ||
| Power of main motor of ram | kw | 3 | ||
| Feed motor torque | Nm | 15 | ||
| Maximum load capacity of Worktable | kg | 250 | ||
| Net weight of machine | kg | 2500 | ||
| Machine volume (L×W×H) | cm | 194×191×196 | ||
Products Features
1:Versatile Milling Capabilities: Suitable for milling flat surfaces, grooves, and various metalworking tasks, supporting both up-milling and down-milling.
2:High Precision and Flexibility: Stable precision and flexible operation with motorized feeds and rapid adjustments in the longitudinal, lateral, and vertical directions.
3:Comprehensive Accessory Setup: Equipped with a wide range of machine accessories for multi-purpose use, meeting diverse machining needs.
4:Rotary Table Functionality: The worktable can rotate ±45°, allowing the milling of helical surfaces like spiral drill grooves and skew teeth when used with an indexing head.
5:Optional Digital Readout: A digital readout device can be installed upon request to improve machining accuracy and operational convenience.
Applications

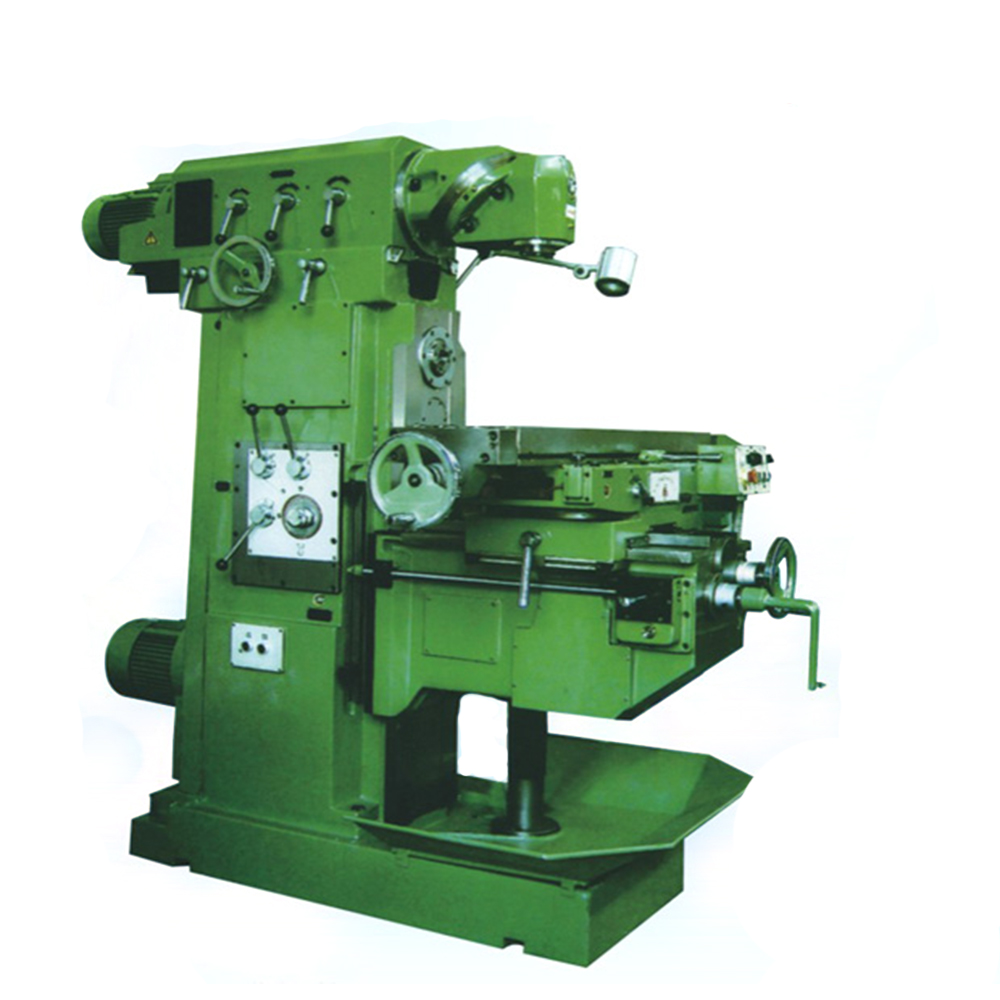

The X(S)6225(Digital Readout) Universal Rotary Table Milling Machine is widely used in industries such as machinery manufacturing, light industry, instrumentation, motors, electrical equipment, and mold making. Its versatile milling capabilities and high precision make it ideal for machining complex surfaces and grooves. The machine's flexibility and stability make it a perfect choice for high-efficiency, high-quality metal cutting tasks in small to medium-sized workshops.
Products Pictures
