| Specification | unit | XS2520/6 | XS2525/8 | |
| Table area (width × length) | mm | 2000×6000 | 2500×8000 | |
| Table T-slot (number of slots × width × slot spacing) | mm | 9×28×200 | 9×28×250 | |
| Table longitudinal travel | mm | 6000 | 8000 | |
| Ram transverse travel | mm | 2600 | 3000 | |
| Ram vertical travel | mm | 1000 | 1000 | |
| Beam vertical lifting travel | mm | 1000 | 2000 | |
| Side milling head vertical lifting travel | mm | 1200 | 1500 | |
| Side milling head spindle sleeve travel | mm | 200 | 200 | |
| Minimum distance from spindle end to table surface | mm | 100 | ||
| Gantry width | mm | 2500 | 3200 | |
| Vertical spindle main motor power | kw | 30 | ||
| Side milling head main motor power | kw | 15 | ||
| Vertical spindle spindle speed | rpm | 10～2000 | ||
| Side milling head spindle speed | Range | rpm | 40~600 | |
| Level | 12 | |||
| Spindle taper | BT50 | |||
| Feed speed in each direction | X | mm/min | 10-1400 (fast 3000) | |
| Y | 10-1400 (fast 3000) | |||
| Z | 10-1400 (fast 3000) | |||
| W | 20-600 | |||
| V | 20-600 | |||
| Maximum load-bearing capacity of workbench | kg | 25000 | 40000 | |
| Machine net weight | kg | 105000 | 180000 | |
Products Features
1: Advanced Structural Design: The beam-moving gantry structure, combined with large-sized base parts and reinforced rib plates, ensures excellent rigidity, stability, and load-bearing capacity.
2: Efficient Spindle Drive: The spindle is driven by a frequency conversion motor, paired with a dual-speed gearbox, enabling automatic infinitely variable speed adjustment to meet diverse machining requirements.
3: Versatile Machining Capabilities: With six-axis control, the machine can perform multi-directional and multi-angle precision machining, providing flexible operation tailored to complex workpieces.
4: Comprehensive Lubrication System: The spindle box's internal gear mechanism is lubricated by an automatic bath system, while other lubrication points utilize automatic timed and metered lubrication, ensuring long-term stability.
5: Intelligent Control: The machine features a PC programmable controller for operational control, ensuring ease of use and reliable performance.
Applications
The X(S)2520 Digital Beam-moving Gantry Milling Machine is ideal for precision machining of large workpieces in industries such as aerospace, automotive, and mold manufacturing. Its multi-axis control system and multifunctional configuration enable efficient milling, boring, and other processes, reducing the need for multiple clampings and significantly improving production efficiency. In the aerospace industry, it is well-suited for machining large components such as wings and fuselage sections. In the automotive sector, it is perfect for machining body molds and large parts.

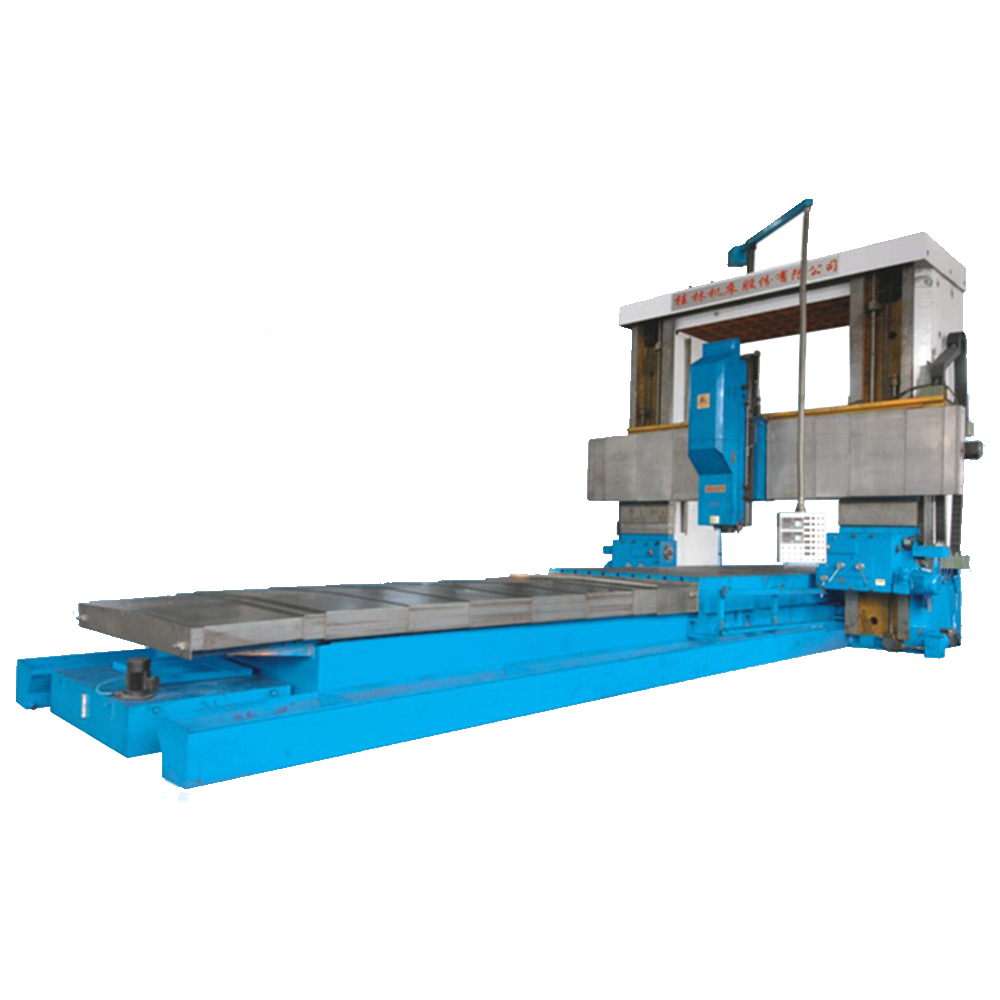

Products Pictures
