XS5750B Series Universal Sliding Table Milling Machine

The XS5750B Universal Sliding Table Milling Machine extends the capabilities of conventional milling operations. It is specifically engineered to handle complex machining tasks with its ability to mill at any angle in the front hemisphere, enhancing flexibility for machinists.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification		unit	XS55750B	X5750B	XS5750B/1	X5750B/1	XS5750B/2	X5750B/2
Worktable area (W×L)		mm	500×1435		500×1635		500×2000
Worktable T-slots	Number of slots		5		5		5
	Slot width	mm	18		18		18
	Slot distance	mm	80		80		80
Three-way stroke	Longitudinal	mm	1100		1300		1500
	Horizontal	mm	650		650		650
	vertical	mm	680		680		680
Minimum distance from spindle end face to Worktable surface		mm	40
Rotation angle of milling head			Front hemisphere any angle 360°
Spindle taper hole			ISO50
Spindle speed	Range	rpm	30～2050
	Number of levels		27
Worktable, ram feed range	Longitudinal	mm/min	10～1000
	Horizontal	mm/min	10～1000
	Vertical	mm/min	6～640
Worktable, ram fast feeds	Longitudinal	mm/min	2540
	Horizontal	mm/min	2540
	Vertical	mm/min	1700
Number of Worktable Feed Stages			Infinitely
Prime mover	Power	kw	7.5
	RPM	rpm	1440
Feed motor	Torque	Nm	30
	RPM	rpm	1500
Rapid feed AC motors	Power	kw	3
	RPM	rpm	1500
Digital display resolution		mm	0.05 (for XS5750B series only)
Positioning accuracy		mm	0.05 (for XS5750B series only)
Repeat positioning accuracy		mm	±0.01(for XS5750B series only)
Maximum weight of Worktable		kg	1500		1500		1500
Machine volume (L×W×H)		mm	2100×2421×2400		2100×2621×2400		2100×2986×2400
Net weight of machine		kg	4600		4800		5000

Products Features

1:Versatility in Milling Angles: The machine’s milling head can be maneuvered to work at any angle in the front hemisphere, which is crucial for complex part geometries.

2:Wide Speed Range: The spindle speed can vary widely, providing the flexibility to choose optimal speeds for various materials and cutting conditions.

3:High Rigidity and Precision: Sturdy construction and advanced design ensure high machining precision and rigidity, even under heavy loads.

4:Stepless Speed Adjustment: The three-axis feed features a stepless speed adjustment system, allowing for smooth and continuous speed changes without interruptions.

5:Dual Control Mechanisms: Equipped with two control systems to facilitate easy operations and adjustments.

Applications

The XS5750B is ideal for industries such as mechanical manufacturing and mold making. It excels in milling flat surfaces, grooves, and inclined slots, and is particularly beneficial for internal cavities in workpieces. Its ability to mount various types of boring tools allows for vertical, horizontal, and angled boring operations, making it invaluable for custom and specialized machining tasks.

This milling machine is a critical asset for factories and mines that require high precision and versatility in their machining operations, offering tailored solutions for intricate and detailed work.

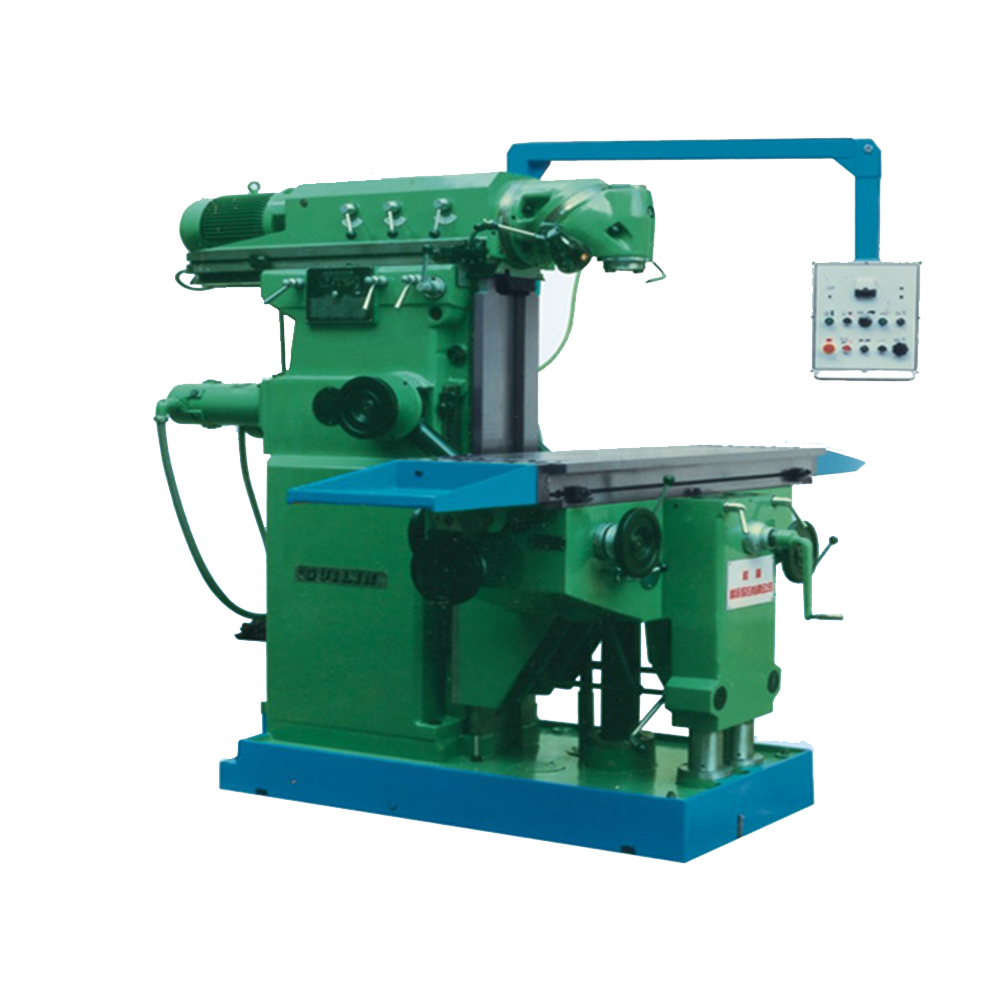

Products Pictures
