| Specification | unit | GL2012A/4 | GL2016A/4 | GL2020A/4 | |
| Worktable area (width × length) | mm | 1250×4000 | 1600×4000 | 2000×4000 | |
| Worktable T-slot (number of slots × width × slot distance) | mm | 9×28×125 | 9×28×160 | 9×28×200 | |
| Worktable longitudinal travel (Y) | mm | 4000 | 4000 | 4000 | |
| Spindle box transverse travel (Y) | mm | 1650 | 2000 | 2400 | |
| Beam vertical lifting travel (Z) | mm | 1000 | 1000 | 1000 | |
| Side milling head vertical lifting travel (W) | mm | 700 | 700 | 700 | |
| Spindle sleeve travel | mm | 200 | 200 | 200 | |
| Minimum distance from spindle end face to worktable surface | mm | 100 | |||
| Main motor power | kw | 15 | |||
| Spindle speed | Range | rpm | 40～600 | ||
| Level | 12 | ||||
| Spindle taper | ISO50 | ||||
| Feed speed in each direction | X | mm/min | 10～4000 | ||
| Y | 20~2000 | ||||
| Z | 20～500 | ||||
| W | 20～600 | ||||
| Maximum load-bearing capacity of workbench | kg | 8000 | 12000 | 15000 | |
| Machine net weight | kg | 45000 | 65000 | 72000 | |
Products Features
1: High Rigidity and Strength: The integrated spindle box and slide unit design enhance the overall rigidity and strength of the machine, making it suitable for high-load machining.
2: Flexibility: The spindle sleeve offers a 200mm telescopic function, allowing the machine to adapt to various machining requirements.
3: Advanced Control System: Equipped with a PC programmable controller for reliable and advanced machine operation control.
4: Automatic Lubrication: The internal gear mechanism in the spindle box features automatic bath lubrication, while other lubrication points use a timed and quantified automatic lubrication system, ensuring long-term stability.
5: Safety Protection: The machine includes guideway protection devices for increased safety during operation, with an option to add side milling heads to the left and right columns for enhanced flexibility.
Applications
This gantry milling machine is particularly well-suited for the processing of medium to large flat and complex parts in industries such as aerospace, mold manufacturing, shipbuilding, and automotive. Its high rigidity, precise control, and automatic lubrication system make it an ideal choice for handling high-precision and high-load machining requirements. It excels in scenarios where efficient large-scale plane machining is needed.

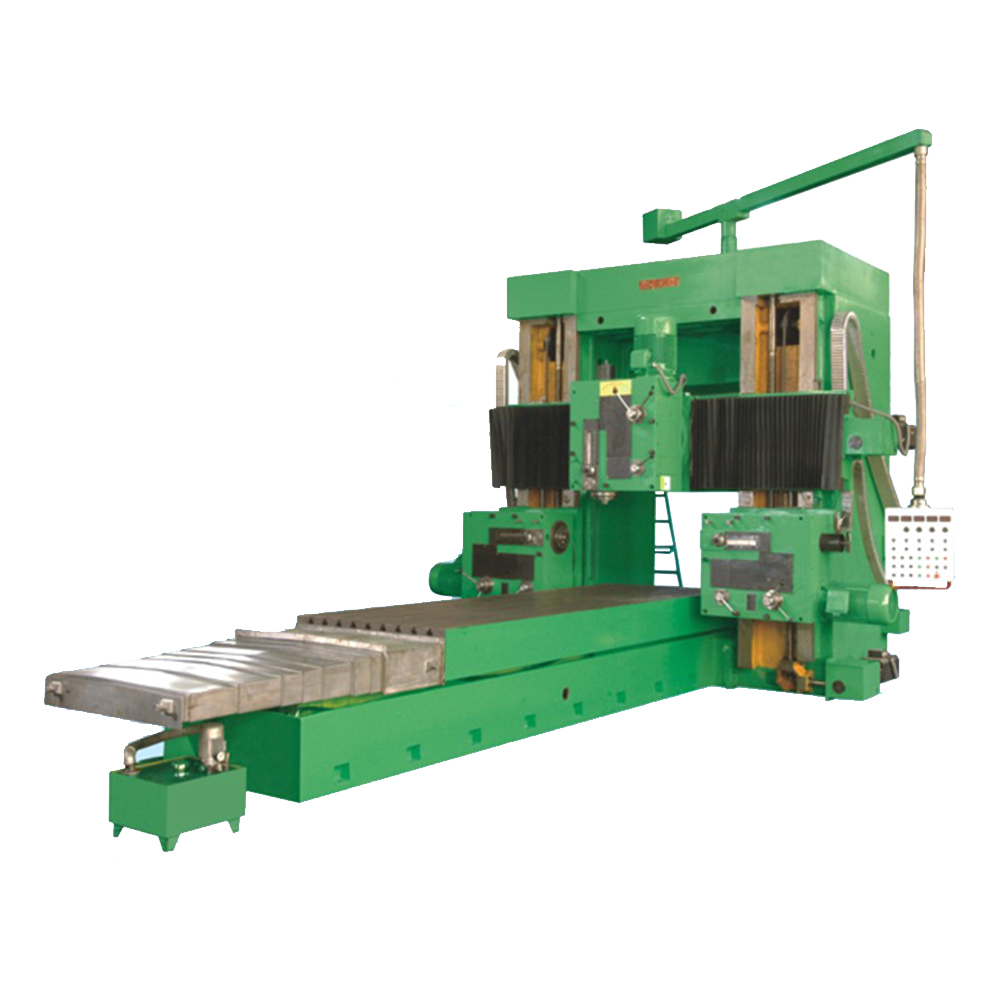

Products Pictures
