X(S)5746 Universal Sliding Table Milling Machine

The X(S)5746 Universal Sliding Table Milling Machine expands the possibilities of traditional milling machines by providing enhanced versatility and performance. Incorporating advanced digital display technology, this model allows for precise control and versatile machining operations, including plane milling, groove cutting, and inclined surfaces. With its robust design and extensive range of motion, it’s ideal for handling complex machining tasks, particularly in mold manufacturing.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification		unit	XS5746	XS5750	XS5746/1	XS5750/1	XS5746/2	XS5750/2
			XS5756	XS5760	XS5756/1	XS5760/1	XS5756/2	XS5760/2
Worktable area (W×L)		mm	460×1435	500×1435	460×1635	500×1635	460×2000	500×2000
			560×1435	600×1435	560×1635	600×1635	560×2000	600×2000
Worktable T-slots	Number of slots		5		5		5
	Slot width	mm	18		18		18
	Slot distance	mm	80		80		80
Three-way stroke	Longitudinal	mm	1100		1300		1500
	Horizontal	mm	650		650		650
	vertical	mm	470		470		470
Minimum distance from spindle end face to Worktable surface		mm	40
Rotation angle of milling head			Front hemisphere any angle 360°
Spindle taper hole			ISO50
Spindle speed	Range	rpm	30～2050
	Number of levels		27
Worktable, ram feed range	Longitudinal	mm/min	10～1000
	Horizontal	mm/min	10～1000
	Vertical	mm/min	6～640
Worktable, ram fast feeds	Longitudinal	mm/min	2200
	Horizontal	mm/min	2200
	Vertical	mm/min	1466
Number of Worktable Feed Stages			Infinitely
prime mover	Power	kw	7.5
	RPM	rpm	1440
Feed motor	Torque	Nm	30
	RPM	rpm	1500
Rapid feed AC motors	Power	kw	3
	RPM	rpm	1500
Digital display resolution		mm	0.005
Positioning accuracy		mm	0.05
Repeat positioning accuracy		mm	±0.01
Maximum weight of Worktable		kg	1500		1500		1500
Machine volume (L×W×H)		mm	2100×2421×1950		2100×2621×1950		2100×2986×1950
Net weight of machine		kg	3300		3500		3700

Products Features

1:Versatile Milling Head: The machine features a movable milling head that can operate across the front hemisphere at any angle, enhancing its capability to machine complex and inclined surfaces.

2:Broad Range of Applications: Suitable for horizontal milling, this machine offers a wide spindle speed range and extensive travel parameters for high productivity.

3:High Rigidity and Precision: The robust construction ensures stability and high precision, with stepless speed regulation across three axes for optimal control.

4:Dual Operating Systems: Equipped with two control systems for ease of operation, ensuring flexibility and efficiency in all machining tasks.

5:Automatic Lubrication System: Ensures reliable lubrication, maintaining machine integrity and prolonging service life.

Applications

The X(S)5746 is ideally suited for various industrial applications, particularly in the automotive and aerospace sectors where precision is paramount. It excels in mold manufacturing, offering the ability to perform complex milling, drilling, and threading tasks. Its robust design and advanced features make it a preferred choice for high-demand environments seeking versatility and precision.

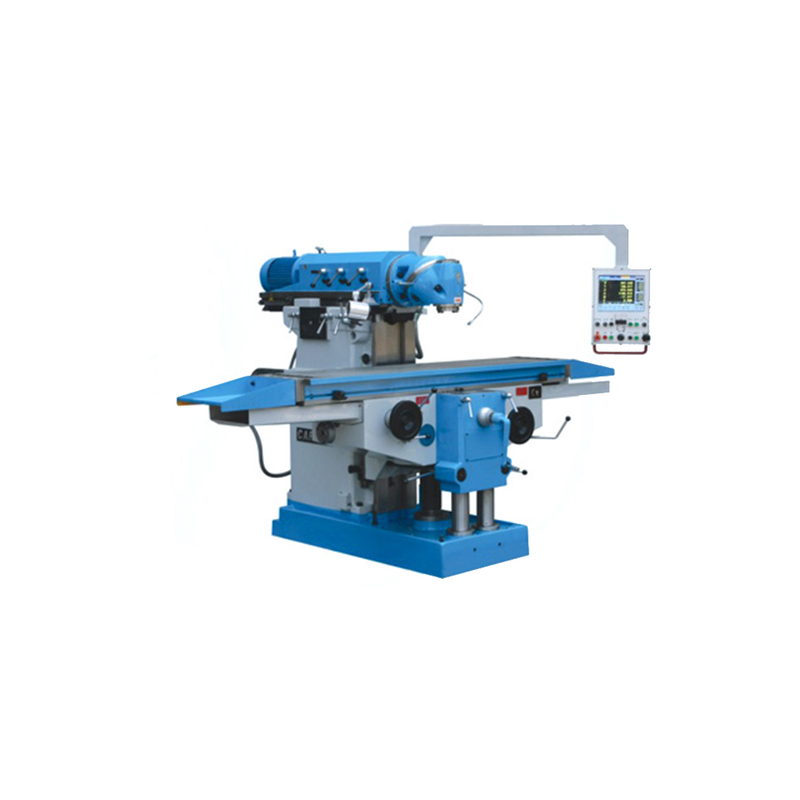

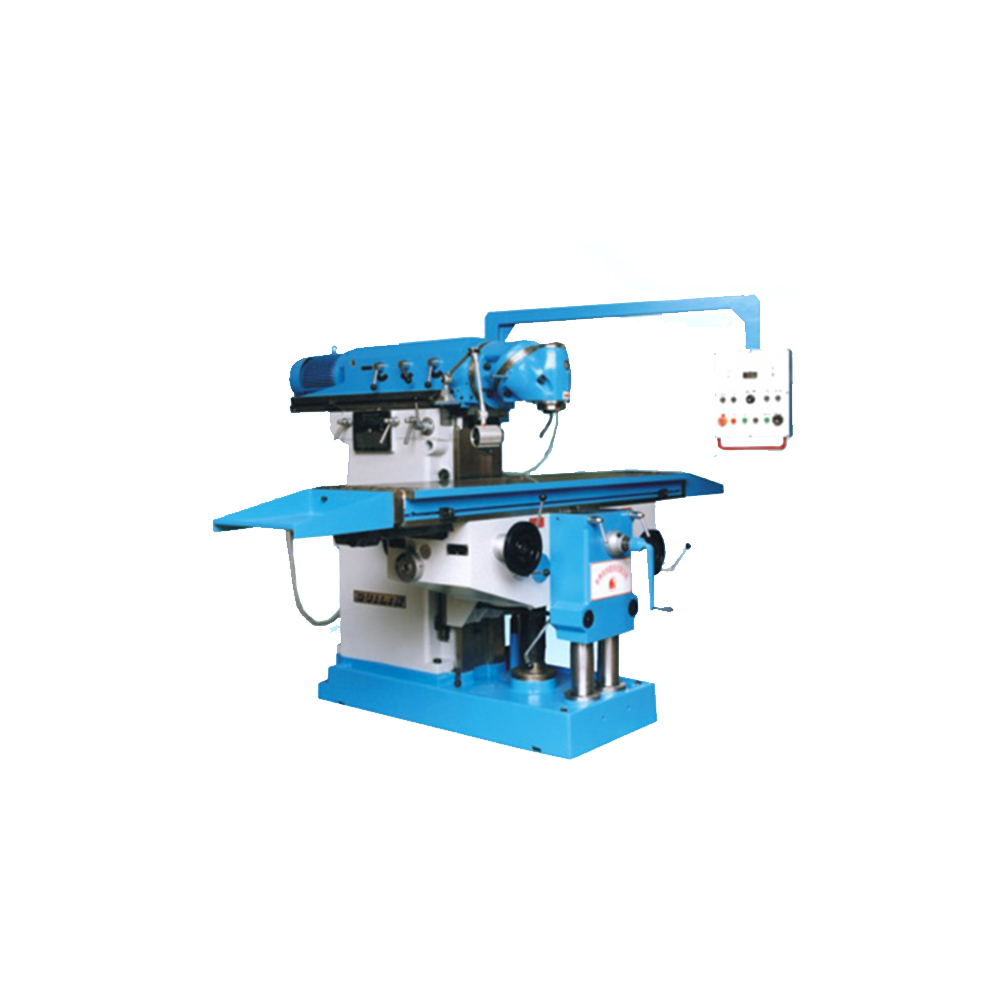

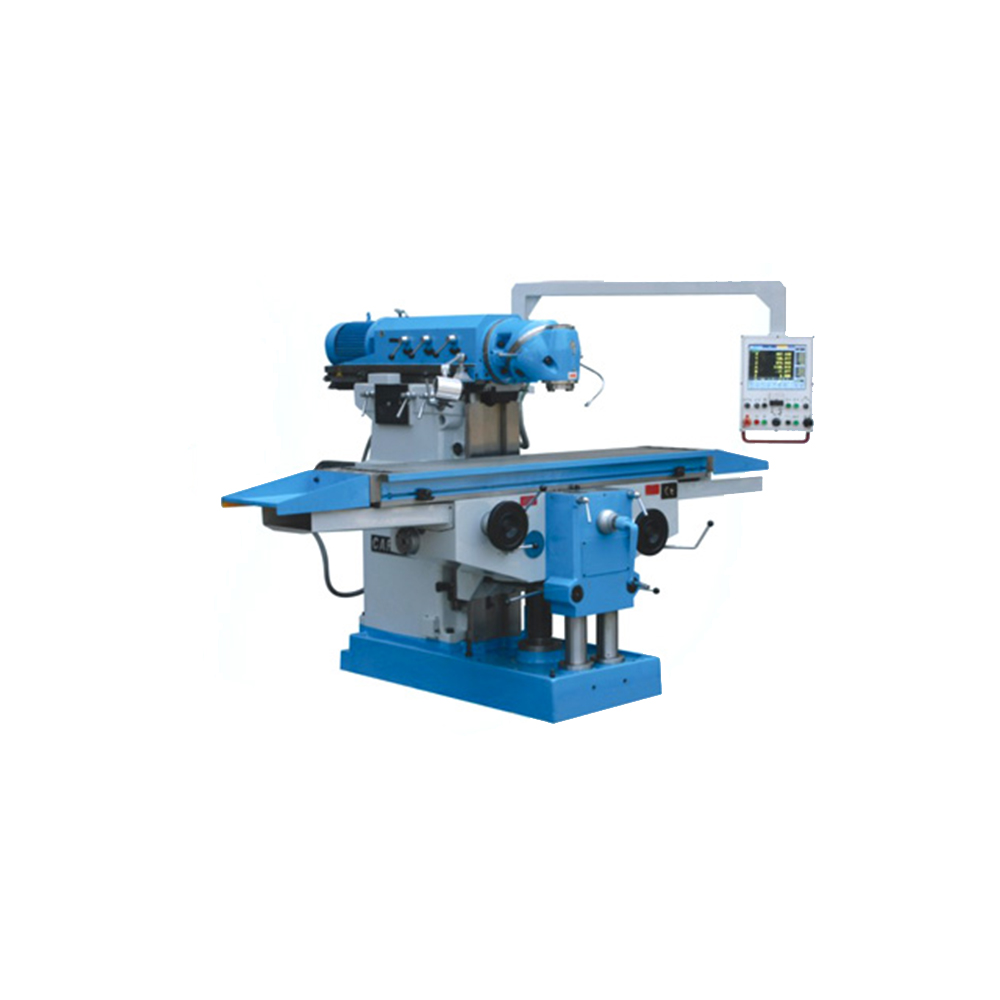

Products Pictures
