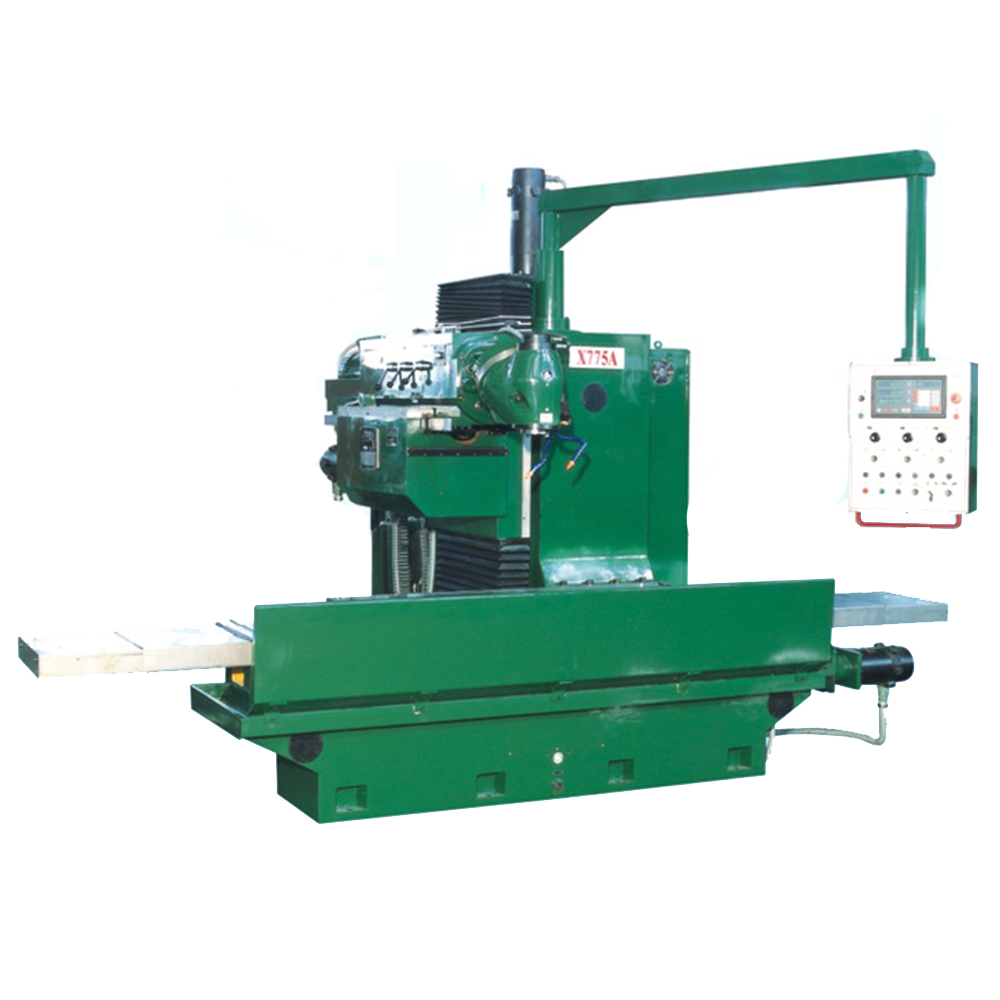

X(X)775A Digital Display Ram Bed Milling Machine

The X(X)775A Digital Display Ram Bed Milling Machine is a high-precision, high-rigidity, and multifunctional equipment. It is equipped with a universal milling head that allows for vertical, horizontal, and multi-angle milling operations, suitable for various complex machining processes such as milling, boring, and drilling. The combination of the multifunctional milling head allows this machine to perform multi-angle cutting on workpieces, making it widely applicable in industries such as aerospace, mold making, and mechanical manufacturing, ideal for machining complex surfaces and spatial curves.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Specification		unit	XX775A	XX775A/1	XX776A	XX776A/1
Worktable area (W×L)		mm	500×1635	500×2000	630×1635	630×2000
Worktable T-slots	Number of slots		5		7
	Slot width	mm	18		22
	Slot distance	mm	100		80
Three-way travel	Longitudinal	mm	1500	1800	1500	1800
	Horizontal	mm	700		700
	vertical	mm	680		680
Spindle taper hole serial number			ISO50		ISO50
Spindle speed	Range	r/min	30~2050		30~2050
	Number of levels	grade	27		27
Distance from vertical spindle end face to Worktable surface		mm	80～760		80～760
Worktable feed range	Longitudinal	mm/min	6~1000		6~1000
	Horizontal	mm/min	6~1000		6~1000
	Vertical	mm/min	6~1000		6~1000
Worktable rapid feeds	Longitudinal	mm/min	3000		3000
	Horizontal	mm/min	3000		3000
Main motor power		kw	7.5		7.5
Max. load capacity of Worktable		kg	1500		1800
Net weight of machine		kg	9800	10300	10000	11000

Products Features

1: High-Rigidity Structure: The machine adopts a side-mounted ram bed design, ensuring high strength and rigidity, capable of handling heavy-duty cutting operations, suitable for heavy machining tasks.

2: Multifunctional Milling Head: Equipped with a universal milling head, the spindle can perform milling operations at any spatial angle within the front hemisphere, greatly expanding the flexibility and application range of machining.

3: DC Stepless Speed Regulation: The three-axis feed adopts DC stepless speed regulation technology, combined with ball screw transmission, ensuring high transmission efficiency and flexible operation, guaranteeing high efficiency and precision in machining.

4: Precision Lubrication System: The machine features an automatic centralized timed lubrication system, ensuring adequate lubrication for all guide rail pairs and transmission components, extending the machine's service life and enhancing machining stability.

5: Large Travel and Load Capacity: The machine offers large travel parameters and high load-bearing capacity of the worktable, meeting the machining needs of large-sized workpieces.

Applications

This machine is particularly suitable for industries that require high-precision and multi-angle machining, such as aerospace, mold making, and mechanical manufacturing. In the aerospace industry, where the demand for machining complex surfaces is high, the X(X)775A's multifunctional milling head can efficiently and precisely machine complex workpieces. It is also widely used in the mold industry, capable of easily handling complex mold machining tasks while ensuring high precision and quality of the molds.

Products Pictures
