| Specification | unit | X5032A | X5036A | X5040A | |
| Worktable area (W×L) | mm | 320×1400 | 360×1400 | 400×1700 | |
| Worktable T-slots | Number of slots | 3 | |||
| Slot width | mm | 18 | |||
| Slot distance | mm | 80 | |||
| Worktable Stroke | Longitudinal | mm | 900 | 1000 | |
| Horizontal | mm | 335 | 400 | ||
| vertical | mm | 450 | 480 | ||
| Spindle taper hole | ISO50 | ||||
| Spindle speed | Range | rpm | 35～1830 | ||
| Number of levels | 18 | ||||
| Maximum rotary angle of vertical milling head | ±45° | ||||
| Minimum distance from spindle centerline to Worktable surface | mm | 60 | |||
| Worktable feed range | Longitudinal | mm/min | 22～1028 | ||
| Horizontal | mm/min | 22～1028 | |||
| vertical | mm/min | 9～427 | |||
| Number of Worktable Feed Stages | mm | 12 | |||
| Worktable rapid feeds | Longitudinal | mm/min | 2350 | ||
| Horizontal | mm/min | 2350 | |||
| vertical | mm/min | 915 | |||
| Main motor power | kw | 7.5 | |||
| Feed motor power | kw | 1.5 | |||
| Net weight of machine | kg | 4200 | 4500 | ||
| Machine volume (L×W×H) | mm | 2360×2115×2067 | 2360×2415×2067 | ||
Products Features
1:Multi-Functional Machining Capabilities: Suitable for milling planes, slopes, shaped surfaces, grooves, and keyways, and can perform drilling and boring operations with additional attachments.
2:High and Stable Precision: The machine is designed to maintain stable precision throughout the machining process, meeting high demands.
3:Flexible Operation and Quick Adjustment: The worktable supports longitudinal, horizontal, and vertical feeds with quick adjustment, enhancing production efficiency.
4:Variety of Attachments: The machine comes with multiple attachments, easy to replace, offering versatile functions and a wide range of applications.
5:Optional Digital Display: A digital display can be installed on the machine based on user requirements, further improving operational convenience and machining accuracy.
Applications
The X(S)5032A (Digital Display) Vertical Lift Table Milling Machine is widely used across various industries, especially in machining, light industry, instrumentation, motor, electrical, and mold manufacturing sectors. This machine can efficiently handle complex metal surface milling operations, including planes, slopes, shaped surfaces, grooves, and keyways, and with specialized tool holders and attachments, it can also perform drilling and boring functions. Its stable precision, flexible operation, and ease of adjustment make it an ideal tool for manufacturing high-quality parts, molds, and various complex mechanical components, contributing to improved production efficiency and product quality.

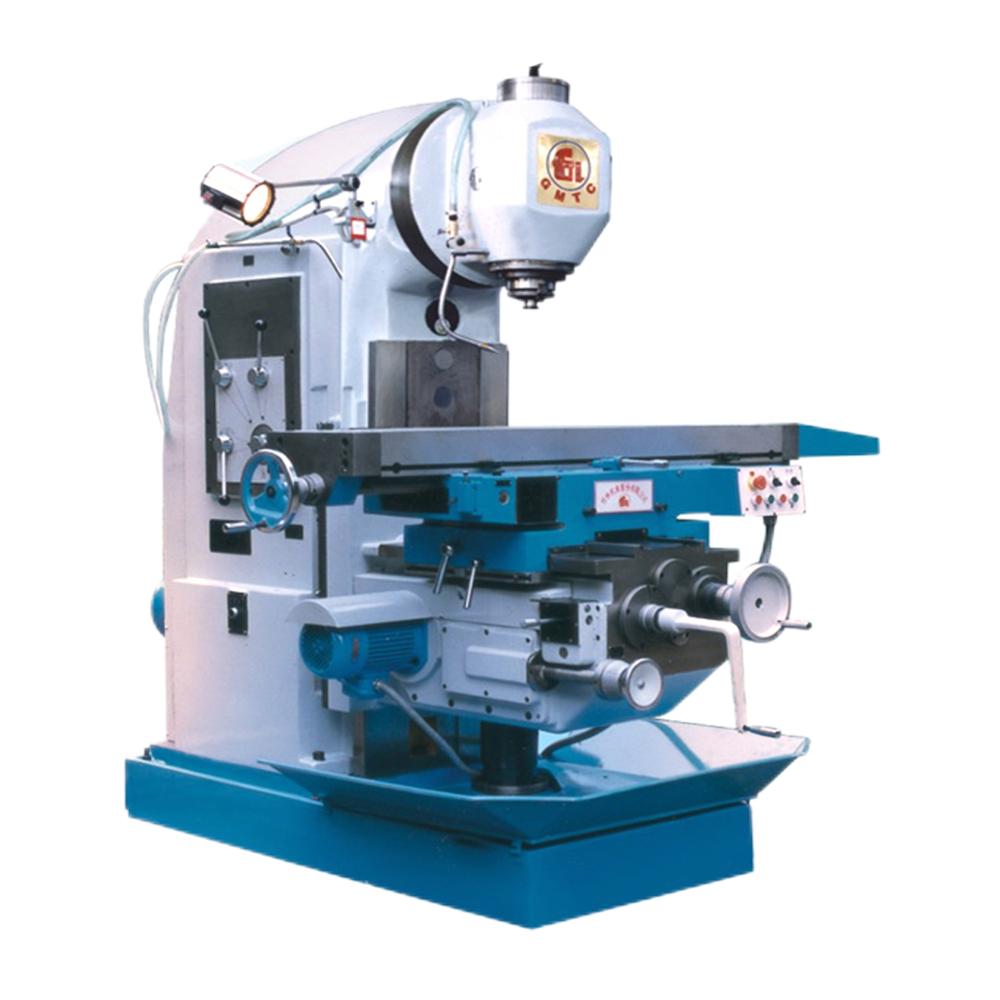

Products Pictures
