| Quantity: | |
|---|---|
| Specification | unit | X6032A | X6036A | X6040A | |
| Worktable area (W×L) | mm | 320×1400 | 360×1400 | 400×1800 | |
| Worktable T-slots | Number of slots | 3 | |||
| Slot width | mm | 18 | |||
| Slot distance | mm | 80 | |||
| Worktable Stroke | Longitudinal | mm | 900 | 1000 | |
| Horizontal | mm | 335 | 400 | ||
| vertical | mm | 450 | 480 | ||
| Spindle taper hole | ISO50 | ||||
| Spindle speed | Range | rpm | 30～1525 | ||
| Number of levels | 18 | ||||
| Minimum distance from spindle centerline to Worktable surface | mm | 30 | |||
| Worktable feed range | Longitudinal | mm/min | 22～1028 | ||
| Horizontal | mm/min | 22～1028 | |||
| vertical | mm/min | 9～427 | |||
| Number of Worktable Feed Stages | mm | 12 | |||
| Worktable rapid feeds | Longitudinal | mm/min | 2350 | ||
| Horizontal | mm/min | 2350 | |||
| vertical | mm/min | 915 | |||
| Main motor power | kw | 7.5 | |||
| Feed motor power | kw | 1.5 | |||
| Net weight of machine | kg | 4200 | 4500 | ||
| Machine volume (L×W×H) | mm | 2360×2115×2067 | 2360×2515×2067 | ||
Products Features
1:Multi-functional Machining: Suitable for a wide range of milling operations including surface, inclined surface, formed surface, grooves, and keyways, along with drilling and boring capabilities.
2:High Precision Design: The machine ensures stable accuracy to meet stringent machining requirements.
3:Flexible Operation: The worktable offers longitudinal, transverse, and vertical feeds with rapid adjustment, ensuring convenient and efficient operation.
4:Variety of Attachments: Equipped with multiple attachments, allowing for easy changes and multi-functional machining to meet diverse processing needs.
5:Digital Readout Option: A digital readout device can be installed to enhance operational convenience and machining accuracy according to user requirements.
Applications

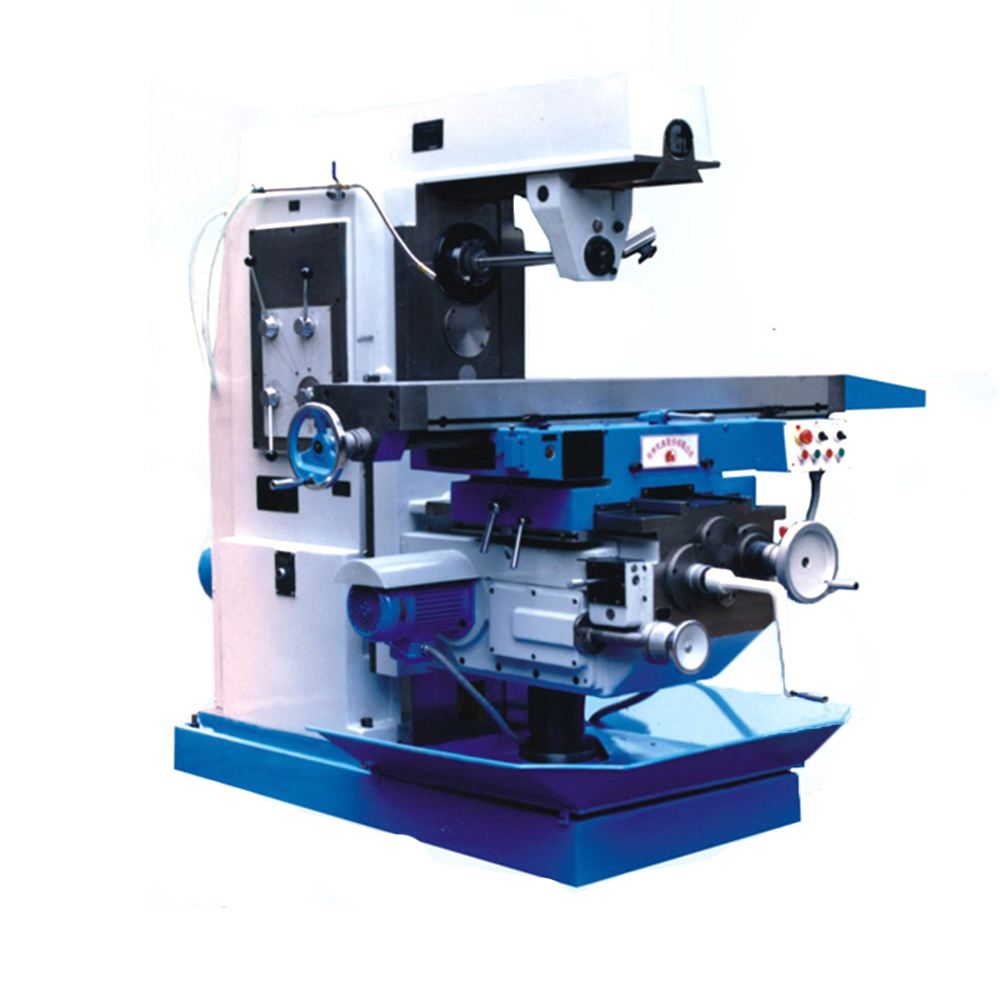

The X(S)6032A(Digital Readout) Horizontal Lift Table Milling Machine is widely used in industries such as machinery manufacturing, light industry, instrumentation, motors, electrical appliances, and mold manufacturing. Its multi-functional machining capabilities enable it to handle complex part processing tasks such as surface, inclined surface, formed surface, and groove machining, along with drilling and boring operations. This machine is ideal for mass production and the processing of precision parts, especially for companies requiring high accuracy and diverse machining capabilities. Installing a digital readout device can further enhance the precision and efficiency of operations, making it suitable for various machining environments.
Products Pictures
