| Specification | XA5032 |
| Spindle hole taper | 7：24 ISO50 |
| Distance from spindle axis to vertical guide rail of bed | 350 mm |
| Distance from spindle end face to worktable surface | 60～430 mm |
| Spindle hole diameter | 29mm |
| Vertical milling head rotation angle | ±45° |
| Spindle speed range/level | 30～1500 rpm /18 levels |
| Spindle axial movement distance | 70mm |
| Worktable surface size | 1320x320 mm |
| Worktable travel longitudinal/lateral/vertical | 700(680)/255(240)/370(350) mm |
| Worktable feed range longitudinal/lateral/vertical | 23.5-1180/15-786/8-394 mm/min |
| Worktable moving speed longitudinal/lateral/vertical | 2300/1533/770 mm/min |
| Worktable "T" slot number/width/pitch | 3/18/70mm |
| Main motor power | 7.5kW |
| Feed motor power | 1.5kW |
| Machine tool dimensions (length x width x height) | 2294x1770x1960 mm |
| Machine tool net weight | 2800 Kg |
Products Features
1: Versatile worktable design with manual, motorized, and rapid feed modes in the X/Y/Z axes for adaptable machining.
2: Adjustable vertical milling head rotates ±45° within the vertical plane, expanding machining capabilities.
3: High-capacity spindle with tapered roller bearings and energy consumption braking for rapid and reliable stops.
4: Precision lubrication system for screws and guides minimizes machine wear; cooling system adjusts nozzles for varying coolant flow.

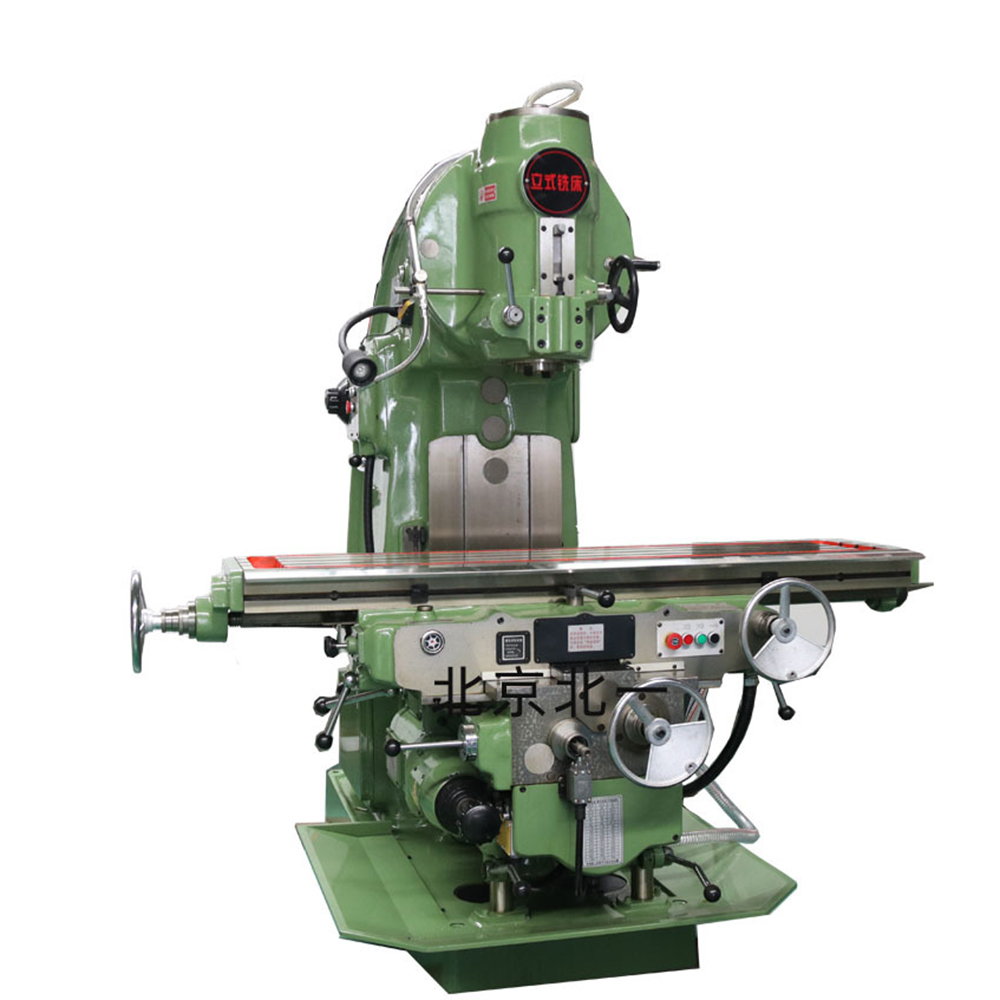

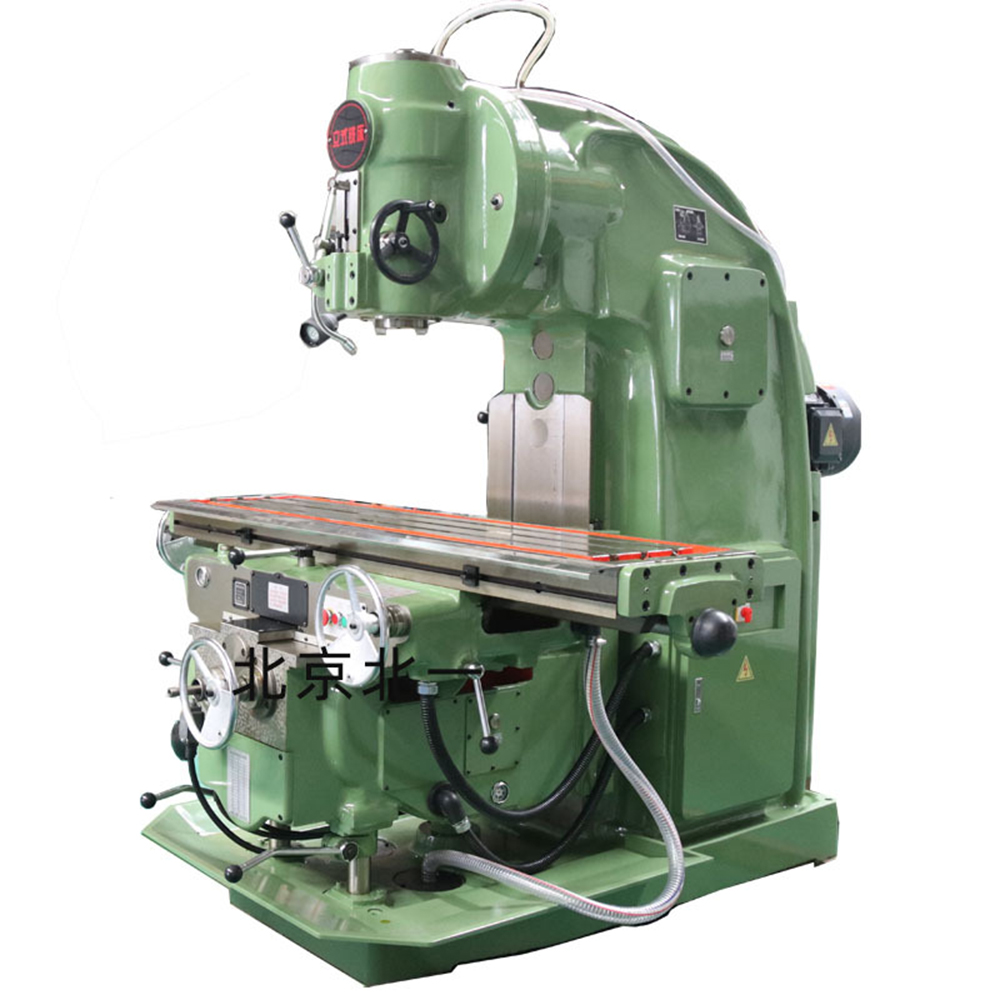

Products Pictures
