| Quantity: | |
|---|---|
| Specification | unit | X6432A | X6432A/1 | X6436A | X6436A/1 | X6440A | X6440A/1 | |
| Worktable area (W×L) | mm | 320×1400 | 320×1700 | 360×900 | 360×1700 | 400×1400 | 400×1700 | |
| Worktable T-slots | Number of slots | 3 | ||||||
| Slot width | mm | 18 | ||||||
| Slot distance | mm | 80 | ||||||
| Worktable Stroke | Longitudinal (manual/motorized) | mm | 900 | 1100 | 900 | 1100 | 900 | 1100 |
| Horizontal (manual/motorized) | mm | 335 | 400 | |||||
| Vertical (manual/motorized) | mm | 475 | ||||||
| Horizontal spindle taper bore | ISO50 | |||||||
| Universal milling head spindle serial number | ISO50 | |||||||
| Rotation angle of milling head | Front hemisphere any 360° | |||||||
| Spindle speed | Horizontal Spindles | r/min | 30～1525(18stage) | |||||
| Universal milling spindle | r/min | 40～1800(12stage) | ||||||
| Distance from vertical guide surface to center of Worktable | mm | 260～500 | 200～500 | |||||
| Distance from horizontal spindle axis to Worktable surface | mm | 10～485 | ||||||
| Distance from vertical spindle end to Worktable surface | mm | 220～695 | ||||||
| Worktable feed range | Longitudinal | mm/min | 22～1028 | |||||
| Horizontal | mm/min | 22～1028 | ||||||
| Vertical | mm/min | 9～427 | ||||||
| Worktable rapid feeds | Longitudinal | mm/min | 2350 | |||||
| Horizontal | mm/min | 2350 | ||||||
| Vertical | mm/min | 915 | ||||||
| Main motor power | kw | 7.5 | ||||||
| Power of ram main motor | kw | 4 | ||||||
| Feed motor power | kw | 1.5 | ||||||
| Maximum load capacity of Worktable | kg | 700 | ||||||
| Net weight of machine | kg | 4500 | ||||||
| Machine volume (L×W×H) | cm | 236×195×210 | ||||||
Products Features
1:Multi-functional Compound Structure: Equipped with both a horizontal spindle and a universal milling head, offering great flexibility for vertical and horizontal milling operations.
2:High Rigidity Design: The machine's structure is highly rigid, capable of handling large cutting forces, making it ideal for heavy-duty machining.
3:High-Precision Ball Screw Feed: The three-axis feed is driven by ball screws, ensuring high precision and low friction during operations.
4:Versatile Milling Capabilities: The universal milling head allows for milling at any angle in the front hemisphere, providing a wide range of machining possibilities.
5:Compact and Reasonable Structure: The compact design saves space and makes it suitable for use in various workshop environments.
Applications

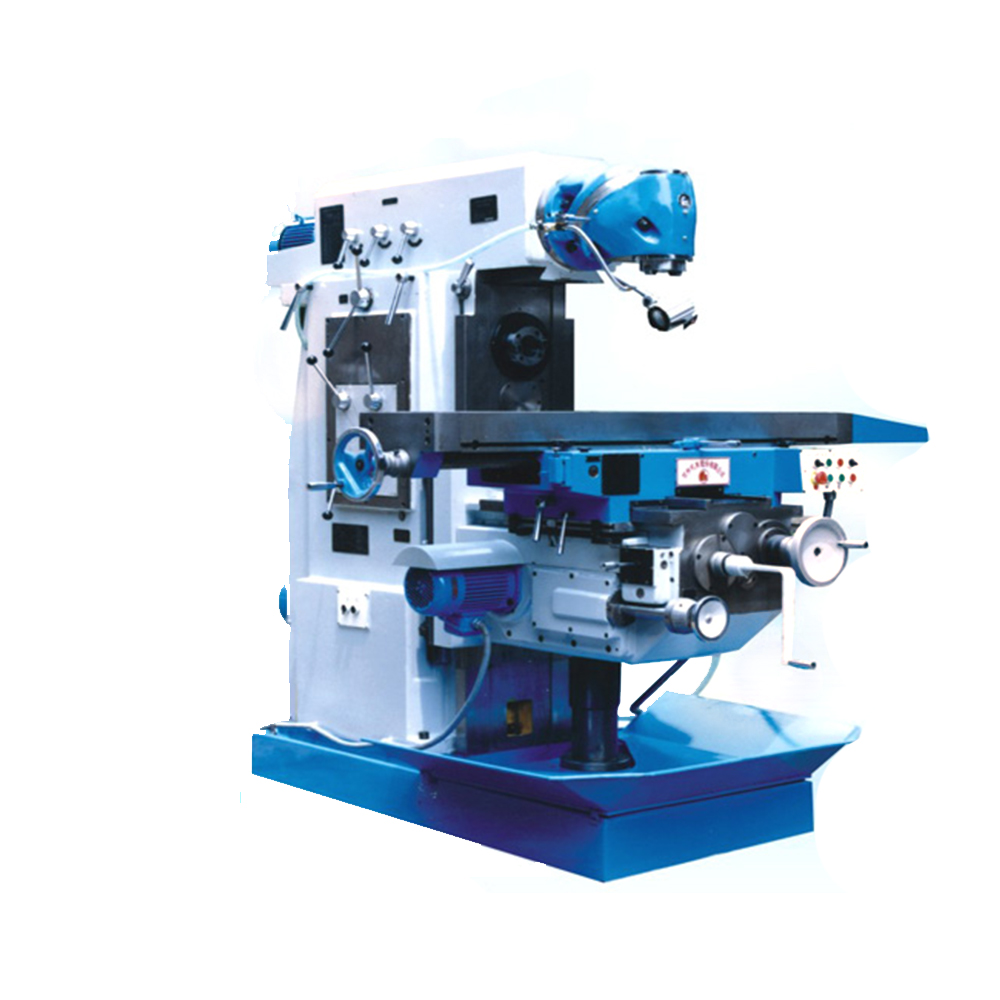

The X(S)6432A(Digital Display) Universal Rotary Table Milling Machine is widely used in the machinery manufacturing industry, especially in mold processing, part machining, and precision milling of various metal products. Its powerful dual-use functionality and versatile milling capabilities make it particularly suitable for complex part processing, handling various milling operations on steel, cast iron, and non-ferrous metal workpieces.
Products Pictures
