| Specification | unit | X6030C | X6130C | X60320 | X6132C | XQ6036C | XQ6136C | |
| Worktable area (W×L) | mm | 300×1120 | 320×1400 | 360×1400 | ||||
| Worktable T-slots | Number of slots | 3 | 3 | 3 | ||||
| Slot width | mm | 14 | 18 | 18 | ||||
| Slot distance | mm | 63 | 80 | 80 | ||||
| Worktable Stroke | Longitudinal | mm | 700 | 800 | 800 | |||
| Horizontal | mm | 290 | 310 | 310 | ||||
| vertical | mm | 400 | 400 | 400 | ||||
| Spindle taper hole | ISO40 | |||||||
| Distance from spindle centerline to Worktable surface | mm | 30～430 | ||||||
| Maximum distance from the spindle end face to the toolholder carrier bearing | mm | 392 | ||||||
| Distance from the centerline of the main axis to the bottom surface of the crossbeam | mm | 140 | ||||||
| Worktable feed range | Longitudinal | mm/min | 22～1000 | |||||
| Horizontal | mm/min | 15～700 | ||||||
| vertical | mm/min | 8～360 | ||||||
| Worktable Maximum Swivel Angle | (X61)±45°,(X60) without this function | |||||||
| Worktable rapid feeds | Longitudinal | mm/min | 2200 | |||||
| Horizontal | mm/min | 1540 | ||||||
| Vertical | mm/min | 790 | ||||||
| Spindle speed | Range | rpm | 55～2150 | |||||
| Grade | 18 | |||||||
| Prime mover power | kw | 5.5 | ||||||
| Feed motor torque | Nm | 15 | ||||||
| Max. drag force of Worktable | KN | 10 | ||||||
| Max. load of Worktable | kg | 250 | ||||||
| Net weight of machine | kg | 2200 | 2100 | 2400 | 2600 | 2400 | 2600 | |
| Machine volume (L×W×H) | mm | 1830×1660×1760 | 1940×1910×1760 | 1940×1910×1760 | ||||
Products Features
1:Compact and Reasonable Structure: The machine has a small footprint and strong rigidity, making it suitable for various industrial environments.
2:Stepless Speed Adjustment: The three-direction feed is equipped with stepless speed adjustment, enhancing operational efficiency and flexibility.
3:Multi-Functional Machining: Capable of milling planes, slots, drilling, and boring operations, offering broad adaptability.
4:High-Precision Spindle: The spindle features strong rigidity, ensuring high-precision cutting, compatible with high-speed steel or carbide tools.
5:User-Friendly Operation: Ergonomically designed for easy and reliable operation, suitable for long working hours.
Applications

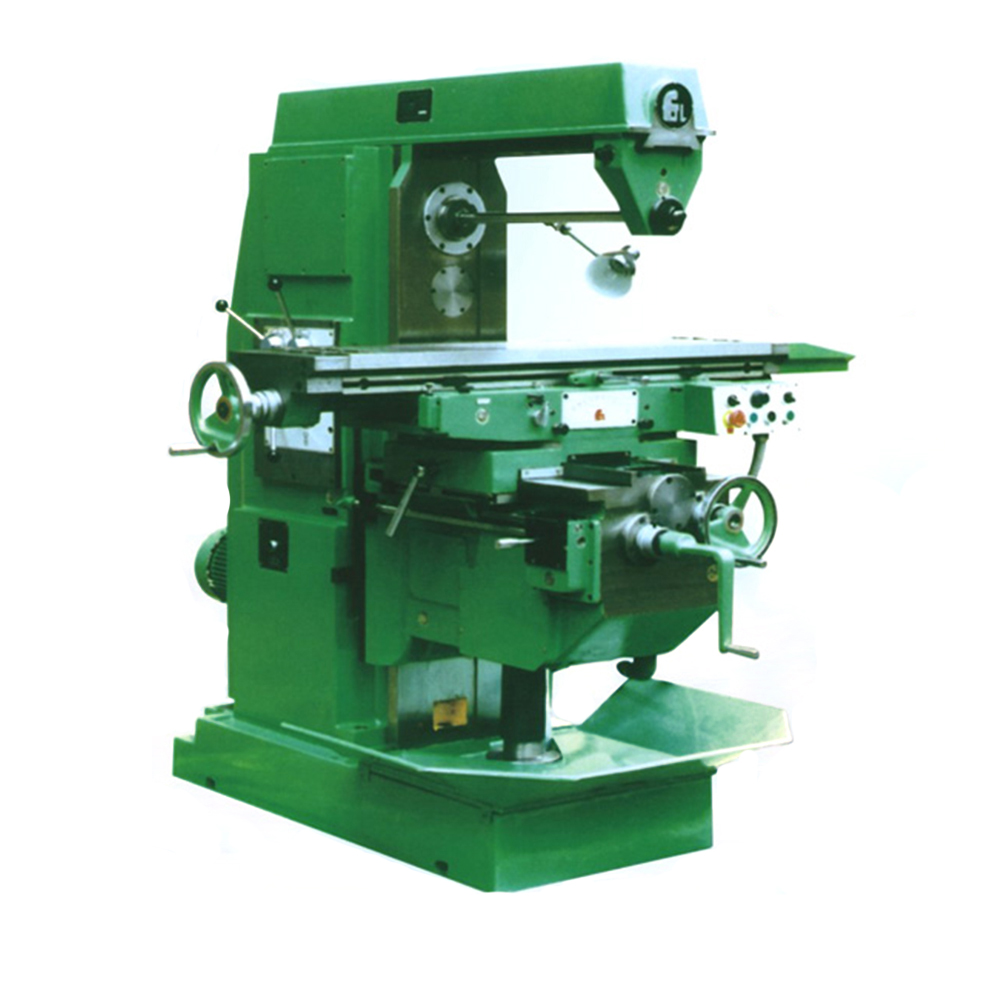

The X6030C Horizontal Universal Lift Table Milling Machine is widely used in industries such as machinery manufacturing, mold processing, and instrument manufacturing. Its compact design and versatile machining capabilities allow it to perform complex part machining in limited spaces, including milling planes, slots, holes, and other operations. This machine is especially suitable for production environments where multiple operations are frequently required. It is an indispensable piece of equipment for manufacturing companies, tool rooms, and maintenance departments, significantly enhancing production efficiency and machining quality.

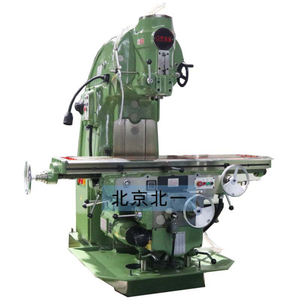

Products Pictures
| Specification | unit | X6030C | X6130C | X60320 | X6132C | XQ6036C | XQ6136C | |
| Worktable area (W×L) | mm | 300×1120 | 320×1400 | 360×1400 | ||||
| Worktable T-slots | Number of slots | 3 | 3 | 3 | ||||
| Slot width | mm | 14 | 18 | 18 | ||||
| Slot distance | mm | 63 | 80 | 80 | ||||
| Worktable Stroke | Longitudinal | mm | 700 | 800 | 800 | |||
| Horizontal | mm | 290 | 310 | 310 | ||||
| vertical | mm | 400 | 400 | 400 | ||||
| Spindle taper hole | ISO40 | |||||||
| Distance from spindle centerline to Worktable surface | mm | 30～430 | ||||||
| Maximum distance from the spindle end face to the toolholder carrier bearing | mm | 392 | ||||||
| Distance from the centerline of the main axis to the bottom surface of the crossbeam | mm | 140 | ||||||
| Worktable feed range | Longitudinal | mm/min | 22～1000 | |||||
| Horizontal | mm/min | 15～700 | ||||||
| vertical | mm/min | 8～360 | ||||||
| Worktable Maximum Swivel Angle | (X61)±45°,(X60) without this function | |||||||
| Worktable rapid feeds | Longitudinal | mm/min | 2200 | |||||
| Horizontal | mm/min | 1540 | ||||||
| Vertical | mm/min | 790 | ||||||
| Spindle speed | Range | rpm | 55～2150 | |||||
| Grade | 18 | |||||||
| Prime mover power | kw | 5.5 | ||||||
| Feed motor torque | Nm | 15 | ||||||
| Max. drag force of Worktable | KN | 10 | ||||||
| Max. load of Worktable | kg | 250 | ||||||
| Net weight of machine | kg | 2200 | 2100 | 2400 | 2600 | 2400 | 2600 | |
| Machine volume (L×W×H) | mm | 1830×1660×1760 | 1940×1910×1760 | 1940×1910×1760 | ||||
Products Features
1:Compact and Reasonable Structure: The machine has a small footprint and strong rigidity, making it suitable for various industrial environments.
2:Stepless Speed Adjustment: The three-direction feed is equipped with stepless speed adjustment, enhancing operational efficiency and flexibility.
3:Multi-Functional Machining: Capable of milling planes, slots, drilling, and boring operations, offering broad adaptability.
4:High-Precision Spindle: The spindle features strong rigidity, ensuring high-precision cutting, compatible with high-speed steel or carbide tools.
5:User-Friendly Operation: Ergonomically designed for easy and reliable operation, suitable for long working hours.
Applications
The X6030C Horizontal Universal Lift Table Milling Machine is widely used in industries such as machinery manufacturing, mold processing, and instrument manufacturing. Its compact design and versatile machining capabilities allow it to perform complex part machining in limited spaces, including milling planes, slots, holes, and other operations. This machine is especially suitable for production environments where multiple operations are frequently required. It is an indispensable piece of equipment for manufacturing companies, tool rooms, and maintenance departments, significantly enhancing production efficiency and machining quality.

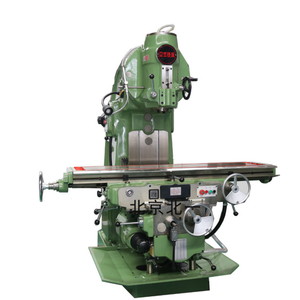

Products Pictures
