WT CNC Water-Jet Cutting machine (X=Fly-arm type)

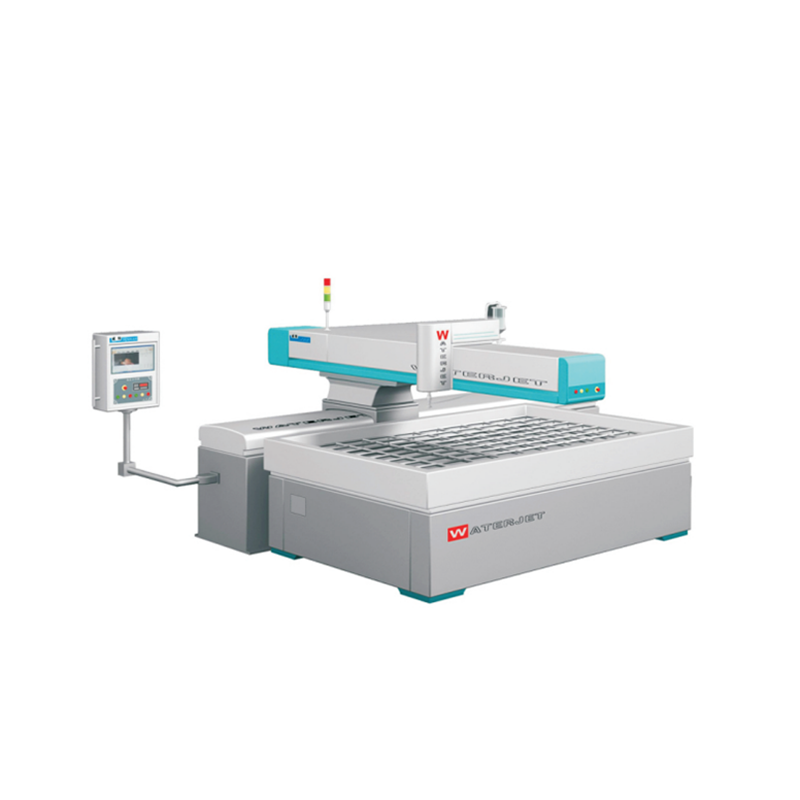

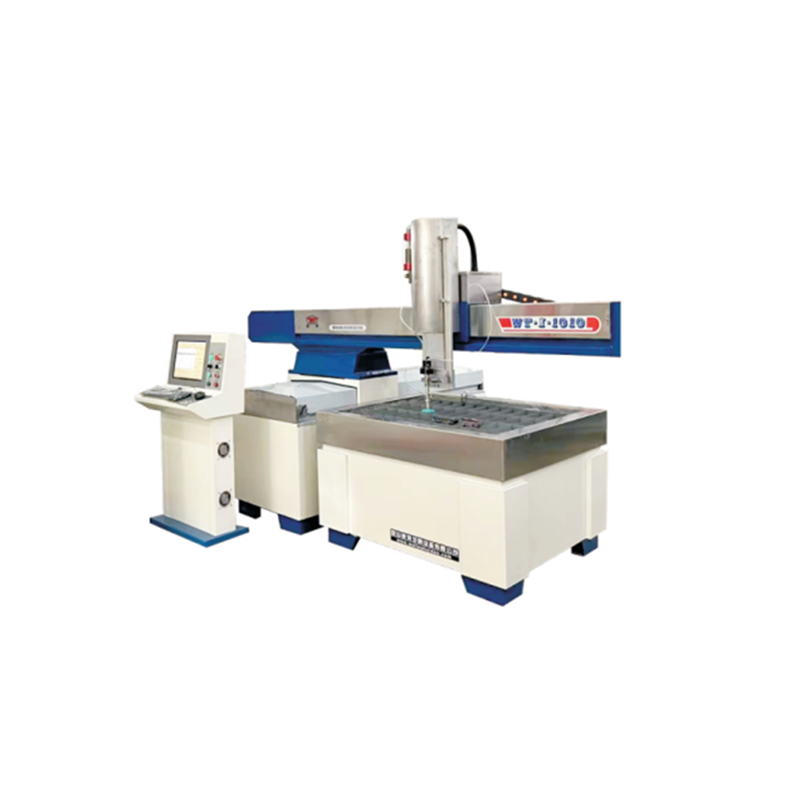

The CNC Water-Jet Cutting Machine (Fly-Arm Type) is a precision cutting system designed with a cantilever structure to provide maximum flexibility and open workspace. Unlike traditional gantry machines, this design offers easier material loading and unloading while maintaining exceptional cutting performance. Equipped with imported high-quality ball screws, linear guides, and a servo-driven system, it achieves smooth, precise, and efficient cutting for a wide range of materials.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

Machine Features:

All-Directional Cutting – Capable of precise cutting along any 2D plane curve, ideal for complex shapes.

Open-Structure Design – Cantilever layout provides a large, unobstructed loading and unloading space.

Precision Transmission – Imported ball screws and linear guides ensure zero-clearance and stable operation.

Servo Drive System – Delivers accurate positioning, smooth motion, and consistent cutting precision.

Protective Hood Design – Shields moving parts from water and sand, ensuring long-term durability.

Reliable Sand Valve Design – Simple structure for smooth sand flow, easy maintenance, and long service life.

Compact & Efficient – Smaller footprint compared to gantry models while maintaining industrial-grade stability.

Products Specification:

Parameters	Unit	WT-L1520	WT-L1530	WT-L2030	WT-L2060	WT-L2080
Efficient Cutting Area	mm	1500 × 2000	1500 × 3000	2000 × 3000	2000 × 6000	2000 × 8000
X-axis Travel	mm	1500	1500	2000	2000	2000
Y-axis Travel	mm	2000	3000	3000	6000	8000
Z-axis Travel	mm	150–180
Cutting Accuracy	mm	±0.1
Positioning Accuracy	mm	±0.02
X/Y Dry-run Speed	m/min	0–12 (customizable to 20)
Cutting Speed	m/min	Depends on material type and thickness
