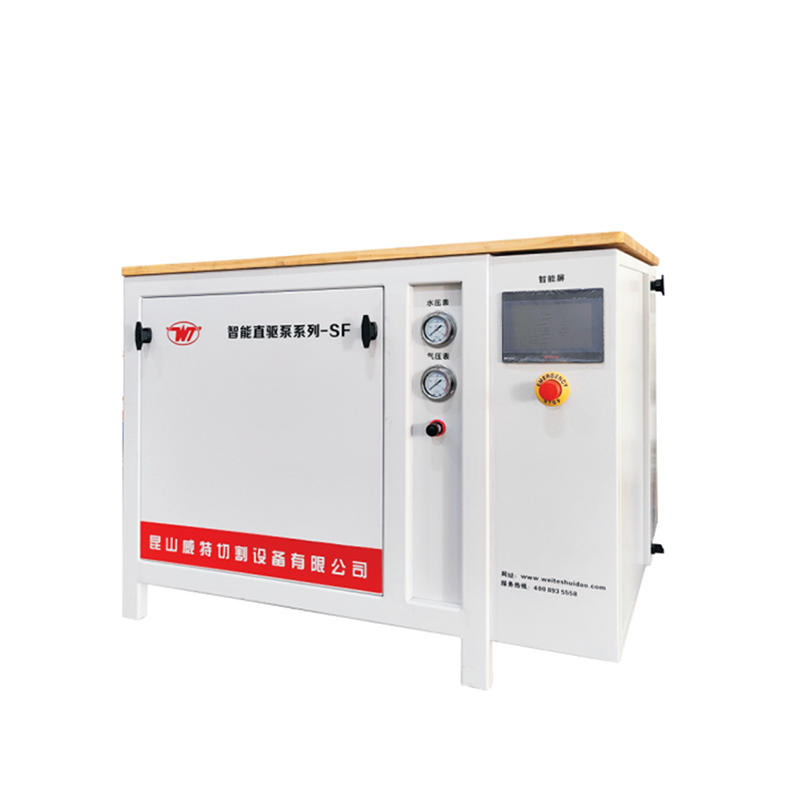

Machine Features:
Energy Saving – Actual power consumption only 8–12 kWh per hour, reducing operating costs by over 30%.
Environmental Protection – No hydraulic oil required; maintenance is simplified, clean, and eco-friendly.
High Efficiency – Delivers higher pressure ratios; cutting speed increased by 20% compared to conventional systems.
Low Noise – Operating noise is below 50 dB, ensuring a quiet working environment.
Advanced Control System – Dual-mode servo control (constant pressure / constant speed) with intelligent start-stop and safety protections.
Enhanced Durability – Three-cylinder crankshaft system with integrated cooling and dual-stage filtration ensures stable long-term operation.
Flexible Design – Belt-drive transmission reduces motor speed for improved life span and easier assembly & maintenance.
Products Specification:
| Size (L×W×H) | 1300 × 870 × 950 mm |
| Motor Power | 15 kW (20 HP) |
| Continuous Working Pressure | 280–380 MPa |
| Maximum Output Pressure | 400 MPa / 4000 bar |
| Maximum Gem Aperture | 0.33 mm (0.013 inch) |
| Maximum Water Flow | 3.5 L/min |
| Weight | 600 kg |
| Power Supply | 380V / 50Hz |
| Water Supply Pressure | 0.4 MPa |
| Transmission System | Three-cylinder crankshaft connecting rod |
| Cooling System | Integrated crankcase cooling |
| Filtration System | Dual-stage: 5 µm + 1 µm filters |
| Drive Type | Belt drive |
| Control System | Automatic servo control, constant pressure & constant speed modes |
| Protection Function | Intelligent start-stop, overvoltage & undervoltage protection |
