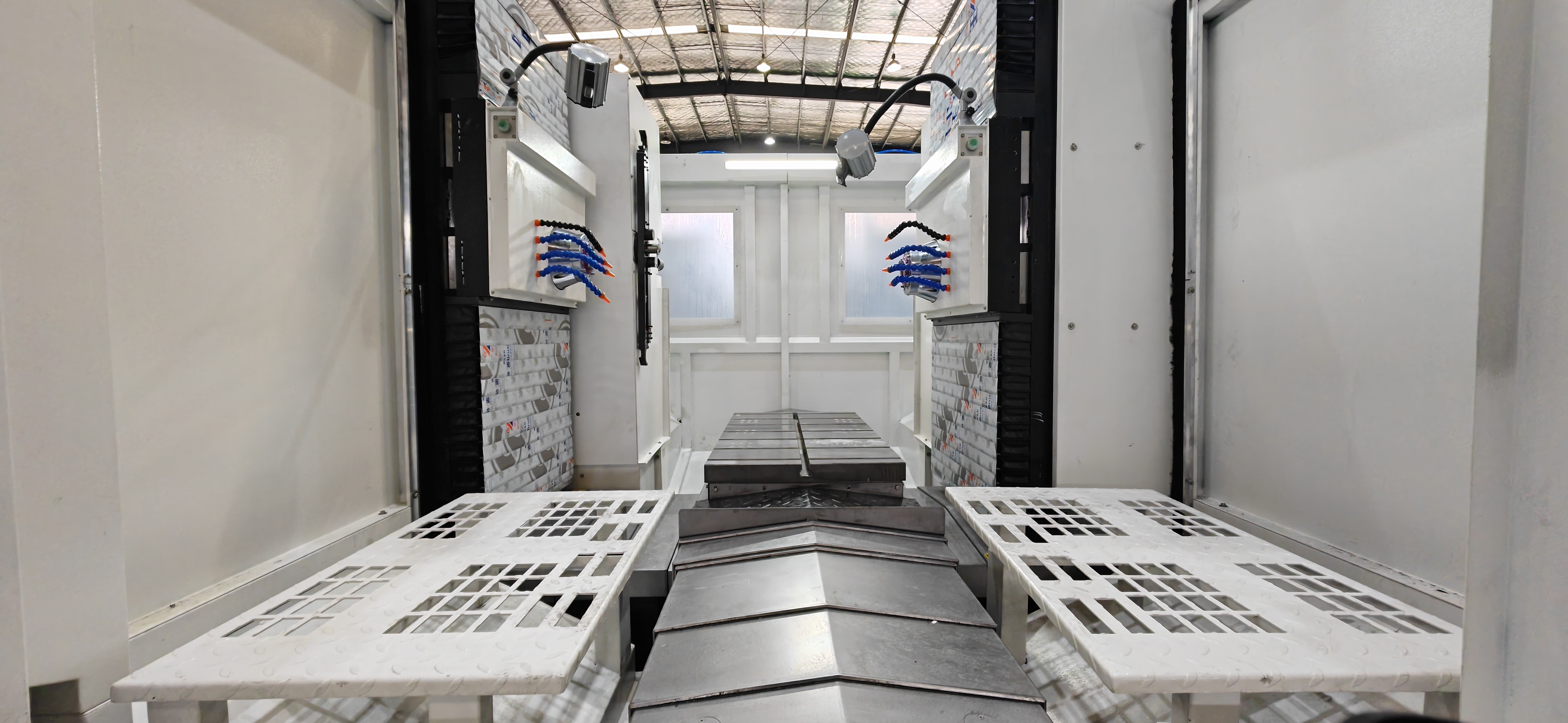

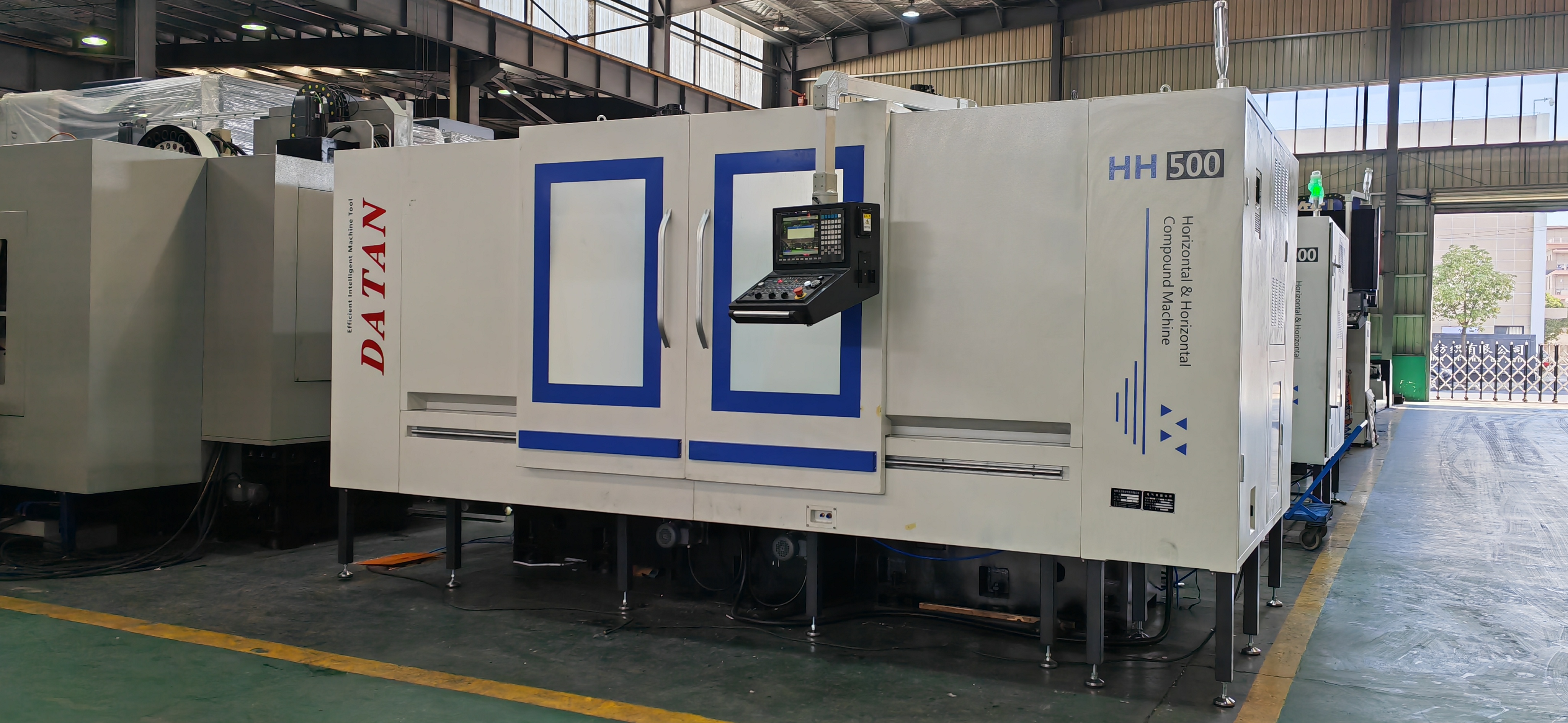

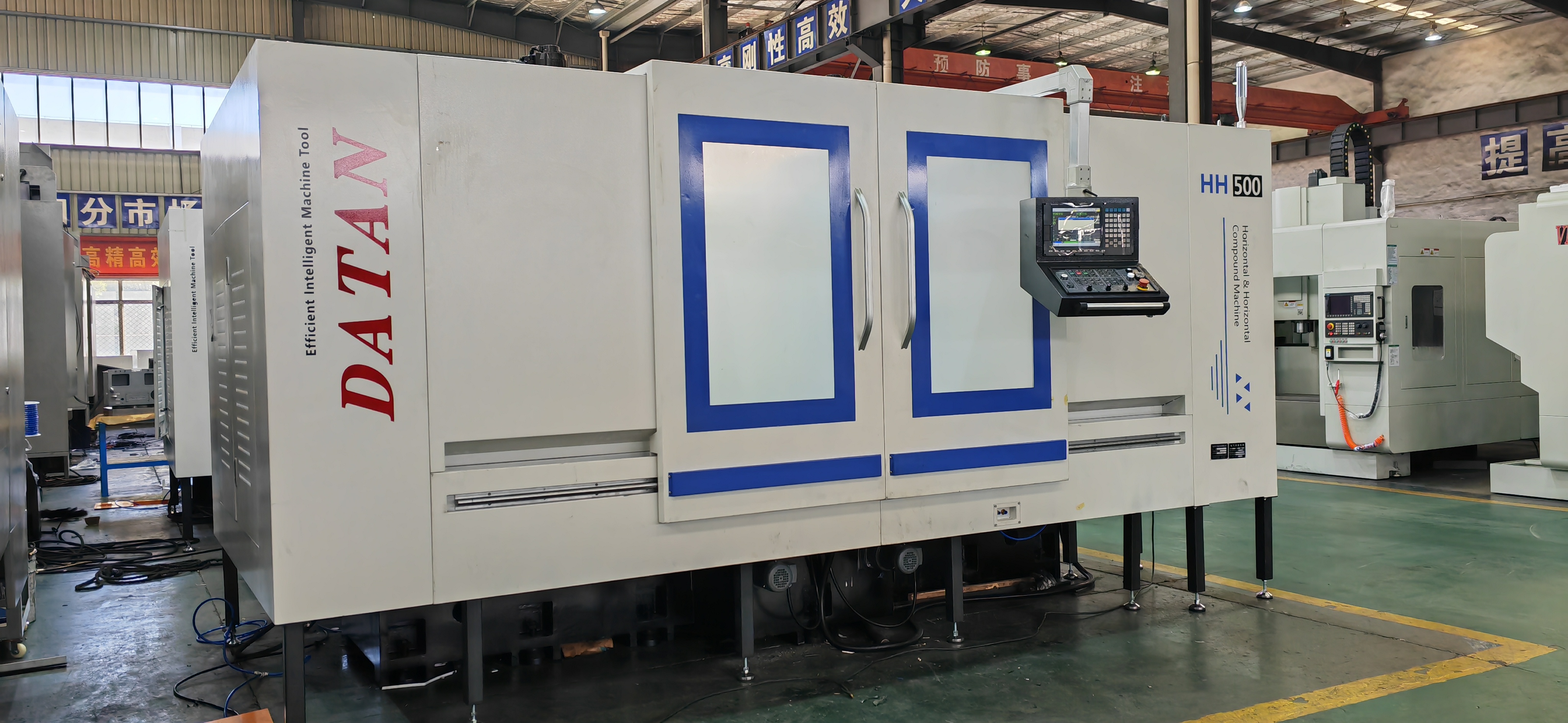

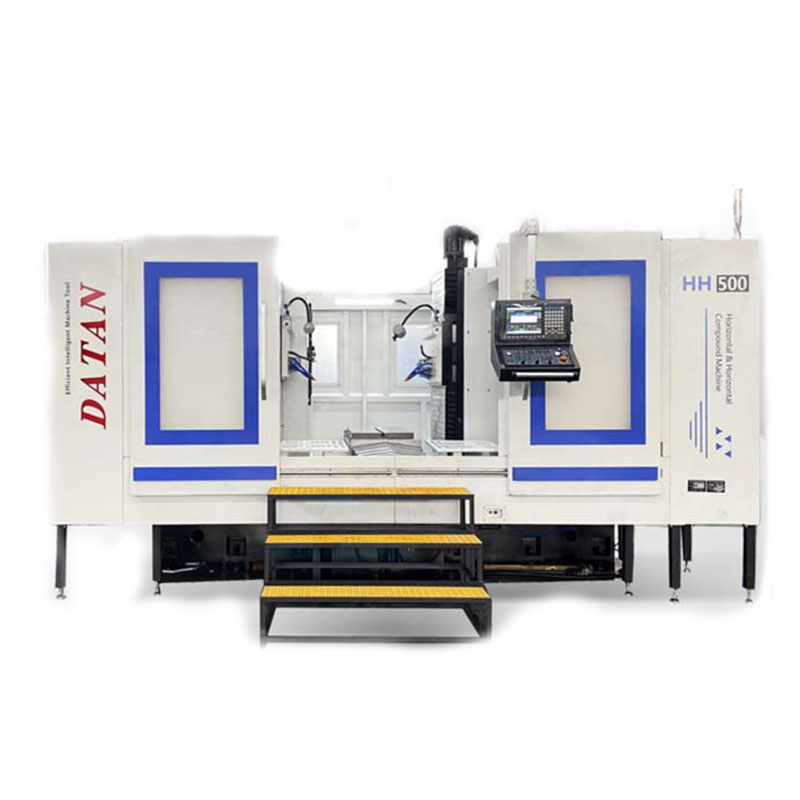

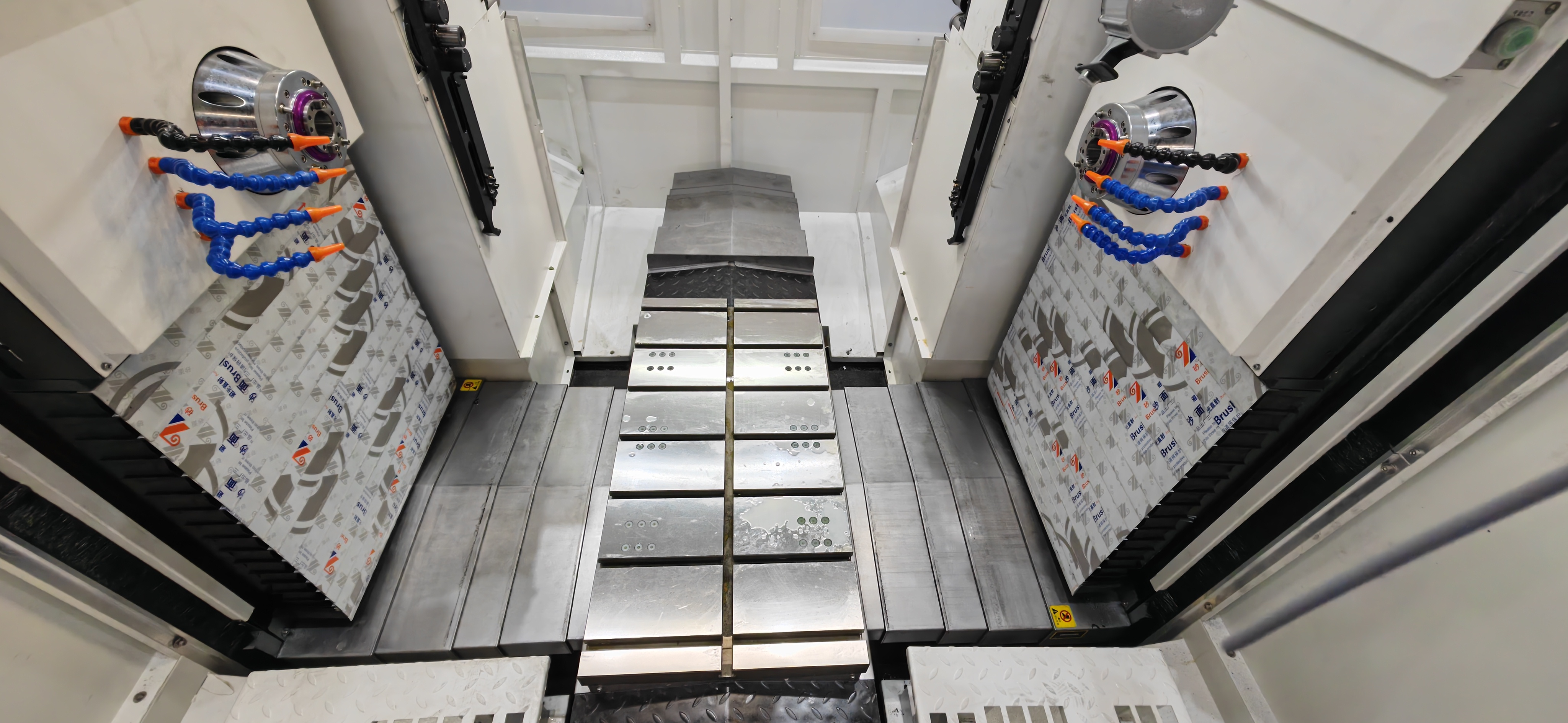

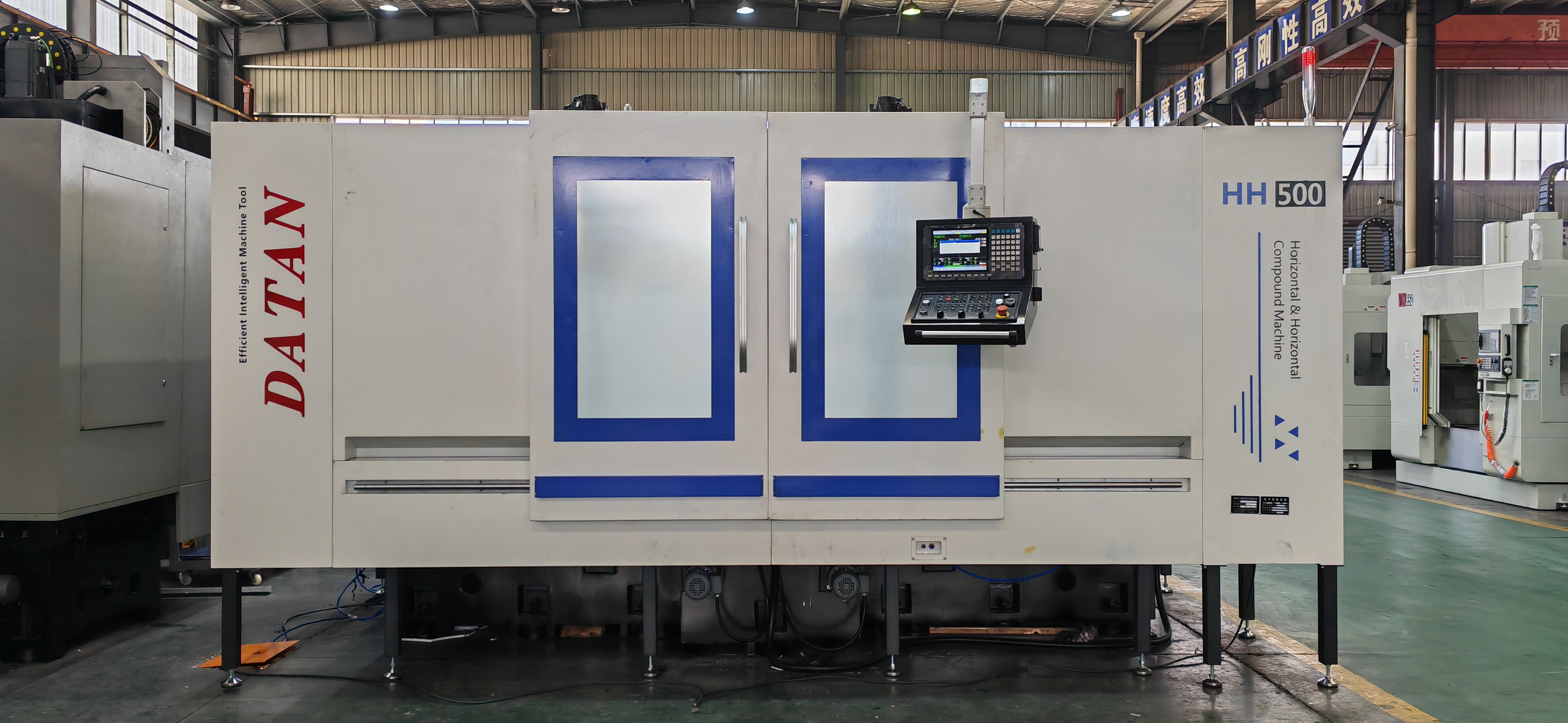

The HH Series Horizontal & Multiaxial Compound Machine is a high-performance and high-precision CNC machine tool designed for efficient processing of complex components. It features a moving-column double-head horizontal structure, where the left and right Z-axis and Y-axis move independently, and the X-axis worktable moves separately in the middle. Equipped with dual horizontal spindles sharing a single worktable, this design ensures high efficiency and stability. The machine is particularly suitable for symmetric machining of large, heavy components and workpieces with high coaxiality requirements. It is widely used in aerospace, automotive manufacturing, and energy equipment industries to meet high-precision processing demands.
Item | HH500 | HH630 | HH800 | HH1000 |
Worktable | ||||
Worktable Size (mm) | 1000×500 | 1200×800 | 1400×900 | 1700×1000 |
Maximum Load Capacity (Kg) | 800 | 1500 | 2500 | 4000 |
Travel | ||||
X-Axis Travel (mm) | 1000 | 1100 | 1300 | 1600 |
Y1/Y2-Axis Travel (mm) | 550 | 750 | 900 | 1000 |
Z1/Z2-Axis Travel (mm) | 500 | 900 | 1000 | 1000 |
Rapid Traverse Speed (m/min) | 24/24/24 | 24/12/24 | 24/12/24 | 24/12/24 |
Cutting Feed Speed (mm/min) | 1~10000 | 1~10000 | 1~10000 | 1~10000 |
Spindle | ||||
Spindle Nose to Worktable Distance (mm) | 150~700 | 150~900 | 200~1200 | 250~1250 |
Spindle Center to Worktable Center Distance (mm) | 150~650 | 200~1100 | 350~1250 | 350~1350 |
Distance Between Two Spindles (mm) | 300~1300 | 400~2200 | 700~2700 | 700~2700 |
Spindle Speed (r/min) | 8000 | 6000 | 6000 | 6000 |
Spindle Taper | BT40 | BT50 | BT50 | BT50 |
Spindle Motor Power (Kw) | 11 | 18.5 | 22 | 22 |
Spindle Specifications | BT40-150~8000 | BT50-190~6000 | BT50-190~6000 | BT50-190~6000 |
Spindle Drive Mode | Belt Drive | Belt Drive | Belt Drive | Belt Drive |
Precision | ||||
Positioning Accuracy (mm) | 0.012 | 0.012 | 0.012 | 0.012 |
Repeated Positioning Accuracy (mm) | 0.008 | 0.008 | 0.008 | 0.008 |
Tool System | ||||
Tool Magazine Capacity | 2×24T | 2×24T | 2×24T | 2×24T |
Tool Change Mode | Tool Arm Type | Tool Arm Type | Tool Arm Type | Tool Arm Type |
Tool Selection Mode | Random | Random | Random | Random |
Maximum Tool Weight (Kg) | 8 | 15 | 15 | 15 |
Maximum Tool Length (mm) | 300 | 350 | 350 | 350 |
Maximum Tool Diameter (No Adjacent Tool) (mm) | Ø75/120 | Ø110/200 | Ø110/200 | Ø110/200 |
Tool Taper | BT40 | BT50 | BT50 | BT50 |
Control System & Motors | ||||
CNC System | FANUC OI Mate1 | FANUC OI Mate1 | FANUC OI Mate1 | FANUC OI Mate1 |
Y1/Y2-Axis Servo Motor (Kw) | 3.0/3.0 | 3.0/3.0 | 3.0/3.0 | 3.0/3.0 |
X-Axis Servo Motor (Kw) | 3.0 | 3.0 | 3.0 | 3.0 |
Z1/Z2-Axis Servo Motor (Kw) | 3.0/3.0 | 3.0/3.0 | 3.0/3.0 | 3.0/3.0 |
Chip Removal System | ||||
Machine Layout | Double Spindle | Double Spindle | Double Spindle | Double Spindle |
Chip Conveyor Type | Chain Plate | Chain Plate | Chain Plate | Chain Plate |
Coolant Tank Capacity (L) | 400 | 400 | 800 | 800 |
Others | ||||
Air Pressure Requirement (Mpa) | 0.5 | 0.5 | 0.6 | 0.6 |
Total Power (KVA) | 45 | 52 | 70 | 70 |
Machine Weight (Kg) | 12000 | 20000 | 27000 | 30000 |
Machine Dimensions (L×W×H) (mm) | 4200×2550 | 7880×6750 | 8100×6800 | 9600×6900 |
Foundation Depth (mm) | 3100 | 3500 | 3800 | 3900 |
