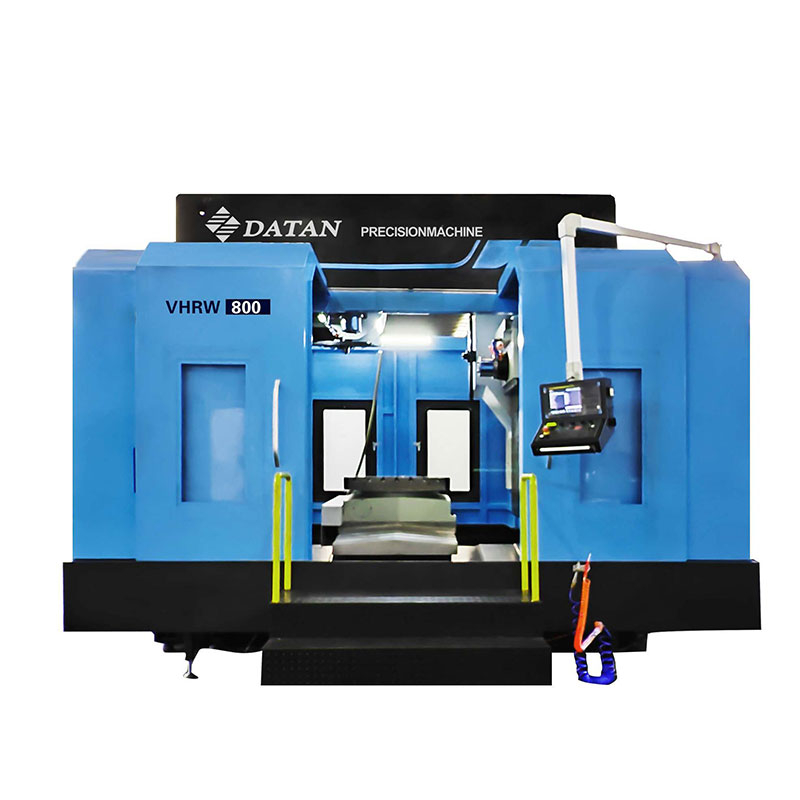

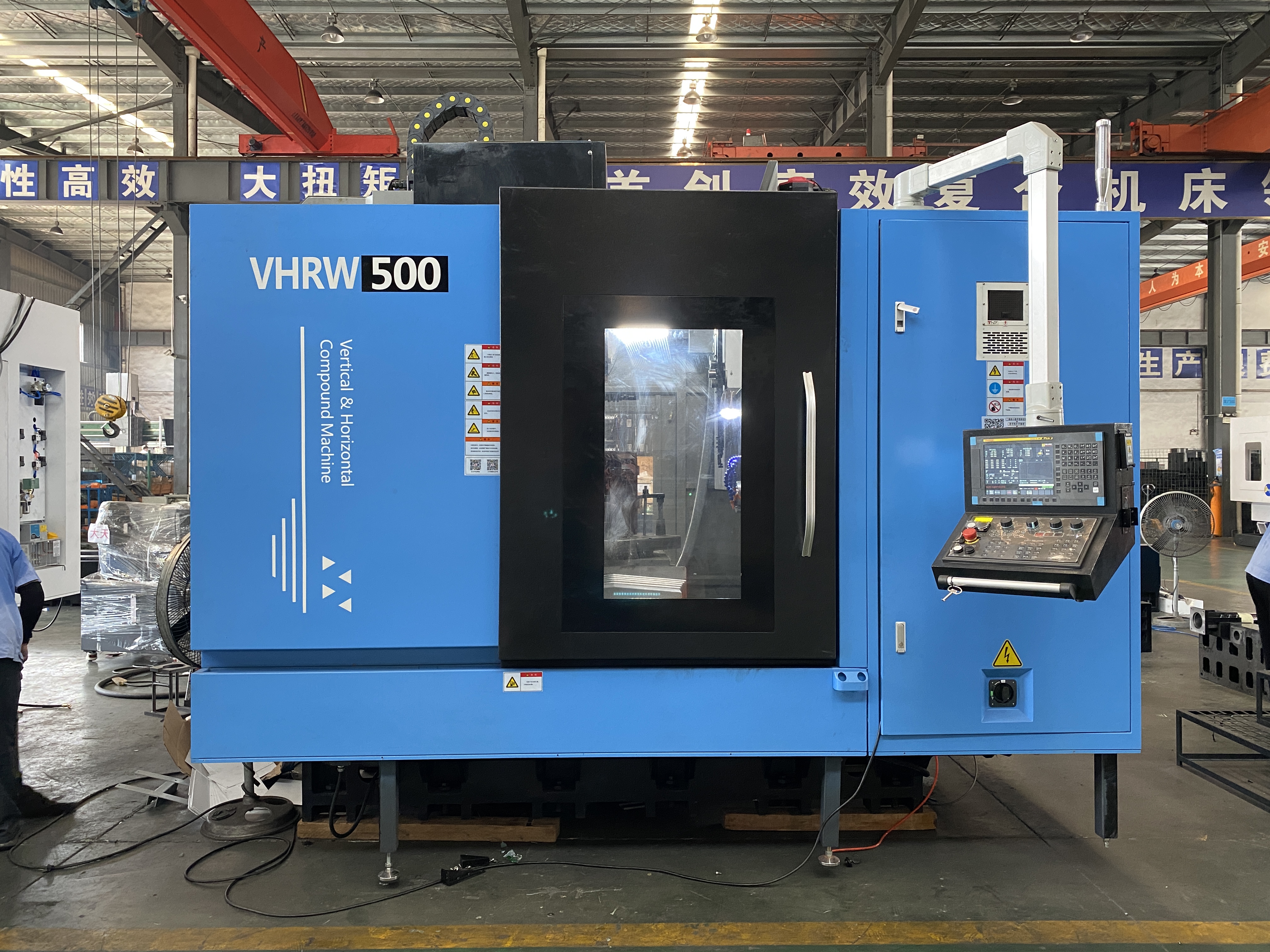

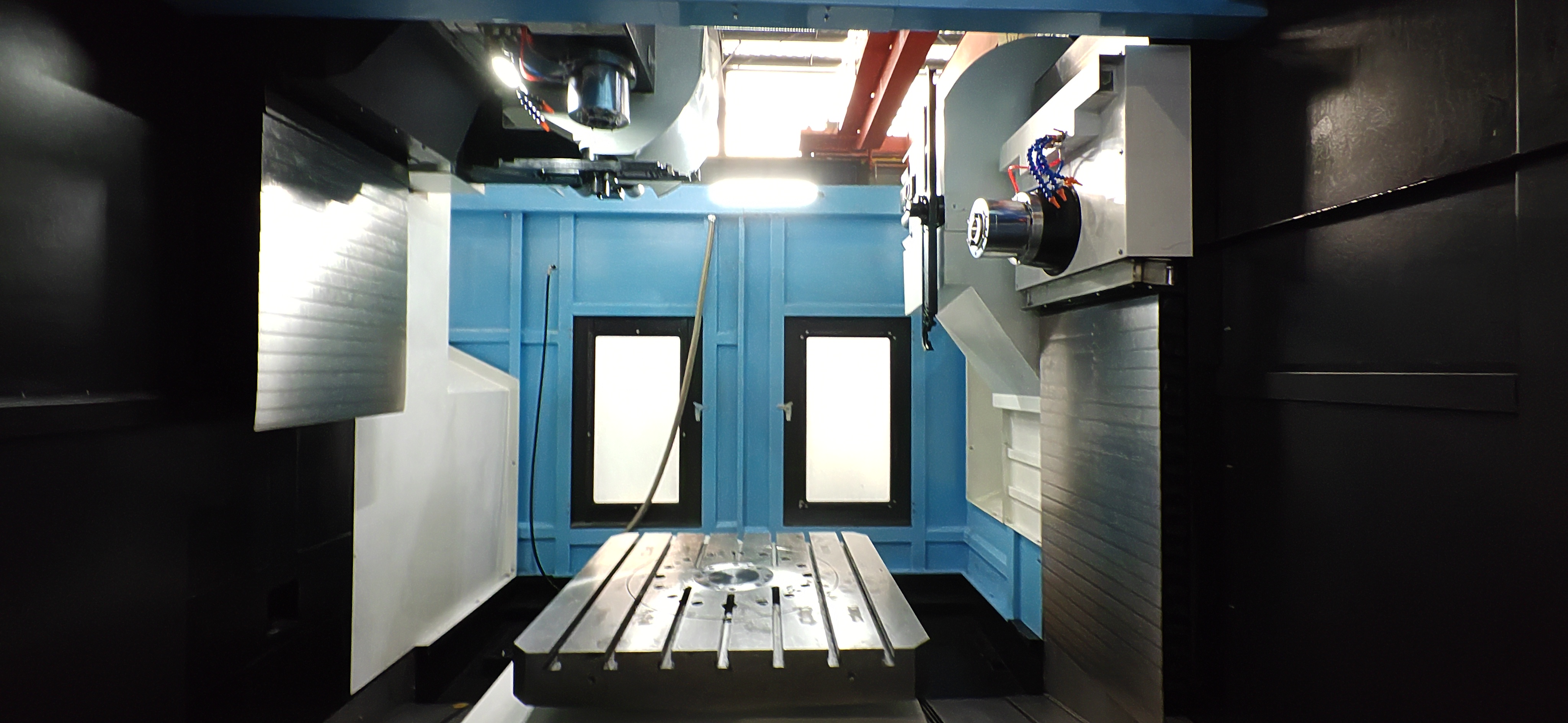

VHRW Series Vertical and Horizontal Five-Face Compound Machine Tools

VHRW Series Vertical and Horizontal Five-Face Compound Machine Tools

This machine combines horizontal and vertical machining centers to form a small flexible manufacturing cell for box and shaped parts machining. It can complete multi-face machining in one clamping, improve efficiency and precision, and save 40% of space. It supports a variety of system options and provides personalized customization, helping to upgrade intelligent manufacturing.

SKU:
Availability:

Quantity:



Inquire Add to Basket

Product Description

This machine adopts the combination of horizontal and vertical machining centers to form a small flexible manufacturing unit, which is suitable for high-precision machining of box and shaped parts. It can complete multi-face flexible machining in one clamping, reduce overturning error, improve machining accuracy, and save 40% of floor space at the same time. It has the advantages of high efficiency (reducing clamping time), high precision (eliminating positioning error) and high flexibility (adapting to multi-species production), and can be equipped with Fanuc, Mitsubishi and Siemens systems, as well as scale feedback, tool center cooling, ATC robotic tool changer, automatic measurement of the workpiece and other functions, providing customers with cost-effective intelligent manufacturing solutions.

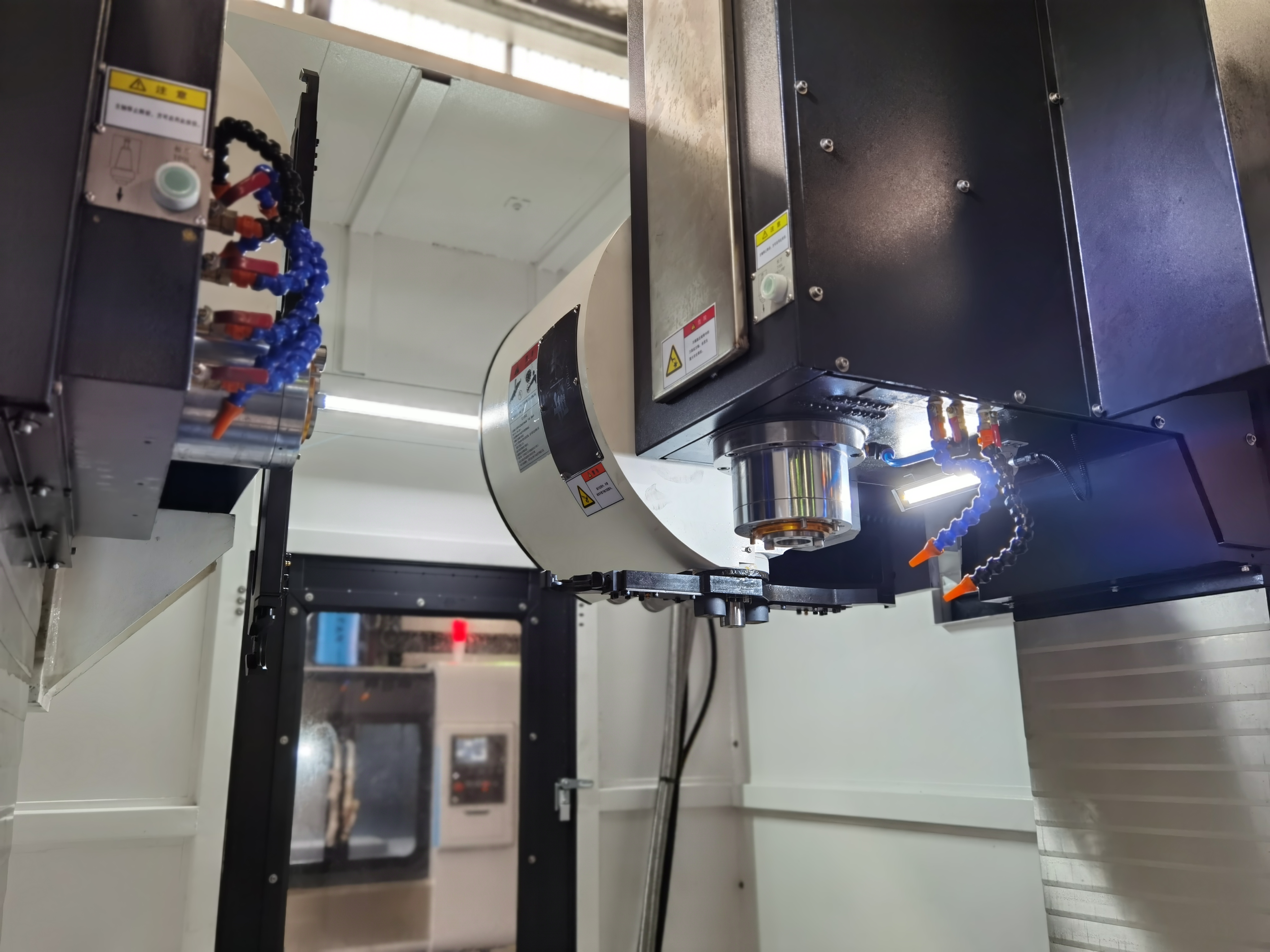

Vertical Spindle

Parameter	Unit	VHRW500	VHRW630	VHRW630Pro	VHRW800	VHRW800Pro	VHRW1000	VHRW1200
X-axis Travel (Left-Right)	mm	850	1100	1200±150	1200±150	1300±150	1300±150	1600
Y-axis Travel (Front-Back)	mm	800	1100	1100	1100	1300	1300	1300
Z-axis Travel (Up-Down)	mm	600	800	800	800	800	1000	1000
Distance from Spindle Center to Worktable	mm	100-850	100-1000	100-1100	100-1100	150-1300	150-1300	150-1750
Distance from Spindle Nose to Worktable Surface	mm	425/-245	500/-150	500/-150	650/-150	650/-190	0/-1400	0/-1400
Spindle Speed	rpm	8000	8000	8000	8000	8000	8000	8000
Spindle Power	kW	11	11	11	11	18.5	18.5	18.5
G00 Rapid Feed Rate (X1/Y1/Z1 Axis)	m/min	24/24/24	24/24/24	24/24/24	20/20/20	20/20/20	20/20/20	20/20/20
G01 Cutting Feed Rate (X1/Y1/Z1 Axis)	mm/min	10-8000	10-8000	10-8000	10-8000	10-8000	10-8000	10-8000
Tool Magazine	pcs	BT40-150-8000	BT40-150-8000	BT40-150-8000	BT40-150-8000	BT50-190-6000	BT50-190-6000	BT50-190-6000

Horizontal Spindle

Parameter	Unit	VHRW500	VHRW630	VHRW630Pro	VHRW800	VHRW800Pro	VHRW1000	VHRW1200
X-axis Travel (Left-Right)	mm	850	1100	1200±150	1200±150	1300±150	1300±150	1600
Y-axis Travel (Up-Down)	mm	550	650	800	800	800	1000	1000
Z-axis Travel (Front-Back)	mm	850	1100	1100	1100	1300	1300	1300
Distance from Spindle Center to Worktable	mm	200-1200	200-1200	200-1300	200-1300	300-1400	300-1400	350-2100
Distance from Spindle Nose to Worktable Surface	mm	100-1055	100-750	100-750	100-900	100-900	0/-1400	0/-1400
Spindle Speed	rpm	8000	8000	8000	8000	8000	8000	8000
Spindle Power	kW	11	11	15	15	22	22	22
G00 Rapid Feed Rate (X2/Y2/Z2 Axis)	m/min	24/24/24	24/24/24	24/24/24	20/20/20	20/20/20	20/20/20	20/20/20
G01 Cutting Feed Rate (X2/Y2/Z2 Axis)	mm/min	10-8000	10-8000	10-8000	10-8000	10-8000	10-8000	10-8000
Tool Magazine	pcs	BT40-150-8000	BT40-150-8000	BT40-150-8000	BT50-190-6000	BT50-190-6000	BT50-190-6000	BT50-190-6000
Worktable Size	mm	500×500	630×630	630×630	800×800	800×800	1000×1000	1200×1200

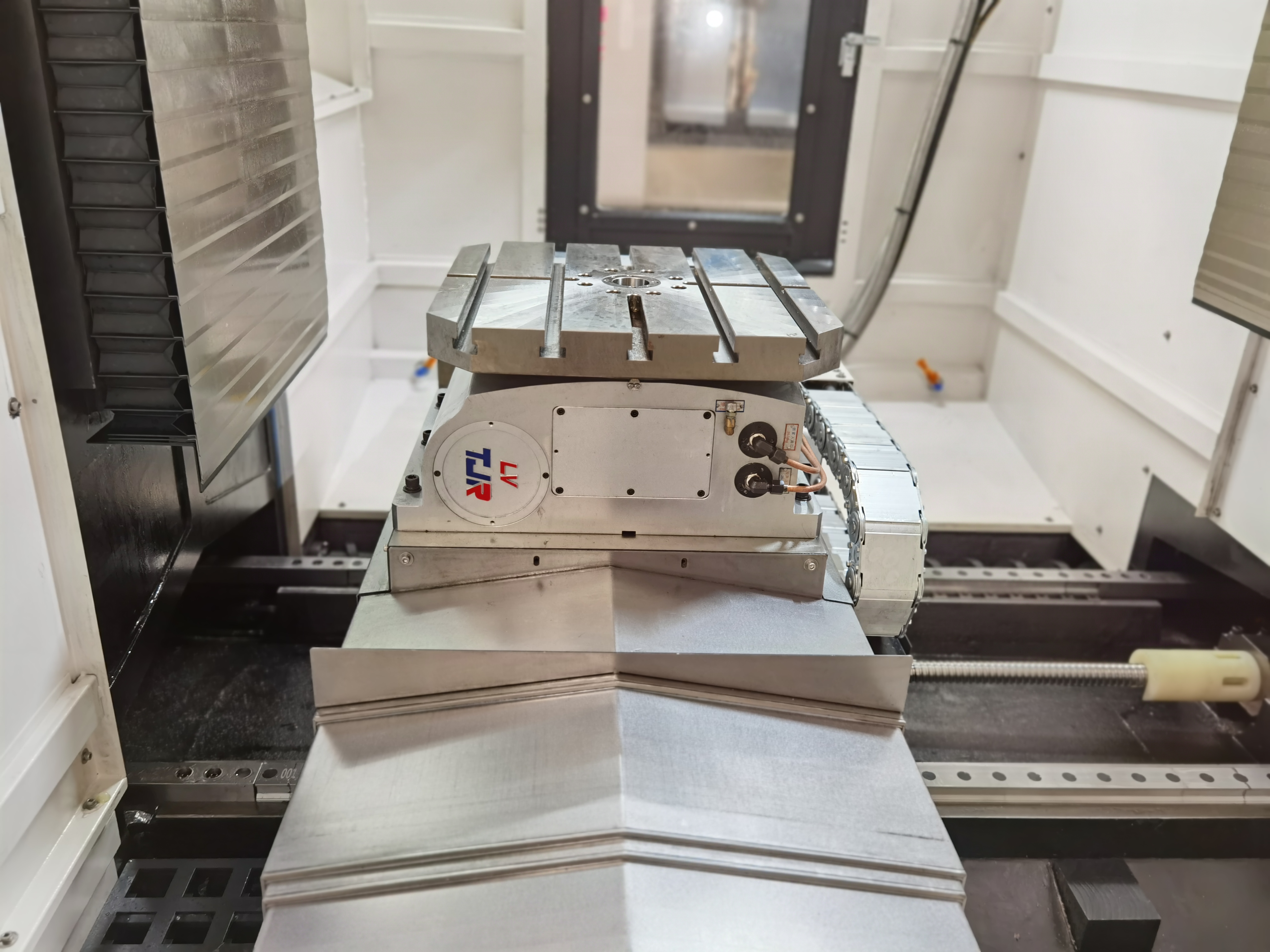

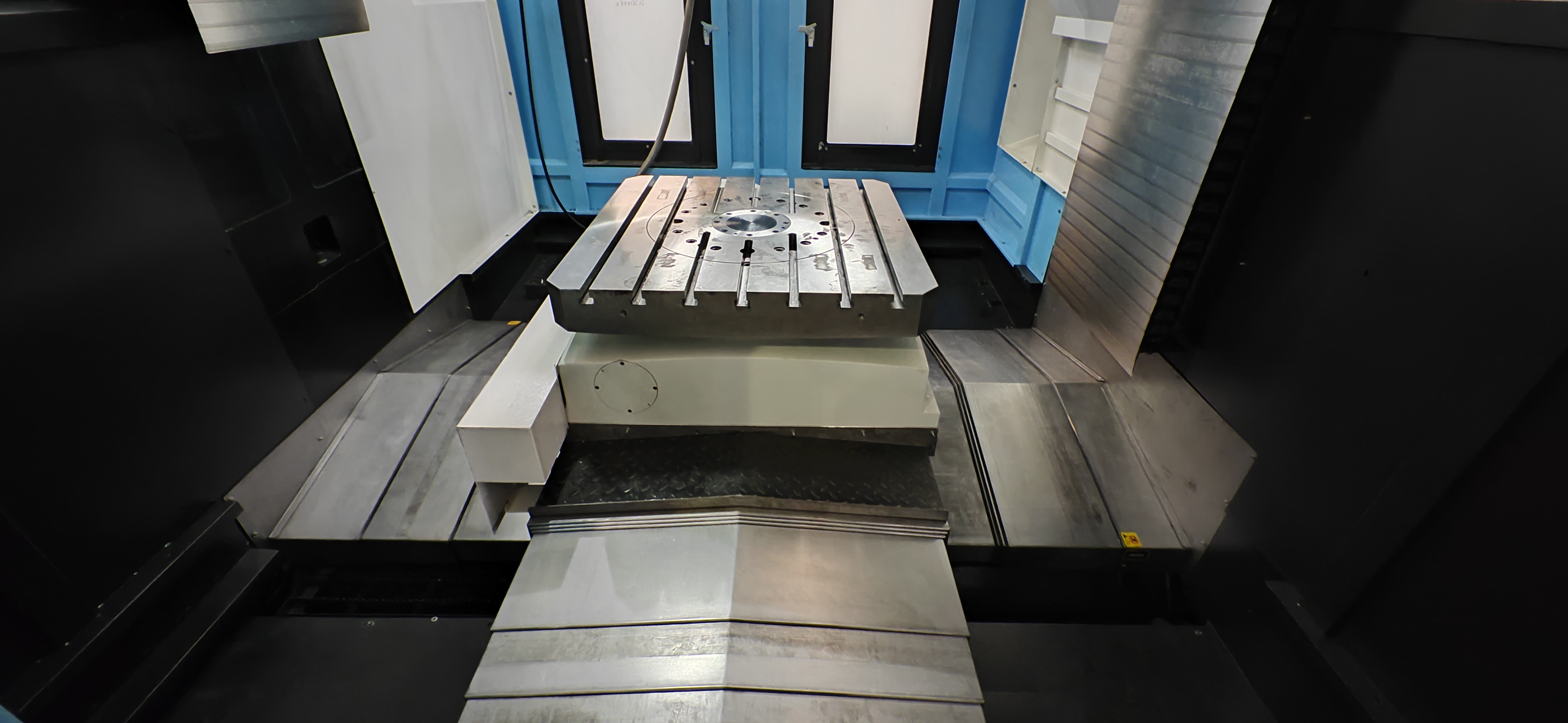

Rotary Worktable

Parameter	Unit	VHRW500	VHRW630	VHRW630Pro	VHRW800	VHRW800Pro	VHRW1000	VHRW1200
Worktable Size	mm	500×500	630×630	630×630	800×800	800×800	1000×1000	1200×1200
Maximum Load Capacity	kg	1500	2500	2500	2500/4000 (optional)	2500/4000 (optional)	5000	5000
Worktable Rotation Angle	°	36×1°	36×1°	36×1°	36×1°	36×1°	36×1°	36×1°
Maximum Working Space	mm	1200	1500	1900	1900	1900	2100	2800

Control System

Parameter	Unit	VHRW500	VHRW630	VHRW630Pro	VHRW800	VHRW800Pro	VHRW1000	VHRW1200
Drive System	-	Servo Motor	Servo Motor	Servo Motor	Servo Motor	Servo Motor	New 220MA	New 220MA
Spindle Motor Power	kW	3.0/3.0/3.0/3.0	3.0/3.0/3.0/3.0	3.0/3.0/3.0/3.0	3.0/3.0/3.0/3.0	5.5/5.5/5.5/5.5	5.5/5.5/5.5/5.5	5.5/5.5/5.5/5.5
Power Supply	KVA	6	6	6	6	16T/17.5T (Optional)	21T/23T (Optional)	22T/24T (Optional)
Air Pressure Requirement	kg/cm²	6	6	6	6	6	6	6
Overall Dimensions	mm	3900×3600×2900	4300×3600×3200	5700×4400×4500	5700×4400×4500	6200×5000×5400	6200×5000×5400	7600×5100×5600
